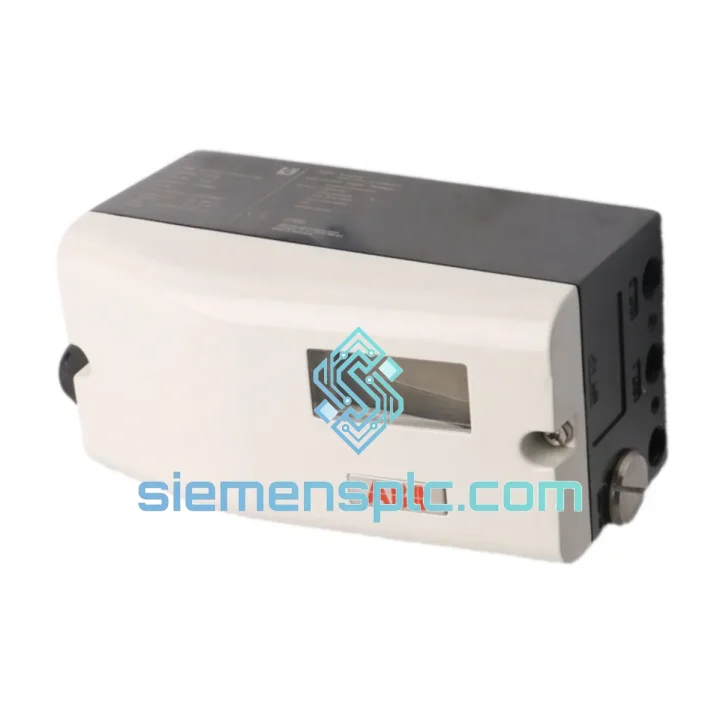

ABB V18345-1010521001 Electro-Pneumatic Positioner – TZIDC Series

ABB V18345-1010521001 — Single-Acting Electro-Pneumatic Positioner in Process Control Loops

The ABB V18345-1010521001 is a 2-wire, 4–20 mA electro-pneumatic positioner belonging to the TZIDC intelligent positioner platform. Its primary function within a control loop is to close the position feedback gap between the DCS/PLC analog output card and the pneumatic actuator. Without a positioner, actuator hysteresis, friction, and supply pressure variation introduce steady-state offset errors that degrade loop performance. The V18345-1010521001 eliminates this offset by continuously comparing the commanded setpoint against the measured stem position and modulating supply air through a piezo-electric pilot valve to drive the actuator to within ≤ 0.5% of the target position.

This unit is configured for single-acting (spring-return) pneumatic actuators and mounts directly per NAMUR IEC 60534-6 and VDI/VDE 3845 standards, eliminating custom bracket fabrication in most installations. The integrated Hall-effect position sensor provides non-contact stem measurement, removing the mechanical wear associated with potentiometer-based feedback found in earlier positioner generations. HART 5/6/7 communication is embedded as standard, enabling bidirectional digital access over the existing 4–20 mA pair without additional wiring infrastructure.

In oil and gas wellhead control, chemical reactor feed loops, and power plant turbine bypass applications, the V18345-1010521001 delivers the positioning repeatability and diagnostic transparency required for both regulatory compliance and process efficiency. Its ATEX II 2G Ex ia IIC T6 intrinsic safety certification permits installation in Zone 1 hazardous areas without additional barriers in many configurations, subject to system-level SIL assessment.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The V18345-1010521001 is built around a closed-loop position control architecture implemented in a low-power embedded microprocessor. The control cycle begins when the 4–20 mA input current is sampled by a precision current-to-voltage converter and digitized by the internal ADC. The resulting setpoint value is compared against the Hall-effect sensor output, which encodes absolute stem position as a magnetic field angle — a measurement method immune to vibration-induced contact bounce and insensitive to stem surface contamination.

The piezo-electric pilot valve is the critical pneumatic actuating element. Unlike conventional solenoid-based pilot valves that draw continuous holding current, the piezo element requires current only during state transitions, reducing steady-state power consumption to near zero and eliminating the thermal dissipation that degrades solenoid coil insulation over time. This architecture is directly responsible for the ≤ 0.07 Nm³/h steady-state air consumption figure — a 60–70% reduction compared to nozzle-flapper designs of equivalent accuracy class.

EMC performance is addressed at the hardware level through a multi-layer PCB design with dedicated ground planes separating the analog signal conditioning section from the digital processing core. The 4–20 mA input circuit incorporates transient voltage suppression (TVS) diodes rated for IEC 61000-4-5 surge immunity at ±1 kV (line-to-earth), protecting the input stage against inductive load switching transients common in motor control environments. The HART modem circuit uses a bandpass filter centered at 1,200/2,200 Hz (Bell 202 standard) to extract digital frames from the analog loop without disturbing the DC setpoint signal.

The EXPERT+ auto-calibration routine executes a controlled actuator stroke sequence to characterize the mechanical travel endpoints, spring rate, and friction profile. This data is stored in non-volatile EEPROM and used by the adaptive control algorithm to compensate for actuator-specific non-linearities, achieving the ≤ 0.5% accuracy specification across the full stroke range without manual span or zero adjustment. The calibration data persists through power cycles and can be retrieved via HART for maintenance records.

For SIL-capable installations, the positioner’s internal diagnostics continuously monitor supply pressure, output pressure differential, and position sensor signal integrity. Fault conditions are reported via HART status bytes and, optionally, through a discrete binary output (where fitted), enabling the safety system to initiate a controlled shutdown without relying on the positioner’s own fail-safe spring action alone.

System Integration Benefits

• Direct NAMUR mounting eliminates adapter brackets: The V18345-1010521001 bolts directly to IEC 60534-6 and VDI/VDE 3845 compliant actuator yokes, reducing installation time and eliminating the mechanical play introduced by custom fabricated linkages.
• Non-contact position sensing extends service intervals: The Hall-effect sensor has no mechanical contact with the actuator stem, removing the primary wear mechanism of potentiometer-based positioners. Mean time between maintenance (MTBM) is extended significantly in high-cycle applications such as surge control valves.
• HART integration preserves existing wiring infrastructure: Digital communication is superimposed on the existing 4–20 mA pair. No additional cable runs are required to enable remote configuration, diagnostics, or partial stroke testing from the control room.
• Partial stroke testing (PST) supports SIL compliance: The positioner can execute a configurable partial stroke test on demand or on schedule via HART command, verifying actuator mechanical integrity without taking the valve out of service — a requirement for IEC 61511 proof test intervals in safety instrumented systems.
• Adaptive friction compensation maintains accuracy over valve life: The EXPERT+ algorithm continuously updates its friction model based on observed actuator behavior, preventing the gradual accuracy degradation that occurs as packing and stem seals wear.
• Wide ambient temperature range supports outdoor and arctic installations: The −40°C lower limit is achieved through component selection and housing design without auxiliary heating, reducing installation cost in cold-climate facilities.
• IP66 / NEMA 4X enclosure withstands washdown and weather exposure: The polyamide housing with stainless steel hardware resists corrosion in coastal, offshore, and chemical plant environments where salt spray and process fluid splashing are routine.
• ATEX Zone 1 certification reduces barrier requirements: The Ex ia IIC T6 intrinsic safety rating permits direct installation in the most demanding gas group environments (hydrogen, acetylene) without external Zener barriers in many system configurations, simplifying the hazardous area wiring design.
• Low air consumption reduces compressed air operating costs: At ≤ 0.07 Nm³/h steady-state, a plant with 200 positioners of this type consumes approximately 14 Nm³/h less compressed air than an equivalent installation using nozzle-flapper positioners at 0.4 Nm³/h each — a measurable reduction in compressor load and energy cost.
• ABB Asset Vision Basic compatibility enables predictive maintenance: The positioner communicates valve signature data, travel accumulation counts, and diagnostic alerts to ABB’s asset management software, enabling condition-based maintenance scheduling rather than fixed-interval overhauls.

Quality Assurance & Global Logistics

Every V18345-1010521001 unit supplied by siemensplc.com is sourced through verified ABB-authorized distribution channels. Units are new-in-box (NIB) in original ABB packaging with anti-static protection and desiccant. Serial number traceability is maintained, and factory test certificates are available upon request for quality-critical installations.

Pre-shipment inspection covers visual integrity of the housing, cable entry, and pneumatic ports; verification of the nameplate data against the purchase order; and confirmation of ATEX certification label completeness. Documentation packages including the EU Declaration of Conformity, ATEX certificate, and calibration sheet are prepared and dispatched with the unit.

Shipments originate from our warehouse in Xiamen, China. Standard export packaging is used for all international orders, with foam-lined cartons providing mechanical protection during air freight handling. Typical transit times are 3–5 business days to Southeast Asia, 5–7 business days to Europe and the Middle East, and 5–8 business days to North America via DHL Express or FedEx International Priority. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include a tracking number issued within 24 hours of dispatch. A 12-month warranty covers manufacturing defects from the date of shipment.
