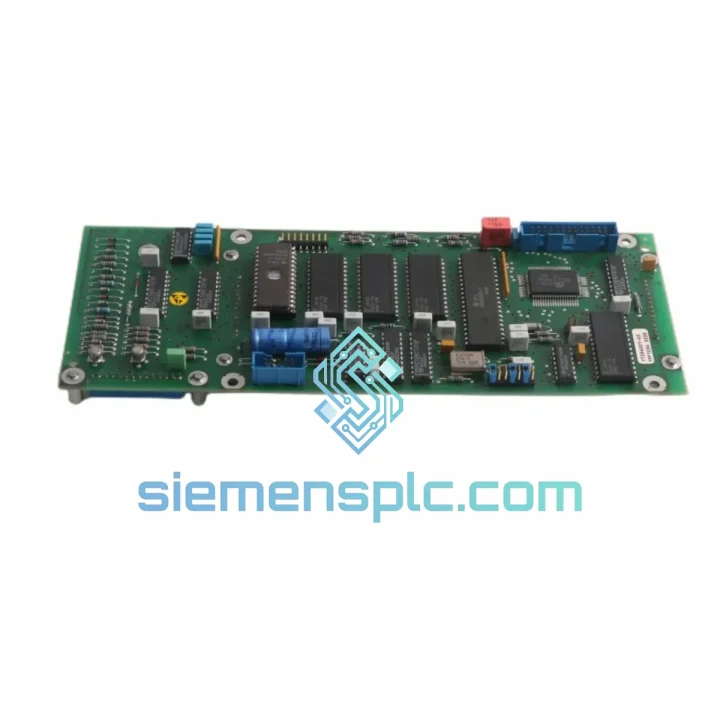

ABB YPP109A Digital Input Module

ABB YPP109A Digital Input Module — Stop the Clock on Your Downtime, Ship Today

Your IRC5 controller just threw a fault. The line is cold. Every minute of unplanned downtime is burning through your OEE targets and your maintenance budget simultaneously. You already know the root cause — the YPP109A digital input board has failed, and without it, the entire robot cell is blind to field signals. You don’t need a lecture on what this module does. You need one in your hands, tested, and on a plane out of Xiamen before end of business today.

We stock the ABB YPP109A. It is on the shelf right now. We have shipped this exact part to automotive body shops in Germany, petrochemical plants in Saudi Arabia, and semiconductor fabs in Taiwan — all on emergency timelines. This page exists because downtime is not a theoretical problem.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of YPP109A swap-outs across IRC5 installations, here are the failure patterns and replacement pitfalls that actually matter on the floor:

Common Failure Signatures:

• Intermittent DI channel reads — The most frequent failure mode. Optical isolators degrade over time, especially in high-cycle environments. ABB RobotWare will log sporadic “DI signal lost” events before the board fails completely. If you are seeing these, the YPP109A is the first suspect.
• All DI channels dead simultaneously — Usually points to a blown onboard fuse or a backplane power rail issue. Before condemning the board, verify 24 VDC is present at the backplane connector pins. If power is confirmed and all channels are dead, the board is gone.
• Fault code 50024 / 50025 (I/O Unit Communication Error) — Can be triggered by a failing YPP109A causing the parent DSQC I/O unit to drop off the DeviceNet or EtherNet/IP bus. Do not chase the bus — replace the input board first.
• Connector pin oxidation — Common in humid or coastal environments. Inspect the backplane edge connector under magnification before seating the replacement. Clean with isopropyl alcohol and a fine brush if oxidation is visible.

Replacement Procedure — Key Steps:

• Power down the IRC5 controller and lock out / tag out per your site LOTO procedure. The YPP109A is not hot-swappable.
• Note the physical slot position of the failed board within the DSQC I/O unit before removal. The replacement must seat in the identical slot — the IRC5 system uses slot-based I/O addressing, not auto-discovery.
• If your system uses a non-default I/O configuration (custom signal mapping in RobotStudio), verify the signal assignments are backed up before the swap. The replacement board itself carries no configuration — all mapping lives in the controller’s system parameters.
• After seating the new board, power up and navigate to the FlexPendant I/O panel. Confirm all expected DI channels are visible and reading correctly before releasing the cell to production.
• No firmware flashing is required for the YPP109A. It is a passive input sub-board — the DSQC parent unit handles all firmware-level communication.
• If the parent DSQC unit was also damaged (e.g., from a field-side voltage spike), replacing only the YPP109A may not resolve the fault. Test the DSQC unit independently before closing the work order.

Reliability in Harsh Conditions

The YPP109A was not designed for a climate-controlled server room. It was built to operate inside IRC5 controller cabinets on automotive stamping lines, foundry floors, and offshore platform control rooms — environments where temperature swings, vibration, and airborne contaminants are daily realities.

The optical isolation architecture is the core of its durability. By breaking the electrical path between field wiring and the controller logic, the board survives the kind of ground loop events and inductive transients that destroy non-isolated input circuits. In practice, this means a welding cell with poor grounding discipline will kill the field wiring before it kills the YPP109A.

Vibration tolerance is achieved through conformal coating on production boards and through the mechanical retention of the backplane edge connector — there are no ribbon cables or flying leads to fatigue and fracture. Units that have been in service for 10+ years in high-vibration press shops routinely test functional when removed for scheduled maintenance.

Every unit we ship has been inspected for PCB delamination, cracked solder joints at high-stress component locations, and connector wear. Refurbished units are bench-tested under simulated 24 VDC field conditions across all input channels before packaging. We do not ship boards that have not been verified functional — a dead board in your hands during a shutdown is worse than no board at all.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the country’s primary export hubs with direct access to DHL, FedEx, and UPS international gateway facilities. This is not a coincidence. It is infrastructure built specifically to support emergency industrial parts shipments to every time zone.

• Order cutoff: 16:00 CST — Orders confirmed before 4 PM China Standard Time ship same business day.
• DHL Express Worldwide — Typical transit: 1–3 business days to Europe, Middle East, and Southeast Asia. 2–4 business days to the Americas.
• FedEx International Priority — Available for destinations where FedEx has a service advantage. We select the carrier with the fastest confirmed transit for your specific destination at time of booking.
• Export documentation — Commercial invoice, packing list, and Certificate of Origin are prepared for every international shipment. HS code 8537.10 is pre-declared for customs clearance. We have zero tolerance for documentation errors that cause customs holds.
• Tracking — AWB number sent to your email within 2 hours of dispatch. We monitor shipments actively and flag any customs or transit exceptions proactively.
• Emergency freight — For situations where standard express is not fast enough, we can arrange charter courier or hand-carry service. Contact us directly to discuss.

We have shipped to Germany, the United States, Australia, India, Brazil, the UAE, South Korea, and over 40 other countries. If your country has a DHL or FedEx service point, we can reach you.
