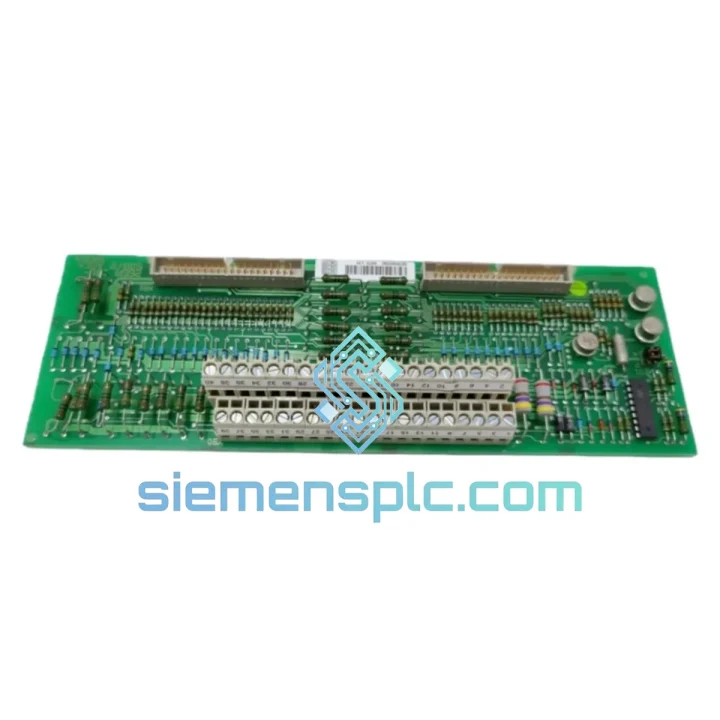

ABB YPQ108A YT204001-DT DCS I/O Board

ABB YPQ108A YT204001-DT Circuit I/O Board — Stop the Clock on Your Downtime

Every minute your Advant OCS or MOD 300 DCS sits idle, the losses compound. A failed YPQ108A board doesn’t just interrupt a loop — it can cascade into a full process shutdown, missed production targets, and contractual penalties. We stock the ABB YPQ108A (YT204001-DT) precisely for this scenario: verified, packaged, and ready to leave Xiamen within 24 hours of your order confirmation. No waiting on OEM lead times. No sourcing uncertainty. Just the part you need, moving toward your plant floor at DHL or FedEx express velocity.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The YPQ108A sits at the intersection of field wiring and the DCS backplane. When it fails, symptoms are rarely subtle — you’ll typically see one or more of the following before the board gives out completely:

• Fault Code F1xx / I/O Bus Timeout: The controller loses handshake with the I/O board. Check the backplane connector pins for oxidation before condemning the board — a corroded edge connector mimics a dead YPQ108A perfectly.
• Intermittent Signal Drop on Analog Channels: Usually traced to a failed op-amp stage on the signal conditioning section of the PCB. If cycling power temporarily restores the channel, the board is degrading and replacement is imminent.
• All Channels Offline Simultaneously: Points to a power rail failure on the board itself (typically the +5 V or ±15 V internal regulators) or a blown protection fuse on the backplane supply line. Measure at the board’s power input pins before swapping.
• Controller Reports “Module Not Found” After Rack Power Cycle: The board’s EEPROM address register may have corrupted. In MOD 300 systems, the module address is set via onboard DIP switches (SW1, positions 1–4). Verify the switch setting matches the slot address defined in your hardware configuration database (HCD) before inserting the replacement.

Replacement Procedure — Field Checklist:

• ☐ Place the controller in MANUAL mode and notify the control room before pulling any I/O card.
• ☐ Document the DIP switch positions on the failed board with a photo — replicate exactly on the new YPQ108A.
• ☐ Ground yourself with an ESD wrist strap. The YPQ108A’s signal conditioning ICs are sensitive to electrostatic discharge.
• ☐ Seat the replacement card firmly until the ejector latches click. A half-seated card will generate the same “Module Not Found” fault as a dead board.
• ☐ Power up the rack and observe the module’s LED status indicators: steady green = healthy; flashing amber = configuration mismatch; solid red = hardware fault on the new card (rare but possible with damaged surplus stock — this is why sourcing matters).
• ☐ Perform a channel-by-channel loop check against your I/O schedule before returning the loop to AUTO.
• ☐ Firmware: The YPQ108A does not carry user-upgradeable firmware in standard Advant configurations. No firmware flash is required on replacement. If your system runs a non-standard ABB software revision, confirm with your DCS vendor before insertion.

Reliability in Harsh Conditions

The ABB Advant platform was engineered for continuous, unattended operation in environments that would destroy consumer-grade electronics within weeks. The YPQ108A inherits that design philosophy at the board level. The PCB substrate is FR4 with conformal coating options for high-humidity environments — relevant for coastal petrochemical plants and tropical process facilities where condensation is a daily reality. Component selection prioritizes industrial-grade temperature ratings: capacitors rated to 105 °C, resistors with ±1 % tolerance across the full operating range, and connectors with gold-plated contacts to resist the sulfur compounds common in refinery atmospheres.

Vibration tolerance is addressed through through-hole component mounting on critical signal paths — surface-mount technology alone is insufficient for applications near rotating machinery. The board’s mechanical design allows it to withstand the continuous low-frequency vibration profiles typical of compressor halls and pump stations without solder joint fatigue. Units sourced from our Xiamen warehouse are inspected for micro-crack formation on solder joints — a failure mode that only appears under magnification but causes intermittent faults that are notoriously difficult to diagnose in the field.

EMC performance is maintained through the board’s internal ground plane architecture and shielded signal traces, which suppress the common-mode noise injected by variable frequency drives and high-current motor starters sharing the same cable trays as field instrument wiring. If your plant has recently added VFD-driven loads and you’re seeing increased I/O noise, the YPQ108A’s signal conditioning stage is your first line of defense — and a degraded board will lose that fight.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian, China — a major international cargo gateway with direct DHL Express and FedEx International Priority connections to over 220 countries and territories. Here’s what the fulfillment timeline looks like from the moment your order is confirmed:

• Hour 0–4: Order verification, stock pull, and ESD-safe packaging. The YPQ108A is wrapped in anti-static foam, sealed in a moisture barrier bag with a humidity indicator card, and placed in a double-wall corrugated carton with foam corner protection.
• Hour 4–8: Commercial invoice, packing list, and HS code documentation prepared. Export classification: HS 8537.10 (boards, panels, consoles for electric control). We handle all export paperwork — you receive a clean AWB number.
• Hour 8–24: Handoff to DHL Express or FedEx International Priority at Xiamen Gaoqi International Airport cargo terminal.
• Day 2–4: Delivery to most destinations in Southeast Asia, Japan, South Korea, Australia, Middle East, and Europe. North America typically Day 3–5 depending on customs clearance speed.

For plants in remote locations or countries with complex import regulations, we recommend declaring the shipment as “Industrial Electronic Control Board — Replacement Part” and providing your plant’s import license number at checkout. We can provide a detailed technical description letter on company letterhead to support customs clearance if required — just request it in your order notes.

Tracking numbers are sent via email within 2 hours of carrier pickup. WhatsApp updates are available on request for urgent shipments.
