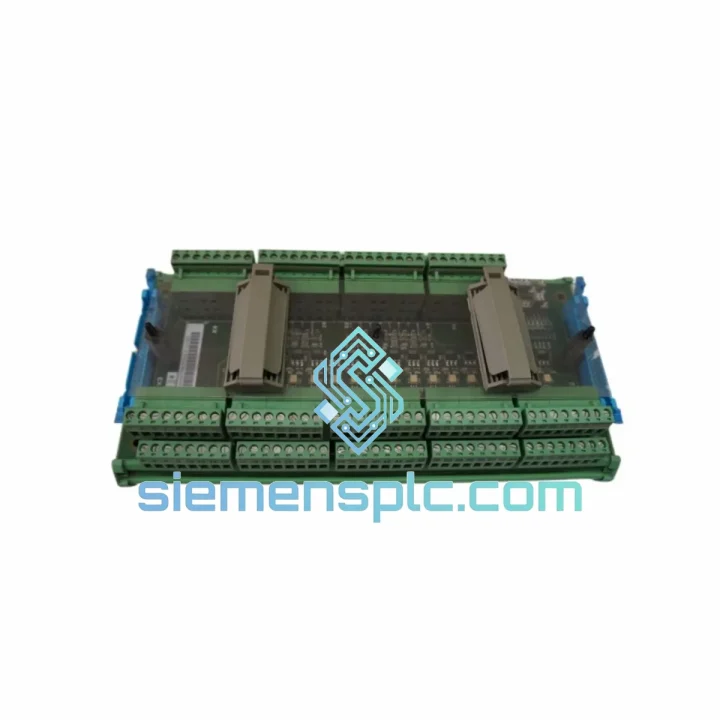

ABB YPT111A DCS I/O Module – Advant OCS

ABB YPT111A Digital I/O Module: Field-Level Signal Interface in Advant OCS Distributed Control Architecture

The ABB YPT111A is a dedicated digital input/output board engineered for deployment within ABB’s Advant OCS (Open Control System) distributed control platform. Its primary function is to serve as the deterministic signal-conditioning and isolation boundary between field instrumentation — discrete sensors, limit switches, solenoid valve feedback contacts, motor status relays — and the Advant controller backbone. In continuous process industries where control loop integrity is non-negotiable, the YPT111A occupies a structurally critical position: it is the first and last point of signal fidelity before data enters or exits the controller’s execution cycle.

Unlike generic I/O expansion cards, the YPT111A is factory-designed to conform to the Advant OCS I/O bus electrical and timing specification. This means the module participates natively in the Advant scan cycle without requiring intermediate protocol converters, firmware patches, or address remapping utilities. For maintenance engineers managing aging Advant OCS installations in oil and gas, power generation, or chemical processing facilities, this native compatibility eliminates the integration risk that typically accompanies third-party replacement hardware.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The YPT111A’s internal architecture reflects ABB’s design philosophy for the Advant OCS platform: determinism and isolation are treated as hardware constraints, not software features. Several design characteristics are worth examining in detail.

Opto-Electronic Isolation Mechanism: Each digital channel on the YPT111A passes through a dedicated optocoupler stage. The LED side of the optocoupler is driven by the field-side signal (typically 24 VDC), while the phototransistor output feeds directly into the module’s local logic bus. This galvanic separation ensures that ground potential differences between field wiring and the DCS backplane — common in large industrial facilities where cable runs span multiple earthing zones — do not introduce common-mode noise or ground loop currents into the controller’s data path. The isolation barrier is rated to withstand transient overvoltages consistent with IEC 61000-4-5 surge immunity requirements.

EMC Hardening: The PCB layout incorporates localized decoupling capacitors at each optocoupler power rail, suppressing high-frequency switching transients generated by adjacent relay coils or variable-frequency drives sharing the same marshalling cabinet. Ferrite bead filtering on the I/O bus interface lines attenuates conducted emissions before they reach the Advant backplane, protecting the scan cycle integrity of co-resident modules.

Address Decoding Logic: The YPT111A uses hardware-based address selection — typically implemented via DIP switch or solder-bridge jumper arrays on the PCB — to assign its I/O channel block to a specific address range within the Advant I/O bus map. This approach eliminates the firmware dependency that plagues software-addressed modules: the module’s identity is fixed at the hardware level and survives controller firmware upgrades, power cycling, and hot-swap events without re-enumeration delays.

Bus Interface Timing: The module’s bus interface logic is synchronized to the Advant I/O bus clock, ensuring that input sampling and output latching occur within the deterministic scan window defined by the Advant Controller (AC series). This synchronization prevents the input data skew that can occur when asynchronous I/O modules are polled by a time-critical control loop, a failure mode that manifests as spurious interlock trips or missed edge transitions in high-speed discrete sequences.

Thermal Design: Component placement on the YPT111A PCB follows a thermal zoning strategy: power dissipation elements (bus interface drivers, optocoupler arrays) are positioned to maximize convective airflow across their packages within the Advant rack’s forced-air cooling path. This extends mean time between failures (MTBF) in installations where ambient temperatures approach the upper operating limit.

System Integration Benefits

• Zero-Configuration Bus Compatibility: The YPT111A connects directly to the Advant OCS I/O bus without adapter boards, protocol bridges, or firmware modifications, reducing commissioning time to the duration of a physical swap and address verification.
• Deterministic Scan Cycle Participation: Hardware-synchronized bus interface ensures the module’s data is captured within the controller’s defined scan window, preserving the real-time response guarantees of the Advant OCS control loop — critical for interlock and safety-instrumented function sequences.
• Galvanic Isolation Protects Controller Integrity: Per-channel opto-isolation prevents field-side fault currents, ground loops, and surge transients from propagating into the Advant backplane, protecting co-resident CPU and communication modules from collateral damage during field wiring faults.
• Hot-Swap Maintenance Capability: Compatible with Advant OCS live-insertion procedures, allowing module replacement during plant operation without requiring a controller shutdown or process interruption — a significant operational advantage in continuous-process facilities with high availability requirements.
• Diagnostic Transparency: The module’s status is visible to the Advant engineering workstation via the standard Advant I/O diagnostics framework, enabling maintenance personnel to identify channel faults, open-circuit field wiring, and module health degradation without physical inspection of the marshalling cabinet.
• Backward Compatibility with Existing I/O Bus Infrastructure: The YPT111A integrates with existing Advant OCS racks, power supplies, and bus terminators without hardware modification, allowing capacity expansion or module replacement without system-wide upgrades or re-engineering of the I/O bus topology.
• Reduced Spare Parts Inventory Complexity: As a genuine ABB OEM module, the YPT111A is interchangeable with other units of the same part number across multiple Advant OCS installations, simplifying spare parts management for multi-site operators maintaining a common spare pool.
• Long-Term Availability for Legacy System Support: ABB Advant OCS installations remain operational in critical infrastructure worldwide. Sourcing genuine YPT111A modules from a verified supplier extends the operational life of these systems without the risk profile associated with counterfeit or refurbished-without-disclosure hardware.
• ESD-Safe Handling and Packaging Compliance: Each unit is shipped in IEC 61340-5-1 compliant anti-static packaging, ensuring the module’s sensitive CMOS logic and optocoupler arrays are protected from electrostatic discharge during transit and installation.

Quality Assurance & Global Logistics

Every ABB YPT111A unit dispatched from our Xiamen, China facility is a genuine ABB OEM module — not a third-party clone, not a remarked substitute, and not a refurbished unit sold without disclosure. Our procurement chain sources directly from authorized ABB distribution channels and verified industrial surplus inventories with full traceability documentation available on request.

Pre-Shipment Inspection Protocol: Each module undergoes a structured inspection sequence before packaging: visual examination of PCB surface, connector pin integrity check, label and part number verification against ABB factory markings, and a functional power-on test where applicable. Units that do not pass inspection are quarantined and not shipped.

Documentation Package: Upon request, we provide a Certificate of Conformance (CoC), functional test report, and serial number record for quality-critical procurement environments including pharmaceutical, nuclear, and defense-adjacent industrial applications.

Packaging Standard: Anti-static ESD bag (IEC 61340-5-1 compliant) + foam-lined corrugated carton with void fill. Suitable for air freight without additional protective packaging.

Logistics from Xiamen, China: We ship globally via DHL Express, FedEx International Priority, and UPS Worldwide Express. Standard transit times from Xiamen to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days, Middle East 4–5 business days. All shipments include full tracking, commercial invoice, and packing list for customs clearance. Export classification and HS code documentation provided for controlled-destination compliance.

Warranty Terms: 12 months from date of shipment. Covers manufacturing defects and functional failure under normal operating conditions. Does not cover damage resulting from incorrect installation, overvoltage beyond rated limits, or physical impact. RMA process initiated within 48 hours of defect notification.
