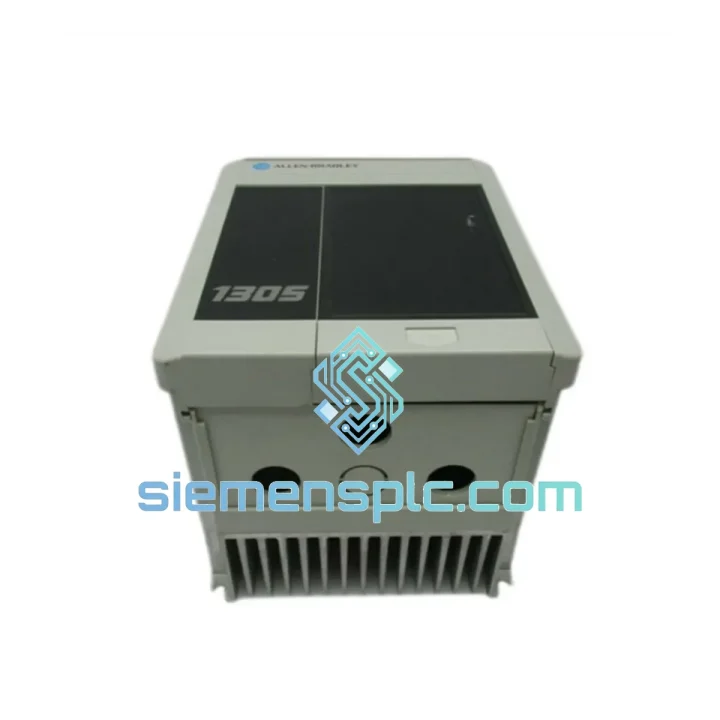

Allen-Bradley 1305-BA03A Variable Speed Drive – 1305 Series

Allen-Bradley 1305-BA03A: Compact AC Variable Speed Drive for Deterministic Motor Speed Regulation

The Allen-Bradley 1305-BA03A is a 0.37 kW (0.5 HP) AC variable speed drive from Rockwell Automation’s 1305 series, engineered for precise open-loop V/Hz motor speed control in industrial environments where compact footprint, reliable output, and straightforward commissioning are primary design constraints. Operating on a 200–240 VAC supply (single-phase or three-phase input), the drive generates a three-phase PWM output across a 0–400 Hz frequency range, enabling smooth acceleration and deceleration profiles for induction motors in conveyor, pump, fan, and general-purpose OEM machine applications.

Unlike drives that rely on sensorless vector algorithms requiring motor auto-tuning, the 1305-BA03A’s V/Hz control topology is inherently stable across a wide range of motor nameplate parameters, making it suitable for multi-motor bus configurations and applications where motor data is unavailable or variable. The drive’s internal DC bus architecture maintains a regulated intermediate voltage rail, decoupling input supply fluctuations from output frequency accuracy — a critical characteristic in facilities with unstable grid conditions.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1305-BA03A is built on a three-stage power conversion architecture: an uncontrolled diode bridge rectifier, a bulk DC link capacitor bank, and an IGBT-based three-phase inverter stage. The rectifier stage converts the AC input to an unregulated DC bus nominally at 280–340 VDC under 200–240 VAC input conditions. The capacitor bank serves a dual function — energy storage for ride-through during brief input sags and harmonic filtering of the rectified waveform. The IGBT inverter stage then synthesizes the three-phase output via sinusoidal PWM modulation, with the carrier frequency adjustable between 2 and 8 kHz to balance acoustic noise against switching losses.

EMC Design: The drive’s internal EMC filter suppresses conducted emissions on the input supply lines, meeting EN 61800-3 Category C2 limits without external line filters in most standard installations. The filter topology uses a common-mode choke in series with the input lines combined with X- and Y-class capacitors to ground, attenuating both differential-mode and common-mode noise. The PCB layout routes high-frequency switching nodes away from the analog signal conditioning circuitry, maintaining signal integrity on the 0–10 VDC and 4–20 mA speed reference inputs even in high-EMI panel environments.

Thermal Management: The drive uses a forced-air cooling path with an internal fan drawing air across the heatsink-mounted IGBTs and rectifier diodes. The thermal protection circuit monitors heatsink temperature via an NTC thermistor; if the heatsink exceeds the thermal threshold, the drive executes a controlled deceleration to stop before issuing an overtemperature fault (F-7), preventing IGBT junction damage. This hardware-level thermal interlock operates independently of the firmware, ensuring protection even during software faults.

Motor Protection Logic: The electronic overload function (I²t accumulator) tracks the thermal state of the connected motor based on output current magnitude and duration. The accumulator integrates current squared over time against a programmable motor full-load ampere (FLA) rating, tripping on an overload fault (F-3) before the motor’s thermal class limit is reached. This eliminates the need for a separate bimetallic overload relay in most applications, reducing panel component count and wiring complexity.

System Integration Benefits

• Deterministic Speed Reference Response: The analog input stage samples the 0–10 VDC or 4–20 mA speed reference at a fixed scan rate, translating the reference to an output frequency setpoint within one PWM carrier cycle — typically under 500 µs — ensuring tight closed-loop response when the drive is used as an inner speed loop actuator under PLC supervisory control.
• DeviceNet Network Integration: With the optional 1203-GU6 DeviceNet adapter, the drive exposes its full parameter set and I/O data over the DeviceNet network, enabling the host PLC (SLC 500, MicroLogix, ControlLogix) to read drive status, fault codes, output frequency, and output current in real time without additional analog wiring.
• Programmable Digital I/O for Application Flexibility: Three programmable digital inputs support functions including run/stop, forward/reverse, jog, fault reset, and preset speed selection, allowing the drive to be configured for a wide range of machine control sequences without external relay logic.
• Fault Diagnostics and Fault History: The drive stores the last four fault codes with associated operating conditions (output frequency, output current, DC bus voltage) at the time of fault, providing maintenance personnel with actionable diagnostic data without requiring a laptop or software connection.
• Adjustable PWM Carrier Frequency: The 2–8 kHz carrier frequency range allows the installer to reduce audible motor noise in occupied environments (higher carrier frequency) or reduce drive switching losses in high-ambient-temperature installations (lower carrier frequency), without hardware changes.
• Configurable Acceleration/Deceleration Profiles: Independent acceleration and deceleration time parameters (0.1–600 seconds) allow precise control of mechanical stress on driven equipment during start and stop sequences, extending gearbox and coupling service life in high-inertia applications.
• Electronic Motor Overload Protection: The integrated I²t overload function eliminates the need for a separate thermal overload relay in most installations, reducing panel BOM cost and simplifying wiring while maintaining IEC 60947-4-2 compliant motor protection.
• Compact DIN-Rail or Panel-Mount Form Factor: The drive’s IP20 enclosure is sized for direct panel mounting with minimal clearance requirements, supporting high-density panel layouts in space-constrained OEM machine cabinets.

Quality Assurance & Global Logistics

Every Allen-Bradley 1305-BA03A unit supplied by siemensplc.com is sourced through verified supply channels with full traceability to Rockwell Automation’s manufacturing records. Units are inspected against a four-point protocol prior to shipment: visual inspection of label authenticity, housing integrity, and connector condition; electrical bench test confirming correct DC bus voltage, output frequency range, and fault-free startup; parameter verification against factory default values using Allen-Bradley DriveExplorer software; and documentation review cross-referencing firmware version, date code, and country of manufacture.

Shipments originate from our warehouse in Xiamen, China, with access to major international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. Standard export documentation — commercial invoice, packing list, certificate of origin, and test report — is prepared for every shipment. DHL Express, FedEx International Priority, and sea freight consolidation options are available depending on order volume and delivery urgency. Most in-stock orders are dispatched within 24–48 hours of payment confirmation. Customs clearance support and HS code documentation (HS 8504.40) are provided as standard.

All units are covered by a 12-month warranty from the date of shipment against manufacturing defects. Warranty claims are processed with replacement unit dispatch or full refund at the buyer’s option, with no requirement to return the defective unit for low-value claims.
