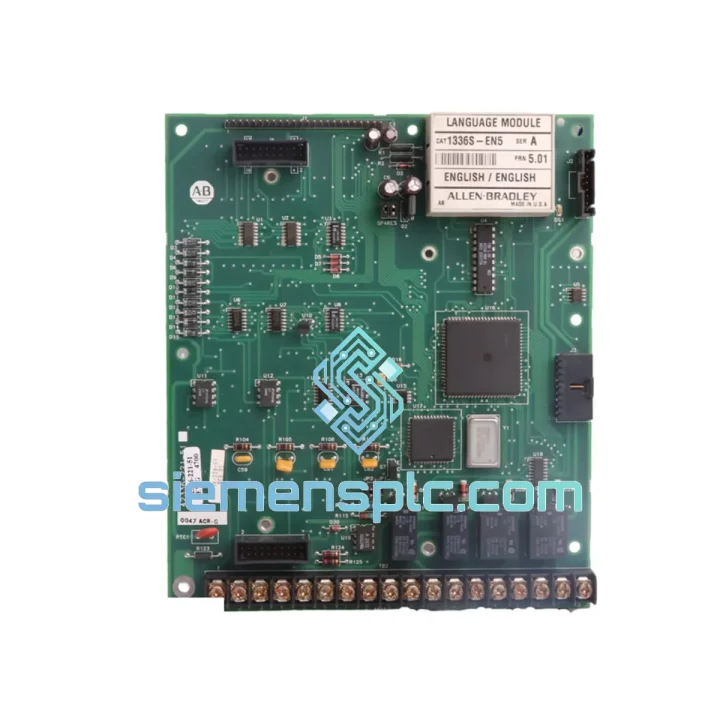

Allen-Bradley 1336S-EN5 42336-221-51 PLC Accessories – 1336 PLUS

Allen-Bradley 1336S-EN5 42336-221-51 — Language Module Kit for 1336 PLUS AC Drive Series

The 1336S-EN5 (catalog reference 42336-221-51) is a factory-engineered language module kit produced by Rockwell Automation for the Allen-Bradley 1336 PLUS (1336S) AC variable frequency drive platform. Its function is architecturally specific: it extends the Human Interface Module (HIM) display layer to support multi-language character sets, enabling operators in multilingual plant environments to interact with drive parameters, fault registers, and status indicators in their native language without any firmware modification to the drive’s main control board.

In a control loop context, the 1336S-EN5 sits at the operator-to-drive interface boundary. It does not participate in the closed-loop speed or torque regulation path — that remains the domain of the main control board and the velocity/current regulators. Instead, it governs the presentation layer: translating internal drive register values into human-readable text strings rendered on the HIM LCD panel. This separation of concerns is deliberate in the 1336 PLUS architecture, allowing the HIM and its language module to be swapped or upgraded without disturbing the drive’s operational parameters stored in non-volatile memory on the control board.

For maintenance engineers managing aging 1336 PLUS installations, the 1336S-EN5 is a precision replacement component. A failed or missing language module does not prevent drive operation, but it degrades the operator’s ability to read fault codes, navigate parameter groups, and confirm drive status — all of which extend mean time to repair (MTTR) during an unplanned stoppage. Restoring this module restores full diagnostic transparency at the operator panel level.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1336 PLUS HIM architecture separates the display rendering engine from the drive’s core control logic through a dedicated serial interface bus internal to the HIM housing. The language module kit (1336S-EN5) interfaces with this bus via a low-pin-count connector, presenting a read-only character table to the HIM’s display controller. This design choice has two engineering consequences worth noting:

• Electrical isolation from the power stage: The language module operates entirely within the low-voltage logic domain of the HIM. It carries no connection to the drive’s DC bus, gate drive circuitry, or current sensing paths. This means module replacement carries zero risk of disturbing the drive’s power electronics state.
• Non-volatile character storage: Language data is stored in ROM within the module itself, not in the drive’s main control board EEPROM. This architecture prevents language data corruption during drive parameter resets or firmware updates — a common failure mode in drives where language and parameter data share the same memory space.
• EMC design compliance: The HIM and its plug-in modules are designed to meet the EMC requirements applicable to the 1336 PLUS drive system (EN 61800-3 Category C2 environment). The module’s PCB layout uses ground plane shielding and short signal trace routing to minimize susceptibility to conducted and radiated interference from the drive’s PWM switching noise — which in a 1336 PLUS can reach switching frequencies of 2–8 kHz with associated harmonic content.
• Mechanical retention: The module uses a positive-latch connector mechanism that resists vibration-induced disconnection, relevant in installations where the drive enclosure is subject to mechanical vibration from adjacent machinery (pumps, compressors, conveyors).

System Integration Benefits

• 1. Restored diagnostic transparency: With the language module installed, operators can read fault codes (F002, F004, F012, etc.) in plain-language text rather than numeric codes alone, reducing the time required to identify fault root cause during an unplanned stop.
• 2. Multilingual plant compliance: Facilities operating under local labor regulations that require machine interfaces in the operator’s native language can achieve compliance without replacing the drive or the HIM — only the language module kit is required.
• 3. Zero parameter disruption on replacement: Because drive parameters reside in the main control board’s non-volatile memory, replacing the 1336S-EN5 does not alter any programmed speed references, acceleration ramps, current limits, or PID tuning values. The drive resumes normal operation immediately after module swap.
• 4. Reduced MTTR in multilingual environments: Operators who can read fault descriptions in their native language identify and clear faults faster than those interpreting numeric codes. This directly reduces mean time to repair and improves OEE (Overall Equipment Effectiveness).
• 5. Compatibility across 1336 PLUS firmware revisions: The 1336S-EN5 is compatible across the 1336 PLUS drive family without firmware version dependency, simplifying spare parts inventory management for facilities running mixed firmware revisions across multiple drives.
• 6. Supports parameter navigation efficiency: With language support active, parameter group names and descriptions are displayed in full text, reducing the risk of operator error during parameter entry — a significant concern in high-stakes applications such as pump control or conveyor speed regulation.
• 7. Extends useful life of existing HIM hardware: Rather than replacing an entire HIM assembly due to a failed or missing language module, the 1336S-EN5 kit restores full HIM functionality at a fraction of the cost of a complete HIM replacement.
• 8. Supports OEM export machine compliance: Machine builders exporting 1336 PLUS-equipped equipment to international markets can install the appropriate language module kit to meet destination-country operator interface requirements without redesigning the control panel.

Quality Assurance & Global Logistics

Every 1336S-EN5 unit dispatched from our Xiamen facility is sourced through traceable industrial supply channels and subjected to a structured pre-shipment verification process:

• Source traceability: Each unit is traced to its supply origin. Counterfeit-risk screening is applied at intake, including label verification, connector pin inspection, and PCB marking cross-reference against known genuine AB part characteristics.
• Physical inspection: Housing integrity, connector condition, and label legibility are verified. Units with any evidence of prior installation damage, pin deformation, or label tampering are quarantined and not shipped.
• Functional verification (where applicable): Units are powered and communication handshake verified on a compatible 1336 PLUS test platform prior to dispatch.
• Packaging: Shipped in anti-static protective packaging with foam cushioning. Original OEM packaging preserved where available.
• Documentation: Certificate of Conformance (CoC) issued on request. Commercial invoice, packing list, and Certificate of Origin available for customs clearance.

Global Express Logistics from Xiamen, China:

• DHL Express and FedEx International Priority — typical transit 2–5 business days to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East.
• Orders confirmed and dispatched within 1–2 business days of payment or PO approval.
• Full shipment tracking provided at dispatch. Export documentation prepared to facilitate smooth customs clearance.
• Bulk and project orders: sea freight and consolidated air freight options available for multi-unit procurement programs.
