Allen-Bradley 1492-IFM40F-FS-2 Analog Interface Module – IFM Series

Allen-Bradley 1492-IFM40F-FS-2: 40-Terminal Fused Spring-Clamp Analog Interface Module for ControlLogix and CompactLogix Systems

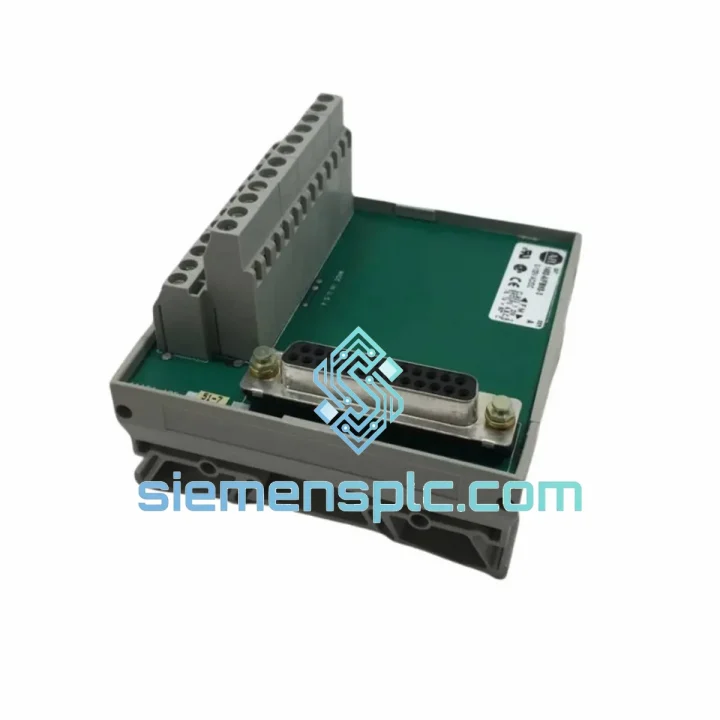

The Allen-Bradley 1492-IFM40F-FS-2 is a 40-terminal, per-channel fused, spring-clamp analog interface module (IFM) manufactured by Rockwell Automation. It functions as a structured wiring intermediary between field-mounted analog instruments — pressure transmitters, RTDs, thermocouples, flow meters, and positioners — and the backplane-resident analog I/O cards of ControlLogix (1756) and CompactLogix (1769) PLC platforms. By centralizing all field-side terminations on a single DIN-rail-mounted assembly, the 1492-IFM40F-FS-2 eliminates direct point-to-point field wiring to I/O card connectors, reducing commissioning labor, minimizing wiring error probability, and providing a maintainable, documented signal interface that survives the full lifecycle of the control system.

In process-intensive industries — oil and gas, chemical processing, pharmaceutical manufacturing, water treatment, and power generation — analog signal integrity is non-negotiable. A single miswired channel or an unprotected field fault can corrupt an entire I/O card’s data stream, triggering spurious alarms or, in worst cases, unsafe process states. The 1492-IFM40F-FS-2 addresses this at the hardware level through individual per-channel fusing and spring-clamp termination technology, both of which are described in detail below.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1492-IFM40F-FS-2 is a passive terminal block assembly, but its hardware architecture reflects deliberate engineering decisions that directly affect signal fidelity, panel safety, and long-term maintainability.

Per-Channel Fuse Architecture: The “FS” designation indicates individual fusing on each of the 20 analog signal channels. Each 250 mA fast-blow fuse is positioned in series with the field-side signal conductor before it reaches the I/O card connector. This topology means a field wiring fault — such as a shorted transmitter cable or an inadvertent contact with a live conductor — is isolated at the channel level. The I/O card’s internal circuitry, which typically operates at ±15 V internal supply rails for signal conditioning, is protected from overcurrent events that would otherwise damage the analog front-end amplifiers. Without per-channel fusing, a single field fault can render an entire 8- or 16-channel I/O card inoperative, with repair requiring card replacement and a full recalibration cycle.

Spring Clamp Termination Mechanics: The spring clamp mechanism uses a stainless steel spring element that applies a constant, calibrated clamping force to the conductor cross-section — typically 0.2 to 2.5 mm² (AWG 24–12). Unlike screw terminals, which rely on a static torque value that degrades under thermal cycling and vibration, the spring clamp maintains consistent contact pressure across the conductor’s service life. In environments with mechanical vibration — pump stations, compressor skids, or mobile equipment — this translates directly to stable contact resistance and, consequently, stable signal transmission. The tool-free insertion design also reduces installation time: a conductor is inserted with a screwdriver actuating the spring lever, eliminating the torque wrench and retorquing steps required during commissioning and annual maintenance.

Passive Signal Path Integrity: Because the IFM module introduces no active components into the signal path, it adds no offset error, no gain error, and no noise floor contribution. The signal path from field instrument to I/O card connector is a direct copper conductor with only the fuse element in series. The fuse’s contact resistance — typically below 50 mΩ for a 250 mA fast-blow fuse — is negligible relative to the source impedance of a 4–20 mA current loop transmitter (typically 250 Ω load resistor at the I/O card input). This ensures that inserting the IFM module into an existing wiring system does not require recalibration of transmitter spans or I/O card scaling parameters.

EMC Considerations: The spring clamp termination provides a low-impedance, gas-tight connection that resists oxidation-induced contact resistance growth — a primary source of common-mode noise injection in analog signal circuits. The module’s DIN-rail mounting ensures a direct, low-impedance ground path to the panel earth bus, which is critical for shielded cable drain wire termination. Proper shield termination at the IFM module, with the drain wire connected to the DIN rail earth, provides a defined return path for capacitively coupled interference, reducing common-mode noise on the signal pair by 20–40 dB in typical industrial environments.

System Integration Benefits

• Elimination of Direct Backplane Wiring: Field cables terminate at the IFM module on the panel door or wireway, while a single pre-made 1492-CABLE assembly connects the IFM to the I/O card. This separates field wiring from system wiring, allowing field cable replacement without disturbing the I/O card or its configuration.
• Accelerated Factory Acceptance Testing (FAT): With all field terminations on a labeled, accessible terminal block, FAT engineers can inject test signals at the IFM terminals using a loop calibrator without accessing the I/O card connector — reducing FAT duration by 30–50% on analog-intensive panels.
• Simplified Fault Isolation During Commissioning: A blown fuse at the IFM module immediately identifies the faulted channel without requiring I/O card removal or software diagnostic interpretation. Maintenance technicians can isolate and clear a field fault in under 5 minutes using a standard fuse puller and a replacement 250 mA fuse.
• Deterministic Signal Routing: The structured wiring approach enforced by the IFM module ensures that each field instrument maps to a documented terminal number, which maps to a specific I/O card channel and a specific PLC tag. This one-to-one traceability eliminates the wiring ambiguity that causes commissioning delays and post-startup troubleshooting loops.
• Reduced I/O Card Replacement Cost: By absorbing field fault energy at the fuse level, the IFM module protects the analog I/O card from damage. A 1756-IF16 ControlLogix analog input card carries a list price of approximately USD 800–1,200. A replacement fuse costs under USD 1. The protection ratio justifies the IFM module’s cost on a single prevented card failure.
• Compatibility with Rockwell Automation Pre-Made Cables: The 1492-CABLE series provides factory-terminated, tested cable assemblies in 1.0 m and 2.0 m lengths. Using pre-made cables eliminates field-side connector crimping errors and provides a documented, tested signal path from IFM to I/O card — a requirement in IEC 61511 functional safety applications where wiring verification is a mandatory step.
• Scalable Panel Architecture: Multiple 1492-IFM40F-FS-2 modules can be mounted on a common DIN rail section, with each module serving one analog I/O card. This modular architecture allows panel expansion by adding IFM modules and I/O cards without redesigning the existing wiring infrastructure.
• Maintenance Transparency: The fuse status on each channel is visually inspectable without energizing test equipment. A blown fuse is identifiable by visual inspection of the fuse element through the transparent fuse body — a diagnostic capability that reduces mean time to repair (MTTR) in 24/7 process environments where downtime cost is measured in thousands of dollars per hour.
