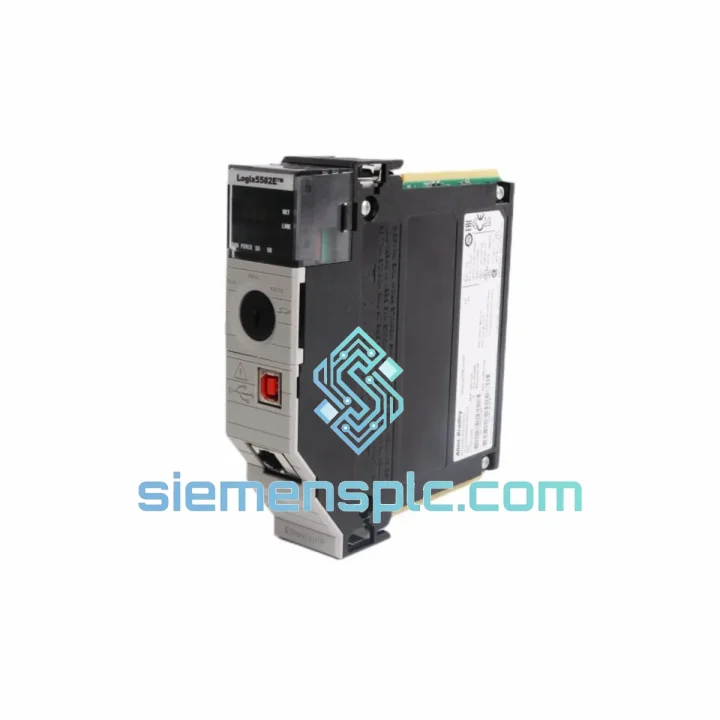

Allen-Bradley 1756-L81E ControlLogix Controller

Allen-Bradley 1756-L81E Down? Every Minute Costs You Money — We Ship Today

A tripped 1756-L81E at 02:00 on a continuous-process line is not a maintenance ticket — it is a production crisis. The ControlLogix 5580 L81E carries 4 MB of user memory and a built-in EtherNet/IP port; when it fails, the entire chassis goes dark. No HMI. No SCADA. No output. The clock starts the moment the fault LED locks red.

We keep verified, tested 1756-L81E units on the shelf in Xiamen. Same-day dispatch on confirmed orders placed before 15:00 CST. DHL Express or FedEx International Priority puts the module on your bench within 24–72 hours depending on destination. While your team is pulling the failed unit, ours is already packing the replacement.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years on the floor taught me that most 1756-L81E failures fall into four buckets. Identify yours before the replacement arrives so you are not chasing a second fault after swap-out.

Fault Code 0004 — Major Hardware Fault (Controller Faulted LED solid red): This is the most common call I get. The processor has detected an internal memory or CPU error it cannot recover from. A power cycle will not clear it. You need a new controller. Before you pull the unit, connect Studio 5000 online and capture the fault log — it tells you whether the fault is truly hardware or a corrupted program that killed the CPU. If the program is the culprit, restoring from SD card on the new unit is faster than re-downloading from the engineering workstation.

Fault Code 0001 — Power Loss Fault: Often misdiagnosed as a controller failure. Check the 1756-PA72/PB72 power supply output voltage under load first. If the PSU is marginal, swapping the L81E will not fix the problem — you will fault the new controller within hours. Measure DC bus voltage at the chassis backplane connector before condemning the CPU.

EtherNet/IP Port Failure (LINK LED off, no ping): The onboard dual-port switch on the L81E can fail independently of the processor. Symptom: controller runs normally, all I/O on the backplane is healthy, but the EtherNet/IP network drops. Confirm by checking the port status in Studio 5000 → Controller Properties → Ethernet. If the port shows faulted but the controller is otherwise healthy, you may be able to add a 1756-EN2T as a temporary workaround while the replacement ships — but the onboard port cannot be repaired in the field.

SD Card / Firmware Mismatch After Replacement: This is where most swap-outs go wrong. The 1756-L81E ships from the factory at a specific firmware revision. If your plant standardizes on, say, v32.011, and the replacement arrives at v28.011, Studio 5000 will refuse to go online. Use ControlFLASH Plus to upgrade firmware before inserting the module into the chassis. Download the correct firmware kit from the Rockwell Compatibility and Downloads Center (PCDC) — match major and minor revision exactly. Do not mix firmware revisions across redundant controller pairs.

Replacement Procedure (Condensed Field Steps):

• Place the chassis in Program mode via the keyswitch or Studio 5000 before removal — never hot-pull a running controller.
• Export the current program to the engineering workstation and save to SD card as a backup.
• Note the slot number — the L81E does not have a physical address switch; slot assignment is set in the I/O tree of the project file.
• Remove the failed unit. Inspect the backplane connector for bent pins or corrosion before seating the replacement.
• Flash the replacement to the correct firmware revision before insertion.
• Insert the new controller, power up, and download the program. Verify all I/O modules come online in Studio 5000 before switching to Run mode.
• Confirm EtherNet/IP connections re-establish — check the connection count in the controller diagnostics matches pre-fault baseline.

Reliability in Harsh Conditions

The 1756-L81E is not a office-grade device dressed up in an industrial enclosure. Rockwell designed the ControlLogix 5580 platform to operate continuously in environments that would kill consumer electronics within weeks.

The processor board is conformally coated to resist moisture ingress and condensation — critical in coastal plants, paper mills, and food processing facilities where humidity swings are constant. The backplane connector is gold-plated and rated for thousands of insertion cycles, which matters when you are doing quarterly PM swaps on a rotating spare program.

Vibration tolerance meets IEC 60068-2-6 (sinusoidal) and IEC 60068-2-27 (shock) standards. In practice, this means the module survives being mounted adjacent to large motor starters, compressors, and press machinery without the solder joints cracking over time — a failure mode I have seen destroy cheaper third-party controllers within 18 months of installation.

Operating range of 0 °C to 60 °C covers the vast majority of industrial panel environments. For ambient temperatures above 50 °C, ensure the chassis has adequate forced-air ventilation — the 5580 series runs hotter than the legacy L7x platform due to the higher-performance processor. A thermal camera scan of the panel during peak summer load is worth 30 minutes of your time.

All units we ship are inspected for label integrity, connector condition, and firmware revision before dispatch. Each module is powered on and self-diagnostics are confirmed clear. We do not ship modules with unknown fault histories.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and daily consolidated freight departures to major global hubs.

Standard dispatch process for urgent orders:

• Order confirmed before 15:00 CST: same-day pick, pack, and handover to DHL or FedEx.
• DHL Express Worldwide: 24–48 hours to Southeast Asia, Middle East, and Europe; 48–72 hours to North America and South America.
• FedEx International Priority: alternative routing for destinations where DHL coverage is limited or where the customer has a preferred FedEx account number.
• Export documentation: commercial invoice, packing list, certificate of origin, and HS code 8537.10 declaration prepared same day. ECCN classification confirmed for US-origin Rockwell hardware — we handle the paperwork so your customs broker does not hold the shipment.
• Tracking: AWB number sent via email and WhatsApp within 2 hours of carrier pickup. Real-time tracking link included.
• Insurance: all shipments above USD 500 are covered by cargo insurance. Claim support provided if damage occurs in transit.

We have shipped 1756-series controllers to petrochemical plants in Saudi Arabia, automotive factories in Mexico, water treatment facilities in Australia, and semiconductor fabs in Taiwan. The logistics process is the same every time — fast, documented, and traceable.
