Allen-Bradley 150-F361NBDD Smart Motor Controller – SMC-Flex Series

Allen-Bradley 150-F361NBDD SMC-Flex Motor Controller: Solid-State Torque Management for 361A Heavy-Duty Drive Applications

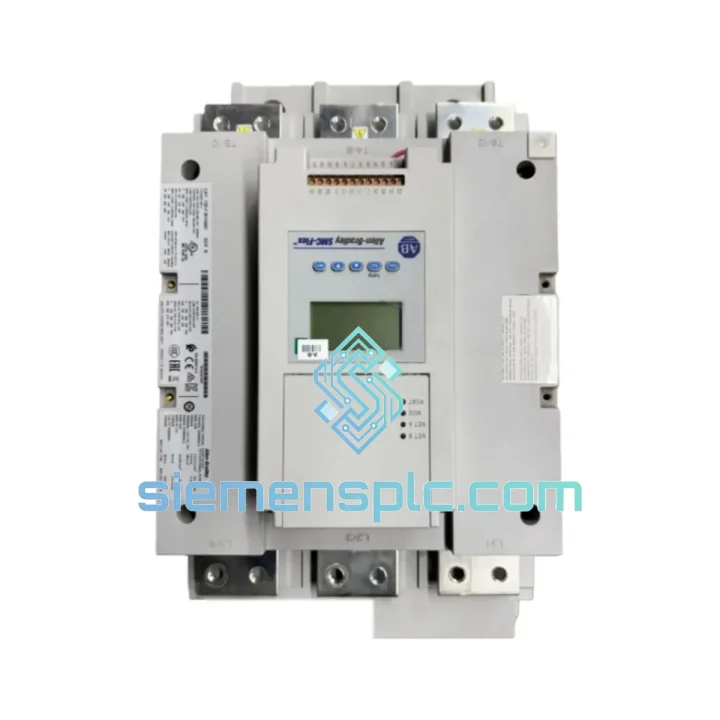

The 150-F361NBDD is a Frame-F solid-state motor controller within Rockwell Automation’s SMC-Flex (150 Series) platform, rated at 361 A continuous for 200–480 V AC three-phase systems. Its primary function in a control loop is to govern the voltage envelope applied to the motor stator during acceleration and deceleration, eliminating the abrupt torque transients that characterize across-the-line starting. In large rotating machinery — centrifugal pumps above 200 kW, high-inertia compressors, and loaded conveyor drives — uncontrolled inrush current can reach 600–700% of full-load amperage. The 150-F361NBDD constrains that inrush to a programmable ceiling, typically 200–350% FLA, protecting both the motor winding insulation and the upstream power distribution infrastructure.

The suffix structure of the part number encodes the hardware configuration precisely: 150 = SMC-Flex family; F = Frame F (361 A power section); 361 = ampere rating; N = DeviceNet communication port; B = internal bypass contactor; DD = dual-door enclosure option with specific terminal configuration. This level of factory-configured specificity means the unit arrives ready for direct MCC bucket installation without field modification to the power section.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The power section of the 150-F361NBDD is built around three pairs of anti-parallel SCR (silicon-controlled rectifier) thyristors — one pair per phase. Each SCR pair is phase-angle fired by the control board’s gate drive circuitry, which modulates the conduction angle from approximately 0° (full block) to 180° (full conduction) across the acceleration ramp. At 361 A, the thermal mass of the SCR stack is substantial; Rockwell specifies a minimum 10-second off-time between successive starts to allow junction temperature recovery, a constraint that must be factored into any application with frequent start-stop cycles.

The internal bypass contactor — the “B” in the part number — closes once the motor reaches approximately 90% of synchronous speed, shorting the SCR stack out of the power path. This is not merely a convenience feature: it eliminates the continuous I²R losses across the thyristors during steady-state run, reducing panel heat load by 15–25 W per phase at full load. The bypass contactor is mechanically interlocked with the SCR firing circuit; the gate drive is inhibited before bypass closure to prevent SCR commutation failure under load.

EMC performance is addressed at the hardware level through a combination of gate drive transformer isolation (preventing common-mode noise injection into the control bus), snubber RC networks across each SCR pair (suppressing dV/dt transients that would otherwise couple into adjacent signal wiring), and a shielded control board layout with a dedicated analog ground plane. The DeviceNet physical layer uses an isolated CAN transceiver, maintaining ±2 kV isolation between the network bus and the power section ground reference — a critical requirement in MCC environments where ground potential differences between cabinets can reach tens of volts.

The electronic overload function operates on a thermal model algorithm rather than a simple I²t curve. The firmware integrates motor current squared over time, applies a cooling time constant derived from the motor’s thermal class setting, and maintains a running thermal register that persists through power cycles via EEPROM write. This means a motor that has been running at 95% FLA for two hours will trip faster on the next overload event than a cold motor — accurately reflecting the actual thermal state of the winding insulation.

System Integration Benefits

• Deterministic acceleration profiling: The linear speed ramp mode uses closed-loop current feedback to maintain a constant acceleration rate regardless of load torque variation, producing repeatable mechanical stress profiles across every start cycle — critical for gearbox and coupling fatigue life calculations.
• DeviceNet parameter mirroring: All 80+ configurable parameters are accessible via DeviceNet explicit messaging, enabling PLC-driven parameter upload/download during commissioning and automated configuration verification during preventive maintenance windows.
• Fault history log: The unit stores the last 10 fault events with timestamp, fault code, and motor current at trip — accessible via DeviceNet or the optional HIM module — providing the data foundation for root-cause analysis without requiring a separate data logger.
• Underload detection: The underload protection function monitors motor current against a programmable threshold (typically 30–50% FLA), detecting pump cavitation, broken coupling, or belt failure within 2–5 seconds — faster than most process instrumentation can respond.
• Thermistor input: A dedicated PTC/NTC thermistor input on the control terminal strip allows direct motor winding temperature monitoring, adding a second independent thermal protection layer independent of the current-based overload model.
• Kickstart torque boost: For high-static-friction loads (loaded conveyors, screw compressors), the kickstart function applies a programmable full-voltage pulse of 0.1–2.0 seconds before transitioning to the soft-start ramp, overcoming breakaway torque without manual intervention.
• Soft stop with adjustable deceleration: The controlled deceleration ramp reduces water hammer in pump systems by extending the valve closure time window, eliminating the pressure spikes that cause pipe joint fatigue in long-run distribution systems.
• FactoryTalk integration: Via the DeviceNet scanner modules (1756-DNB for ControlLogix, 1769-SDN for CompactLogix), the 150-F361NBDD maps its I/O and parameter data directly into the PLC tag database, enabling HMI visualization, historian logging, and alarm management without custom protocol translation.

Quality Assurance & Global Logistics

Every 150-F361NBDD unit supplied through siemensplc.com undergoes a structured pre-shipment inspection protocol executed at our Xiamen facility. Physical inspection covers housing integrity, terminal block condition, label legibility, and date code verification against Rockwell Automation’s production records. Electrical pre-check includes control power application, DeviceNet node address assignment verification, and communication port response confirmation. Units are packed in anti-static polyethylene bags with silica gel desiccant, placed in foam-lined corrugated cartons rated for international air freight handling (ISTA 2A standard).

Xiamen’s geographic position — direct access to Xiamen Gaoqi International Airport and Xiamen Port — enables same-day dispatch for orders confirmed before 14:00 CST. Air freight via DHL Express or FedEx International Priority delivers to most major industrial hubs in Southeast Asia within 2–4 business days, Europe within 3–5 business days, and North America within 4–6 business days. Sea freight consolidation is available for multi-unit orders where lead time permits. All shipments include a commercial invoice, packing list, and certificate of conformity. Export classification and HS code documentation are prepared in compliance with Chinese customs regulations and destination country import requirements.

A 12-month warranty covers manufacturing defects and component failure under normal operating conditions. Warranty claims are processed with a target response time of 48 hours from receipt of the defective unit, with replacement dispatch within 5 business days upon fault confirmation.
