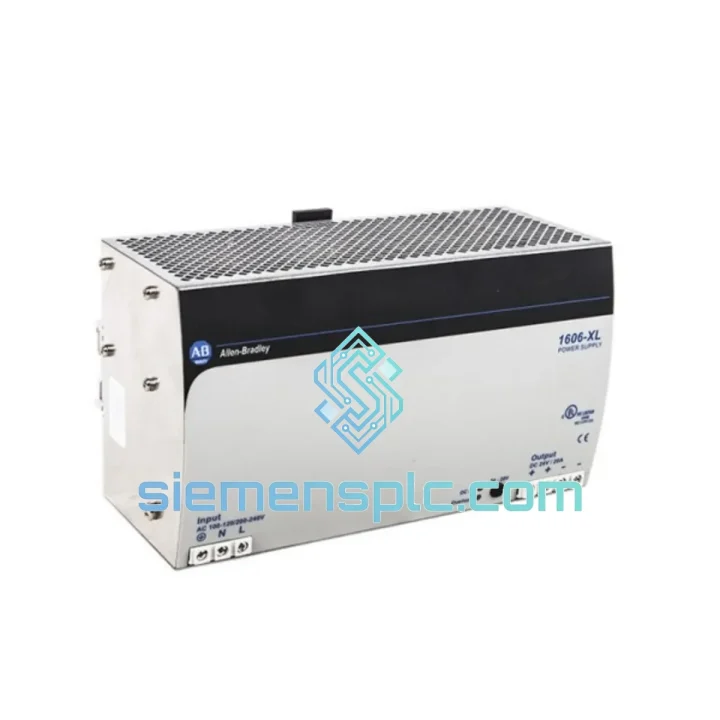

Allen-Bradley 1606-XL480EP Power Supply

1606-XL480EP Down? Every Minute of Downtime Costs You Money — Ship Today from Xiamen

Your line stopped. The 1606-XL480EP is dead. You’ve already pulled the unit, confirmed 24 VDC is absent on the bus, and your PLC rack is dark. You don’t need a sales pitch — you need a replacement on a truck today. We stock the Allen-Bradley 1606-XL480EP in Xiamen and ship DHL Express worldwide, typically same business day on orders confirmed before 14:00 CST. This is the exact OEM unit: 480 W continuous, 24 VDC adjustable output, universal AC input, ATEX Zone 2 rated, with the DC OK relay your PLC supervisory logic depends on.

We’ve handled emergency callouts for automotive body shops, petrochemical DCS panels, and semiconductor fab lines. We know what a stopped line costs per hour. Our job is to cut that number down.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Step 1 — Confirm the PSU is the fault, not the load. Before you pull the 1606-XL480EP, disconnect all 24 VDC load wiring from the output terminals. Measure output voltage unloaded. If you still read 0 VDC or an unstable voltage, the PSU is confirmed failed. If voltage recovers unloaded, you have a downstream short — check fuses on each branch circuit before installing the replacement.

Step 2 — Check the DC OK relay state before power-down. If your PLC was still running on backup power, log the DC OK input status. A relay that opened before the output collapsed points to an OVP or OTP trip rather than a catastrophic failure — useful for root-cause documentation.

Step 3 — Note the output voltage trim setting. The 1606-XL480EP has a front-panel trim potentiometer adjustable from 24 to 28 VDC. Your existing unit may have been trimmed above 24 V to compensate for cable voltage drop. Measure the old unit’s trim position or check your commissioning records before installing the replacement — a mismatch will cause I/O modules to fault on undervoltage if your cable run is long.

Step 4 — Swap and verify DC OK wiring. The DC OK relay contact (terminals 11/12 on most 1606-XL variants) must be reconnected to your PLC digital input. Verify the relay closes (Vout > ~21 V) within 2 seconds of AC power application. If the PLC input does not see DC OK within the configured timeout, the PLC will generate a power fault alarm even though the PSU is functioning correctly.

Step 5 — Redundancy module check. If your panel uses the 1606-XLRED redundancy module for N+1 operation, verify the diode-ORing module is not the failed component before condemning the PSU. A failed XLRED can present identical symptoms — no 24 VDC on the bus — while both PSUs are actually healthy.

Common fault codes associated with 1606-XL480EP failure in ControlLogix / CompactLogix systems:

• Major Fault Type 10, Code 20 — I/O module power loss; typically triggered when 24 VDC bus drops below module undervoltage threshold during PSU failure.
• Minor Fault Type 4, Code 1 — Battery low / power loss warning; can appear if PSU hold-up time is insufficient to allow clean PLC shutdown.
• Module Status LED solid red on 1756-IB16 or similar I/O cards — confirms 24 VDC field power absent; clear after PSU replacement and PLC reset.

No firmware or software configuration is required when replacing a 1606-XL480EP on a like-for-like basis. The unit is purely a power supply with no addressable parameters. There are no DIP switches, no node addressing, and no firmware to match. Swap, trim, reconnect DC OK — done.

Reliability in Harsh Conditions

The 1606-XL480EP was designed for environments that destroy consumer-grade hardware. The LLC resonant converter topology runs cooler than conventional hard-switched designs, reducing thermal stress on electrolytic capacitors — the component most likely to fail in high-ambient-temperature panels. At 60°C ambient, the unit delivers full 480 W. Above 60°C, derate linearly; at 70°C, reduce load to zero or add forced ventilation.

The integrated EMC filter suppresses conducted emissions to CISPR 11 Class B, which matters in panels where VFDs and servo drives share the same enclosure. Without adequate filtering, high-frequency switching noise couples back onto the AC line and induces false trips in adjacent instrumentation. The EP designation specifically addresses this — it is not a marketing label but a measurable improvement in EMC performance over the base XL series.

Vibration resistance meets IEC 60068-2-6 (sinusoidal) and IEC 60068-2-27 (shock), making the unit suitable for mobile equipment, shipboard installations, and panels mounted on vibrating machinery bases. The DIN rail clip is spring-loaded and does not rely on friction alone — it will not walk off the rail under sustained vibration.

Humidity tolerance up to 95% RH non-condensing covers coastal and tropical installations. The conformal-coated PCB variant (where applicable) provides additional protection against condensation in panels that experience thermal cycling between cold nights and hot production days.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct DHL and FedEx gateway access. Here is exactly what happens after you confirm your order:

• Order confirmed before 14:00 CST: Unit is pulled from shelf, photographed, and packed same day. Export documentation (commercial invoice, packing list, certificate of origin) is prepared in parallel.
• DHL Express / FedEx International Priority: Standard carrier for urgent shipments. Transit times: Southeast Asia 1–2 days, Europe 3–4 days, North America 3–5 days, Middle East 2–3 days, Australia 3–4 days.
• Tracking number provided within 4 hours of pickup. We send the AWB number directly to your email and WhatsApp so your logistics team can monitor in real time.
• EXW Xiamen available for customers using their own freight forwarder or consolidating with other shipments. We prepare all export paperwork; your forwarder handles pickup.
• HS Code: 8504.40 (static converters) — standard classification for industrial power supplies. Duties and import VAT are the buyer’s responsibility; we can provide a pro-forma invoice for customs pre-clearance if required.
• Packaging: Anti-static bag, foam-lined carton, fragile labeling. Units are not stacked. Each carton ships as a single item to prevent transit damage.

If your plant is down and every hour matters, tell us when you contact us. We will prioritize your order in the pick queue and push it to the front of the day’s shipment manifest.
