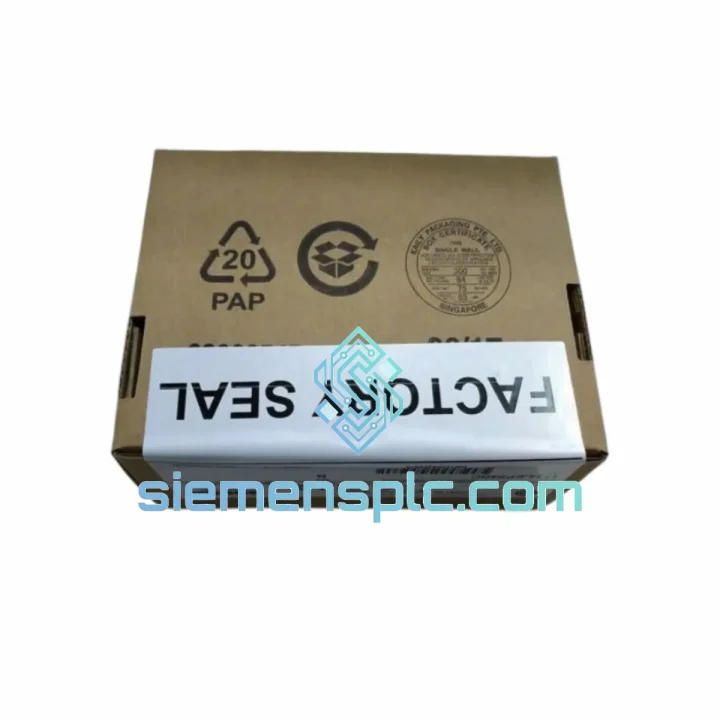

Allen-Bradley 1734-EP24DC Power Supply Module

1734-EP24DC: Stop the Bleed — Every Minute of Downtime Costs You Money

Your POINT I/O bank just went dark. Downstream field devices are unresponsive, the PLC has lost visibility into the process, and your shift supervisor is already on the phone. You’ve traced it: the expansion power supply is dead. The 1734-EP24DC is the single component standing between you and full production recovery — and right now, you need it in your hands, not on a 6-week lead time from a regional distributor.

We stock the Allen-Bradley 1734-EP24DC at our Xiamen warehouse. Same-day dispatch on confirmed orders. DHL and FedEx express lanes direct to your facility, anywhere on the planet. While your colleagues are still filing procurement requests, your replacement module is already in transit.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Symptom pattern that points to a failed 1734-EP24DC: Modules downstream of the expansion power supply show solid red fault LEDs or go completely dark, while modules upstream of it (between the adapter and the EP24DC) remain healthy. The adapter itself shows no fault. This split-bank failure signature is the clearest field indicator that the expansion supply has failed rather than the adapter or a specific I/O module.

Before you pull the module:

• Verify 24 VDC is present at the EP24DC input terminals with a calibrated multimeter. A wiring fault upstream will mimic a dead module.
• Check the input fuse or circuit breaker feeding the EP24DC — these are separate from the adapter’s power feed in most panel designs.
• In Studio 5000, navigate to the I/O tree and check for “Module Faulted” or “Connection Timeout” on the affected downstream modules. Export the fault log before powering down — it will help you confirm the root cause after recovery.

Replacement procedure (field-tested sequence):

• Step 1 — Inhibit downstream modules: In Studio 5000 online mode, inhibit all I/O modules downstream of the EP24DC before removing power. This prevents nuisance faults from propagating to the controller program and triggering safety interlocks.
• Step 2 — Remove field wiring from downstream modules: The EP24DC itself has no field wiring — only the 24 VDC input terminals. Label and disconnect those first.
• Step 3 — Slide out the module: Press the DIN rail release tab and slide the EP24DC out of the bank. The side-bus connector disengages automatically. No tools required.
• Step 4 — Inspect the bus connector: Before inserting the replacement, visually inspect the side-bus connector pins on both the new EP24DC and the adjacent modules for bent pins or contamination. A damaged bus connector is a common secondary failure mode in high-vibration environments.
• Step 5 — Snap in the replacement: Align the new 1734-EP24DC on the DIN rail and press firmly until the rail clip engages. Reconnect the 24 VDC input wiring, observing polarity.
• Step 6 — No firmware or configuration required: The 1734-EP24DC is a passive power infrastructure module. It does not appear in the Studio 5000 I/O tree and requires zero software configuration. Power up and verify downstream module LEDs return to solid green.
• Step 7 — Un-inhibit modules and verify: Remove inhibit from downstream modules in Studio 5000, confirm all connections re-establish, and run a functional I/O check before releasing the line.

Common fault codes associated with EP24DC failure:

• Major Fault Type 4, Code 16 — I/O module connection timeout. Appears when downstream modules lose power mid-scan.
• Minor Fault Type 3, Code 1 — Connection not established. Clears automatically once power is restored to the bank.
• Module LED: Solid Red (no flash) — Indicates the module has lost backplane power, not a module-level fault. Distinguishes EP24DC failure from a module firmware fault (which shows flashing red).

Configuration note — no DIP switches, no addressing: Unlike many I/O modules, the 1734-EP24DC has no rotary switches, DIP switches, or node address settings. Replacement is purely mechanical and electrical. The only configuration risk is polarity reversal on the 24 VDC input — double-check your wiring labels before energizing.

Reliability in Harsh Conditions

The 1734-EP24DC is built to the same industrial hardening standards as the rest of the POINT I/O platform — which means it has been validated in environments that would destroy consumer-grade electronics within weeks.

Vibration and mechanical shock: The module meets IEC 60068-2-6 sinusoidal vibration testing and IEC 60068-2-27 shock testing. The side-bus connector design locks mechanically to adjacent modules, preventing micro-disconnections in high-vibration installations such as press lines, compressor skids, and mobile equipment panels. In field experience, vibration-induced bus connector wear is the most common long-term failure mode — inspect connector pins during any planned maintenance window.

Thermal performance: Rated to 55 °C ambient without derating. In practice, panels with poor thermal management regularly see internal temperatures 15–20 °C above ambient. If your panel runs hot, ensure the EP24DC is not positioned directly above heat-generating drives or transformers. Convection airflow within the enclosure matters more than most engineers account for during initial design.

Humidity and contamination: The module is rated to 95% relative humidity non-condensing. In coastal, tropical, or washdown-adjacent environments, condensation during temperature cycling is the primary risk. Conformal coating of the PCB (applied at the factory) provides a baseline barrier, but panels in these environments should include desiccant packs and be inspected annually for corrosion on terminal blocks and bus connectors.

EMC and electrical noise: The 1734-EP24DC meets EN 61000-4 immunity standards for conducted and radiated interference. In installations near large VFDs or welding equipment, ensure the 24 VDC supply feeding the EP24DC is sourced from a dedicated, properly grounded SMPS — sharing a noisy supply rail with inductive loads is a documented cause of intermittent power supply faults that are difficult to reproduce during troubleshooting.

Global Express Logistics

Production downtime does not respect time zones or business hours. Our logistics process is built around that reality.

Warehouse location: Xiamen, Fujian Province, China — a major international cargo hub with direct DHL and FedEx express lanes to North America, Europe, Southeast Asia, the Middle East, and Australia. Xiamen’s port and air cargo infrastructure means your module moves without the inland transit delays common to inland Chinese warehouses.

Order-to-dispatch timeline: Orders confirmed before 15:00 CST are dispatched same business day. Orders confirmed after 15:00 CST are dispatched the following morning. We do not batch shipments — each confirmed order is processed individually.

Carrier options:

• DHL Express Worldwide: 2–4 business days to most of Europe and North America. 3–5 business days to Southeast Asia, Middle East, and South America. Real-time tracking from pickup to delivery.
• FedEx International Priority: 1–3 business days to the United States. 2–4 business days to Europe. Preferred for time-critical North American deliveries.
• TNT / UPS: Available on request for specific destinations or customer account preferences.

Documentation package included with every shipment: Commercial invoice, packing list, certificate of origin, and — on request — a certificate of conformance. All documents are prepared to facilitate smooth customs clearance. We have experience with import requirements in the EU, US, Australia, Singapore, UAE, and Brazil, and can advise on HS code classification and declared value documentation.

Customs and duties: The 1734-EP24DC is classified under HS Code 8537.10 (boards, panels, consoles for electric control) in most jurisdictions. We declare accurate commercial values — we do not undervalue shipments, which protects both parties from customs penalties and delays.

If your plant is facing an active production stoppage, contact us directly via WhatsApp for real-time coordination on dispatch timing and tracking.
