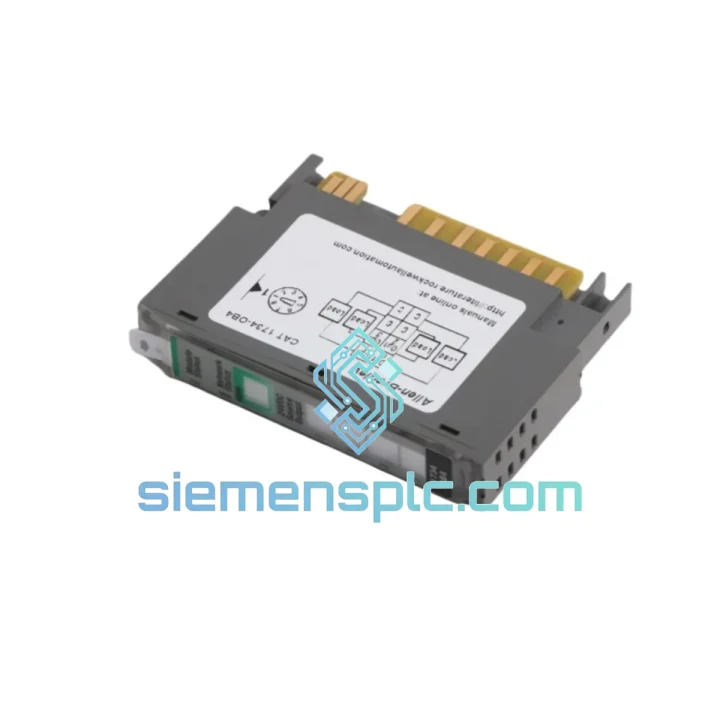

Allen-Bradley 1734-OB4E Digital Output Module – POINT I/O

Allen-Bradley 1734-OB4E: 4-Channel Sourcing Digital Output Module in the POINT I/O Distributed Control Architecture

The 1734-OB4E occupies a well-defined functional position within Rockwell Automation’s POINT I/O platform: it serves as the terminal interface between the controller’s discrete output image table and field-side actuators operating at 24V DC. Each of its four channels delivers up to 0.5 A of sourcing (PNP) current through a solid-state switch, with per-channel electronic fusing (E-fuse) that replaces conventional glass or blade fuses with a software-resettable overcurrent protection circuit. This architecture eliminates panel downtime caused by physical fuse replacement and enables fault recovery from the controller program without physical intervention at the cabinet.

In a distributed I/O topology, the 1734-OB4E mounts directly onto a 1734-TB or 1734-TBS terminal base and connects to the POINT I/O backplane, drawing 75 mA at 5V DC from the backplane power rail. Field power for the output channels is supplied separately at 10–28.8V DC, allowing the module to operate across the full industrial 24V DC supply tolerance band (±20%). The module’s 12 mm width contributes to high-density panel layouts, with a typical 8-slot POINT I/O assembly occupying under 100 mm of DIN rail.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1734-OB4E implements per-channel electronic fusing through an integrated current-sensing circuit that monitors load current on a cycle-by-cycle basis. When channel current exceeds the 0.5 A threshold — whether from a hard short or an inductive surge — the E-fuse circuit opens the output switch within microseconds, far faster than any mechanical fuse. The fault state is latched in the module’s internal register and reported over the backplane as a diagnostic bit, accessible in the controller’s input image table. A software reset from the ladder program or function block clears the latch and re-enables the channel, provided the fault condition has been removed. This mechanism eliminates the need for physical access to the panel during fault recovery, which is operationally significant in remote or hazardous installations.

The output stage uses a MOSFET-based solid-state switch with a low on-state resistance, minimizing voltage drop across the switch at rated current. At 0.5 A load, the voltage drop across the output transistor is typically below 0.5V, preserving actuator coil voltage within specification even at the lower end of the 10V DC field supply range. The module’s EMC design incorporates transient voltage suppression (TVS) diodes on each output channel to clamp inductive kickback from solenoid coils and relay coils, protecting the output transistor from voltage spikes that would otherwise exceed its drain-source breakdown rating. The backplane interface uses optocoupler isolation between the field-side output circuit and the backplane logic, providing galvanic separation that prevents ground loops and common-mode noise from propagating into the controller backplane.

Thermal management is passive: the module’s aluminum housing conducts heat from the output transistors to the ambient air. The operating temperature ceiling of +55°C is defined by the junction temperature limit of the output MOSFETs at maximum continuous load. In installations where ambient temperature approaches this limit, derating the per-channel current or reducing the number of simultaneously active channels is recommended to maintain junction temperature within the safe operating area.

System Integration Benefits

• Tag-based diagnostic transparency: Each channel’s fault status (short-circuit, open-load, over-temperature) maps directly to controller tags in Studio 5000 Logix Designer, enabling alarm logic and HMI annunciation without custom programming overhead.
• Software-resettable fault recovery: E-fuse latch reset via controller output tag eliminates physical panel access during fault recovery, reducing mean time to repair (MTTR) in distributed or remote installations.
• Deterministic backplane communication: The POINT I/O backplane uses a synchronous serial protocol with fixed scan-cycle timing, ensuring output update latency is bounded and predictable — critical for motion-adjacent or time-sensitive discrete control loops.
• Modular scalability: The 12 mm form factor allows up to 63 I/O modules per adapter node (subject to backplane current budget), enabling incremental capacity expansion without rewiring the adapter or power supply.
• Multi-network adapter compatibility: A single 1734-OB4E module can be redeployed across EtherNet/IP, DeviceNet, PROFIBUS, or ControlNet architectures by swapping only the adapter module, preserving the I/O wiring investment.
• Inductive load protection: Integrated TVS clamping on each output channel eliminates the need for external flyback diodes on solenoid valve and relay coil loads, reducing BOM complexity and wiring labor.
• Open-load detection: The module detects disconnected or broken field wiring on de-energized channels and reports the condition as a diagnostic fault, enabling predictive maintenance before the missing actuator causes a process fault.
• Unified configuration via AOP: The native Add-On Profile in Studio 5000 provides a graphical configuration interface with parameter validation, eliminating manual register mapping and reducing commissioning errors.
• Galvanic isolation: Optocoupler isolation between backplane logic and field-side output circuits prevents ground potential differences between the controller cabinet and field junction boxes from inducing noise on the backplane data bus.
• Low backplane power draw: At 75 mA from the 5V backplane rail, the 1734-OB4E imposes minimal load on the POINT I/O power supply, maximizing the number of modules that can be supported per power supply module without derating.

Quality Assurance & Global Logistics

Every 1734-OB4E unit supplied through siemensplc.com is sourced from verified distribution channels and undergoes incoming inspection against Rockwell Automation’s published specifications. Date codes and lot traceability documentation are available upon request for applications requiring component-level traceability records. Units are supplied in original manufacturer packaging with all factory labels intact, enabling verification of authenticity against Rockwell Automation’s product identification standards.

Shipments originate from Xiamen, China, with same-day or next-business-day dispatch for in-stock orders confirmed before 15:00 CST. International freight is handled via DHL Express, FedEx International Priority, and UPS Express Saver, with typical transit times of 3–5 business days to major industrial hubs in Europe, Southeast Asia, the Middle East, and the Americas. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared for each shipment. ECCN classification and end-use certification support is available for orders subject to export control review. All units carry a 12-month warranty against manufacturing defects from the date of shipment.
