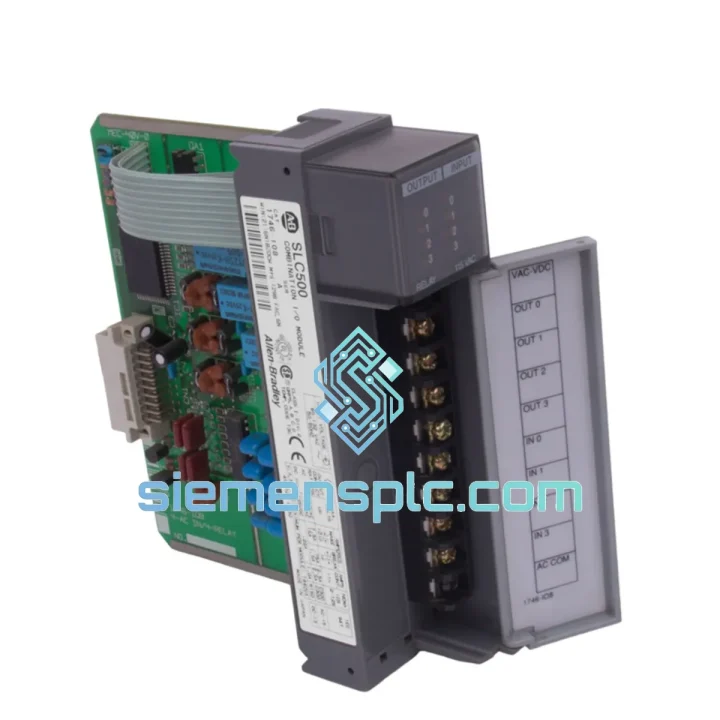

Allen-Bradley 1746-IV32 PLC Input Module

1746-IV32 Down? Every Minute Costs You Money — We Ship Today from Xiamen

Your SLC 500 line just tripped. The HMI is screaming faults. Maintenance is on the phone. You’ve already pulled the module and confirmed it’s the 1746-IV32 — 32-point current sourcing DC input — and now you need one, fast, without gambling on a counterfeit. That’s exactly why we stock this module in Xiamen and ship globally via DHL and FedEx Express. While your competitors are still waiting on distributor lead times, your replacement is already in transit.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you that most 1746-IV32 failures fall into three buckets. Here’s how to diagnose fast and swap clean.

Fault Code 0021 / 0022 — I/O Module Fault: The processor has lost communication with the module or detected a configuration mismatch. Before condemning the module, check the chassis slot assignment in RSLogix 500 I/O configuration. If the slot was previously occupied by a different module type (e.g., 1746-IB32 NPN), the I/O tree will reject the 1746-IV32 until you delete the old entry and re-add the correct catalog number. Clear the fault, go offline, update the I/O configuration, download, and cycle power.

Inputs Stuck ON or Chattering: Nine times out of ten this is a filter time issue, not a dead module. In RSLogix 500, navigate to the module’s properties and check the input filter time setting. If it’s at 1 ms in a high-EMI environment (VFDs, welding, large contactors nearby), bump it to 8 ms or 16 ms. If inputs are stuck ON with no field device energized, measure voltage at the RTB terminal — if you’re reading more than 5V DC with the sensor disconnected, you have a wiring fault or a failed sensor sourcing phantom voltage.

Physical Swap Procedure — Do It Right the First Time:

1. Place the processor in Program mode before pulling the module. Do not hot-swap unless your application explicitly supports it — the SLC 500 backplane does not guarantee hot-swap integrity on standard I/O modules.
2. Disconnect the RTB by pressing the release tab and pulling straight out. The RTB carries all 32 field wires — it stays wired and goes directly onto the new module. No rewiring required.
3. Press the module release latch, slide the 1746-IV32 out of the chassis slot. Note the slot number.
4. Seat the new 1746-IV32 firmly until the latch clicks. Reconnect the RTB — verify the keying tab aligns before forcing.
5. In RSLogix 500, confirm the I/O configuration still shows 1746-IV32 in the correct slot. If the processor was in fault, clear faults and return to Run mode.
6. Monitor the input image table (I:x.0) for 30 seconds. All inputs should reflect actual field device states. If any point reads incorrectly, check RTB seating and terminal torque (0.56–0.79 N·m recommended).

PNP vs NPN Wiring Trap: The 1746-IV32 is current sourcing (PNP). Field devices must be PNP-output (sourcing). If your sensors are NPN (sinking), inputs will not turn ON regardless of signal voltage. This is the single most common wiring error on emergency replacements. Verify sensor output type before declaring the module faulty.

Backplane Power Budget Check: The 1746-IV32 draws 150 mA from the 5V backplane rail. In a fully loaded 1746-A10 or A13 chassis, verify the power supply (1746-P1, P2, P3, or P4) has sufficient headroom. A marginal power supply will cause intermittent module faults that look like hardware failures but are actually brownout events on the backplane.

Reliability in Harsh Conditions

The 1746-IV32 was not designed for a climate-controlled server room. It was built for the floor — and it shows. The module’s 1500V AC optical isolation barrier between field wiring and the SLC backplane is not a marketing spec; it’s the difference between a clean input signal and a corrupted processor image table when a 75 kW VFD switches 50 meters away on the same cable tray.

Operating temperature ceiling of 60°C covers the vast majority of industrial panel environments, including steel mill auxiliary panels, outdoor pump station enclosures in subtropical climates, and foundry control rooms where ambient temperatures routinely exceed what HVAC can manage. The module does not derate within this range — you get full 32-point operation at 59°C the same as at 25°C.

Vibration rating of 2g across 10–500 Hz (IEC 60068-2-6) and 30g shock resistance (IEC 60068-2-27) means the module survives the mechanical environment of stamping presses, compressor skids, and mobile equipment panels without contact bounce or connector fatigue. The RTB locking mechanism maintains positive electrical contact under sustained vibration — a failure mode that plagues cheaper terminal block designs.

Humidity tolerance up to 95% non-condensing addresses coastal facilities, food processing washdown-adjacent areas, and tropical installations where moisture ingress is a chronic concern. The conformal coating on the PCB provides an additional barrier against condensation-induced leakage currents that would otherwise cause false input states on low-impedance input circuits.

Every unit we ship has been functionally tested — each of the 32 input points exercised with a calibrated 24V DC source, ON/OFF transitions verified against IEC 61131-2 Type 1 thresholds, and backplane communication confirmed in a live SLC 500 chassis before packaging. You are not receiving untested shelf stock.

Global Express Logistics from Xiamen

Xiamen is not an accident. It is one of China’s primary export hubs with direct DHL, FedEx, and UPS Express gateway operations. From our warehouse to your panel, the logistics chain is short and predictable.

Standard Express Timeline (DHL / FedEx International Priority):

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 2–3 business days
• Northeast Asia (Japan, South Korea, Taiwan): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, UK, Netherlands, Poland): 3–5 business days
• North America (USA, Canada, Mexico): 3–5 business days
• Australia / New Zealand: 3–4 business days
• South America (Brazil, Chile, Colombia): 5–7 business days

What’s Included in Every Shipment: Commercial invoice with accurate HS code classification (8537.10 for PLC I/O modules), packing list, certificate of conformance, and country of origin declaration. For EU imports, EORI-compliant documentation is prepared as standard. For US imports, HTS classification and ECCN determination are provided upon request.

Orders confirmed before 14:00 CST (UTC+8) are dispatched same business day. Tracking numbers are issued within 2 hours of dispatch. For critical downtime situations, contact us directly via WhatsApp for real-time shipment coordination — we have handled emergency air freight consolidations for customers with sub-24-hour delivery requirements to major hub cities.

All shipments are insured at declared value. In the event of transit damage, replacement units are dispatched within 24 hours of damage confirmation — no extended claims process, no waiting.
