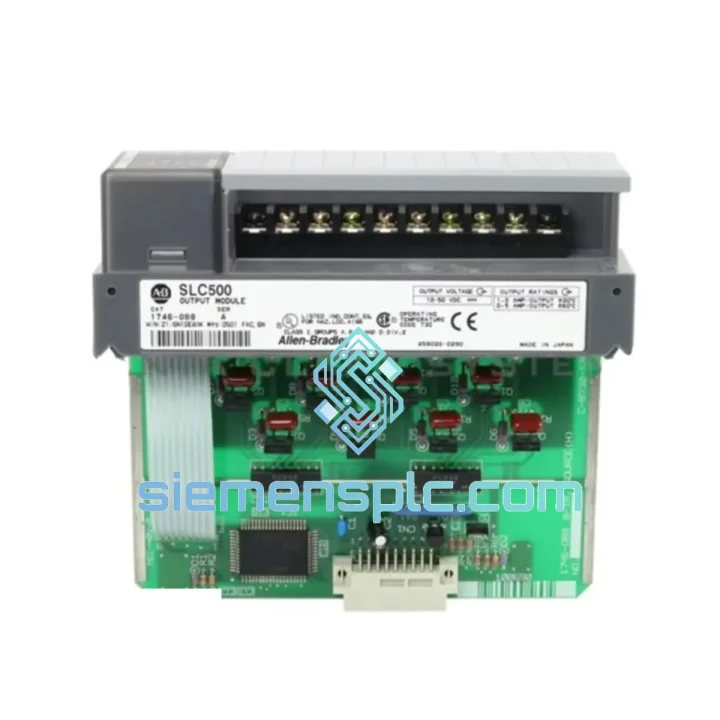

Allen-Bradley 1746-OB8 PLC Output Module

Allen-Bradley 1746-OB8: Stop the Bleeding — Get Your Line Back in 48 Hours

Your conveyor just stopped. The HMI is throwing Output Fault on slot 3. You’ve already swapped the field wiring, checked the fuse, and confirmed 24VDC at the terminal block — the 1746-OB8 is dead. Every hour this line sits idle costs you real money: labor standing by, downstream processes starving, and a delivery commitment slipping. You don’t need a lecture on PLC architecture right now. You need a replacement module on your bench, today.

We stock the Allen-Bradley 1746-OB8 in Xiamen and ship globally via DHL Express and FedEx International Priority. Orders confirmed before 3:00 PM CST typically leave the same day. Most destinations in Southeast Asia, the Middle East, and Europe receive within 3–5 business days. No waiting on OEM lead times. No minimum order quantity. One module ships if that’s what you need.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Confirming the 1746-OB8 has failed (not the field device):

Before pulling the module, force the suspect output point ON in RSLogix 500 (I/O Forcing → enable force on the output bit). If the output LED on the module illuminates but there’s no voltage at the terminal, the RTB contact or internal output transistor has failed. If the LED doesn’t illuminate at all with a valid force, the module’s backplane communication or output driver circuit is gone. Either way — you need a new module.

Step-by-step hot-swap procedure (SLC 500 modular chassis):

1. In RSLogix 500, go to I/O Configuration and note the slot number and module type. Do not delete the slot — leave the configuration intact.
2. Remove all I/O forces on the affected slot before pulling the module. Leaving active forces on a slot that goes offline can cause unexpected behavior on adjacent modules.
3. Disconnect the RTB (removable terminal block) by pressing the release tab and pulling straight out. Field wiring stays connected to the RTB — do not disturb it.
4. Press the module release latch at the top of the slot and slide the 1746-OB8 out of the chassis. The SLC 500 supports online module replacement in modular chassis — the processor continues running.
5. Inspect the backplane connector on the failed module for bent pins or burn marks. If the backplane connector is damaged, inspect the chassis slot before inserting the replacement.
6. Slide the new 1746-OB8 into the slot until the latch clicks. Reconnect the RTB.
7. In RSLogix 500, the slot will automatically re-establish communication. Verify the module status LED goes solid green within 5 seconds. If it flashes red, check the I/O Configuration — the module type must match exactly (1746-OB8, not OB8E or OB16).
8. Clear all I/O faults in the processor fault table. Re-enable any required I/O forces and return the machine to automatic mode.

Common fault codes associated with 1746-OB8 failure:

• Error Code 71h (I/O Module Fault): Module not responding on backplane. Caused by failed output driver IC or backplane connector damage. Replace module.
• Error Code 72h (I/O Module Removed): Module physically absent or backplane contact lost. Check latch engagement and connector pins.
• Output LED ON, no field voltage: Internal output transistor open-circuit failure. Common after inductive load switching without suppression diodes. Always install flyback diodes on solenoid loads.
• Output LED OFF, field voltage present: RTB wiring error or field device back-feeding voltage through the load. Check wiring polarity and load isolation.
• Intermittent output dropout at high ambient temperature: Thermal derating exceeded. Verify chassis ventilation and reduce module current load. The 1746-OB8 derate curve starts at 40°C — at 60°C, maximum per-point current drops to approximately 0.75A.

Configuration notes for the replacement module:

The 1746-OB8 is a non-intelligent discrete output module — there are no DIP switches, no firmware to match, and no address configuration required. The SLC 500 processor auto-detects the module type via the backplane during power-up or online insertion. The only configuration requirement is that the I/O Configuration table in your RSLogix 500 project must have slot X defined as a 1746-OB8. If the slot was previously configured for a different module type (e.g., 1746-OB16), you must update the I/O Configuration and download the modified program to the processor before the new module will communicate correctly.

Reliability in Harsh Conditions

The 1746-OB8 was designed to operate in environments that would destroy consumer-grade electronics. Rockwell Automation built the SLC 500 I/O family to IEC 61131-2 environmental standards, and the 1746-OB8 reflects that pedigree.

Vibration and mechanical shock: The module meets IEC 68-2-6 sinusoidal vibration testing (5–500Hz, 2g) and IEC 68-2-27 shock testing (15g, 11ms half-sine). In practice, this means the 1746-OB8 survives the continuous vibration of press lines, compressor rooms, and mobile equipment enclosures without solder joint fatigue or connector fretting.

Thermal cycling: Industrial control panels routinely cycle between cold morning startups and peak afternoon temperatures. The 1746-OB8’s conformal-coated PCB resists the condensation that forms during these thermal transitions, preventing the dendritic growth and leakage currents that kill unprotected boards.

Electrical noise immunity: The optical isolation barrier between the field terminals and the backplane provides 1500V AC isolation, blocking the voltage spikes generated by large motor starters, welding equipment, and variable frequency drives sharing the same panel. The module also meets IEC 61000-4-4 electrical fast transient (EFT) immunity requirements — 2kV on power ports, 1kV on signal ports.

Humidity and contamination: Rated to 95% relative humidity non-condensing, the 1746-OB8 handles the steam and washdown overspray common in food processing and pharmaceutical environments (when installed in an appropriately rated enclosure). The conformal coating provides additional protection against airborne conductive particulates in metalworking and mining applications.

Every unit we ship has been stored in climate-controlled conditions and inspected for physical integrity before dispatch. We do not ship modules with cracked housings, damaged RTB connectors, or suspect date codes.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL, FedEx, and UPS gateway access. This geography is not accidental: Xiamen’s port infrastructure means your module clears Chinese customs faster than shipments originating from inland cities, and the direct flight routes to Singapore, Dubai, Frankfurt, and Los Angeles minimize transit time.

Standard express routing by region:

• Southeast Asia (Singapore, Thailand, Vietnam, Indonesia): DHL Express — 2–3 business days door-to-door
• Middle East (UAE, Saudi Arabia, Qatar): FedEx International Priority — 3–4 business days
• Europe (Germany, Netherlands, UK, Poland): DHL Express — 3–5 business days
• North America (USA, Canada, Mexico): FedEx International Priority — 4–6 business days
• Australia / New Zealand: DHL Express — 3–5 business days
• South Asia (India, Pakistan, Bangladesh): DHL Express — 3–4 business days

What’s included with every shipment:

• Commercial invoice with accurate HS code (8537.10) for customs clearance
• Packing list with module serial number and condition declaration
• ESD-safe anti-static bag + foam-lined outer carton
• DHL/FedEx tracking number provided within 2 hours of dispatch
• Certificate of conformance available on request (no additional charge)

For time-critical shipments, contact us directly via WhatsApp before placing your order. We can confirm same-day cutoff availability, arrange Saturday dispatch where carrier schedules permit, and provide a pre-shipment photo of the module and packaging for your records.
