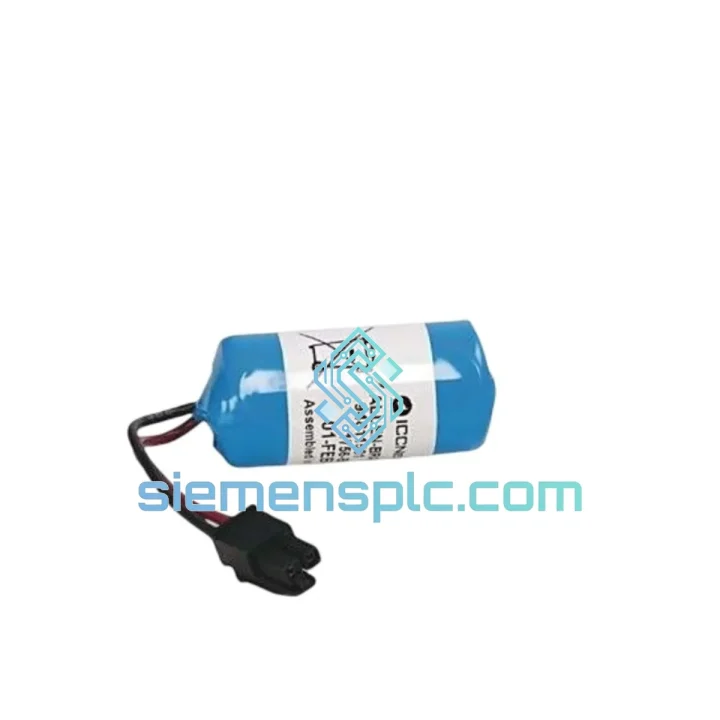

Allen-Bradley 1756-BA2 PLC Battery Assembly

1756-BA2 Down? Every Minute of Unplanned Downtime Has a Price Tag — We Ship Today

You’re reading this because something already went wrong, or you’re smart enough to prevent it. Either way, here’s the situation: a dead or degraded 1756-BA2 battery in your ControlLogix chassis means your controller’s user program, tag data, and I/O configuration are one power blip away from total loss. Cold restart. Re-commissioning. Deviation reports. Hours of lost production. In automotive, oil & gas, or pharma environments, that’s not a maintenance event — it’s a financial emergency.

We stock the Allen-Bradley 1756-BA2 battery assembly in Xiamen and ship globally via DHL Express and FedEx International Priority. Order confirmed before 3:00 PM CST ships same day. No waiting on distributor lead times. No minimum order quantity. One unit or fifty — we move fast because your line can’t afford to wait.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Indicators You’ll See Before Total Failure:

• BAT LED on controller faceplate illuminates amber or red — this is your first warning. Don’t ignore it.
• BATLOW status bit (S:2/1 in legacy, or Battery Low tag in Logix Designer) goes TRUE — log this in your CMMS immediately.
• Controller event log shows “Battery Low” or “Battery Fault” entries — pull the log via RSLinx or Studio 5000 before the battery dies completely.
• Intermittent program loss after power cycling — if this is happening, the battery is already critically depleted. Stop the line, replace now.

Step-by-Step Hot-Swap Replacement (No Planned Outage Required):

1. Verify controller state — Confirm the controller is in RUN or PROGRAM mode and the program is intact. Do NOT attempt hot-swap if the controller is already faulted.
2. Locate the battery compartment — On 1756-L6x and L7x series, the battery slot is on the left side of the controller faceplate, behind a hinged cover. On L8x series, it’s accessible from the front panel.
3. Open the compartment and note the connector orientation — The keyed connector only seats one way. Do not force it.
4. Disconnect the old battery — The internal capacitor holds RAM for approximately 30 seconds. Work quickly but don’t rush to the point of dropping the connector.
5. Insert the new 1756-BA2 — Press the connector firmly until it clicks. Verify the BAT LED extinguishes within 5 seconds of connection.
6. Close the compartment and log the replacement — Record the date, lot number from the battery label, and technician ID in your maintenance log. Set a calendar reminder for the next inspection at 3 years.
7. Dispose of the old battery per local lithium battery regulations — Do not discard in general waste. Li/SOCl₂ cells require hazardous waste disposal.

Common Configuration Pitfalls After a Cold Restart (if battery failed before replacement):

• Controller reverts to factory default IP address (192.168.1.1) — update your EtherNet/IP module configuration before going online.
• Motion axis parameters and cam profiles are lost — restore from your last Studio 5000 project backup. You do have a backup, right?
• Produced/consumed tag connections drop — re-establish connections after program restore and verify all remote I/O racks come online.
• Safety controller (if 1756-L7xS or GuardLogix) requires safety signature verification after any program restore — do not bypass this step.

Reliability in Harsh Conditions

The 1756-BA2 is not a consumer battery in an industrial wrapper. The Li/SOCl₂ chemistry was selected specifically for its flat discharge curve — voltage stays near 3.0V for the vast majority of its service life, then drops sharply at end-of-life. This means the BATLOW alarm gives you genuine advance warning, not a false sense of security.

In practice, this battery has been validated in environments that would destroy standard alkaline or NiMH cells within months:

• High-vibration environments — Stamping presses, compressor stations, and rail-mounted control panels subject the chassis to continuous mechanical stress. The keyed plug-in connector maintains electrical contact under vibration profiles that would loosen screw-terminal alternatives.
• Thermal cycling — Outdoor substations and unheated equipment rooms in northern climates see daily temperature swings of 30°C or more. The Li/SOCl₂ chemistry retains >80% capacity at -20°C, ensuring program retention even during cold-start conditions.
• High-humidity industrial environments — Food processing facilities, paper mills, and coastal installations expose control panels to sustained high humidity. The sealed battery assembly prevents electrolyte migration and connector corrosion that would compromise an unsealed cell.
• Long idle periods — Seasonal equipment, backup generators, and standby systems may sit unpowered for months. With a self-discharge rate below 1% per year, a properly stored 1756-BA2 retains full functionality after 3+ years on the shelf — critical for MRO spare-parts programs.

Every unit we ship has been date-code verified. We do not ship batteries within 18 months of their shelf-life expiry. If your project timeline requires a specific minimum remaining shelf life, tell us when you inquire and we’ll confirm before invoicing.
