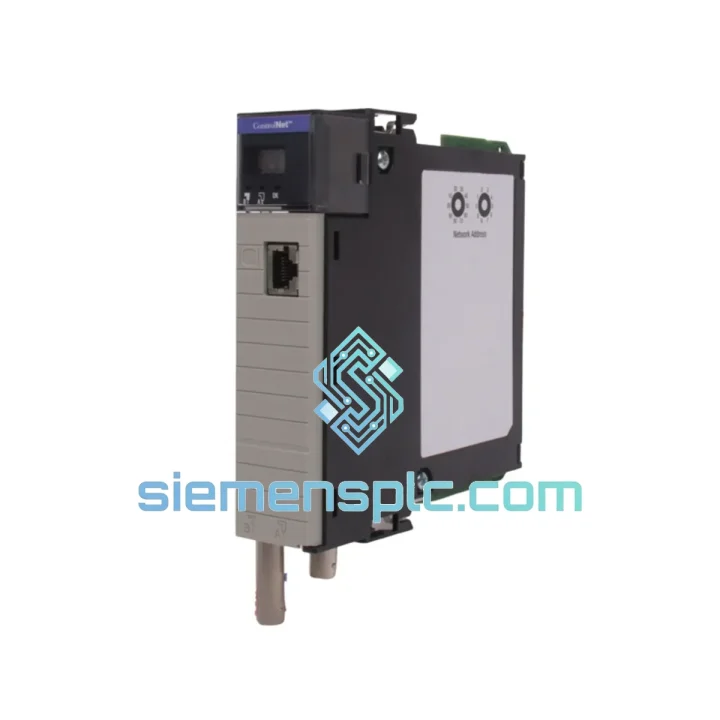

Allen-Bradley 1756-CNBR PLC Communication Module – ControlLogix 1756 Series

Allen-Bradley 1756-CNBR: Deterministic ControlNet Bridge for ControlLogix Backplane Architectures

The 1756-CNBR occupies a structurally critical position in any ControlLogix-based control system: it is the sole hardware interface that bridges the high-speed ControlLogix backplane to an external ControlNet segment, enabling scheduled (implicit) and unscheduled (explicit) messaging across distributed chassis configurations. Unlike a simple protocol converter, the 1756-CNBR participates actively in the ControlNet Network Update Time (NUT) arbitration cycle, functioning as a network keeper candidate and maintaining the scheduled connection table that governs deterministic I/O delivery across all nodes on the segment.

In multi-chassis architectures — common in large-scale process plants, automotive body shops, and utility SCADA installations — the 1756-CNBR allows a ControlLogix CPU to own and scan remote I/O racks housed in physically separate enclosures, connected via coaxial or fiber ControlNet media. The module’s dual BNC ports support redundant media topologies, where both cable paths carry identical traffic simultaneously; the receiving node selects the first valid frame, discarding the duplicate. This mechanism, defined under IEC 62439 principles, eliminates single-cable failures as a source of network downtime without requiring software-level failover logic.

From a backplane perspective, the 1756-CNBR draws 800 mA at 5 VDC from the ControlLogix chassis power supply and communicates with the resident CPU via the 1756 backplane bus at the full backplane bandwidth — no external cabling between the bridge and the controller is required. The module’s internal processor handles all ControlNet MAC-layer framing, CRC validation, and scheduled connection maintenance autonomously, offloading these tasks entirely from the ControlLogix CPU’s scan cycle. This architectural separation is significant: even under high ControlNet traffic loads, the CPU’s deterministic scan time is not degraded by network processing overhead.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1756-CNBR’s internal architecture separates the ControlNet MAC processor from the backplane interface logic via an internal dual-port RAM buffer. Incoming ControlNet frames are received, CRC-validated, and written to this shared memory region by the ControlNet processor; the backplane interface logic then transfers the payload to the ControlLogix CPU’s connection buffer independently. This decoupled pipeline ensures that ControlNet frame jitter — caused by cable reflections, node count variation, or NUT renegotiation events — does not propagate as latency variation into the backplane data path.

EMC Design: The module’s PCB layout isolates the ControlNet analog front-end (BNC termination, line driver, and receiver circuitry) from the digital logic plane using a split ground plane with a single-point star connection. This topology suppresses common-mode noise coupling between the coaxial cable shield and the digital ground, a critical consideration in environments with high-current motor drives, welding equipment, or variable-frequency drives operating in close proximity. The BNC connectors are chassis-grounded independently of the PCB ground plane, providing a direct low-impedance path for cable shield currents that bypasses the sensitive analog circuitry.

Redundant Media Arbitration: When configured in redundant media mode, both BNC ports receive identical ControlNet frames simultaneously. The module’s MAC layer implements a frame-selection algorithm based on arrival timestamp and CRC validity: the first valid frame received on either port is accepted; the duplicate is discarded at the hardware level before it reaches the backplane interface. No software intervention is required, and the switchover from a failed cable to the surviving cable occurs within a single NUT cycle — typically 2 ms to 100 ms depending on network configuration — without generating a connection timeout at the controller level.

Network Keeper Functionality: The 1756-CNBR is eligible to serve as the ControlNet network keeper — the node responsible for broadcasting the scheduled connection table (the SMAX/UMAX parameters and the connection schedule) to all other nodes during network initialization. In installations where the keeper node fails, a backup keeper (another 1756-CNBR or compatible node) assumes keeper responsibility automatically, preventing network-wide communication loss. This keeper redundancy mechanism is a fundamental reliability feature of the ControlNet architecture that distinguishes it from non-deterministic Ethernet-based alternatives in safety-critical applications.

System Integration Benefits

• Deterministic I/O Scan Integrity: Scheduled ControlNet connections deliver I/O data within a guaranteed NUT window (configurable from 2 ms to 100 ms), providing the cycle-accurate data delivery required for closed-loop motion and process control without relying on Ethernet QoS mechanisms.
• CPU Scan Time Isolation: The module’s onboard MAC processor handles all ControlNet protocol processing autonomously. The ControlLogix CPU’s task scan time is unaffected by ControlNet traffic volume, node count changes, or network reconfiguration events.
• Transparent Diagnostics via RSNetWorx: RSNetWorx for ControlNet provides per-node connection status, scheduled bandwidth utilization percentage, NUT compliance monitoring, and error counters (CRC errors, missed updates, node dropouts) — all accessible without interrupting live network operation.
• Scalable Node Architecture: A single 1756-CNBR supports up to 99 ControlNet nodes, accommodating large distributed I/O architectures (1794 FLEX I/O, 1734 POINT I/O via 1734-ACNR adapters) without additional bridge hardware or gateway infrastructure.
• Redundant Media Without Software Overhead: Hardware-level dual-cable redundancy eliminates single-point cable failures with zero impact on CPU scan time or application code — no redundancy logic required in the Logix program.
• Extended Physical Reach: Native coaxial cable support to 1,000 m, extendable to 3,000 m with fiber repeaters, enables distributed architectures across large plant footprints without Ethernet infrastructure investment.
• Hazardous Area Compliance: FM Class I Division 2 certification allows installation in control panels adjacent to hazardous process areas (petroleum refining, chemical processing) without requiring intrinsically safe barriers on the ControlNet cable.
• Long-Term Ecosystem Stability: As a member of the ControlLogix 1756 platform — Rockwell Automation’s primary automation architecture — the 1756-CNBR benefits from an established global spare parts supply chain, documented firmware update paths, and multi-decade platform support commitments.

Quality Assurance & Global Logistics

Every 1756-CNBR supplied through siemensplc.com is sourced as genuine Allen-Bradley / Rockwell Automation hardware through verified industrial procurement channels. Each unit undergoes a documented pre-shipment verification sequence: visual inspection of housing, label markings, holographic seals, and date code format against known-genuine reference standards; functional power-on test in a live ControlLogix chassis with backplane recognition confirmed in Studio 5000; ControlNet network commissioning test via RSNetWorx confirming scheduled connection establishment at rated 5 Mbps; and compilation of a full shipment documentation package including Certificate of Conformance (COC), functional test report, and Certificate of Origin (COO).

Shipments originate from our warehouse in Xiamen, China, with export documentation prepared to IATA and customs compliance standards. Standard export HS Code: 8537.10. In-stock units dispatch within 1–3 business days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited — carrier selection based on destination and urgency. All units are packed in ESD-safe anti-static bags within foam-lined, moisture-barrier cartons. Volume orders (5+ units) qualify for consolidated freight options with reduced per-unit logistics cost. We serve industrial customers across Asia-Pacific, Europe, the Middle East, North America, and Southeast Asia, with established export experience to Singapore, Malaysia, UAE, Germany, the United Kingdom, and the United States.
