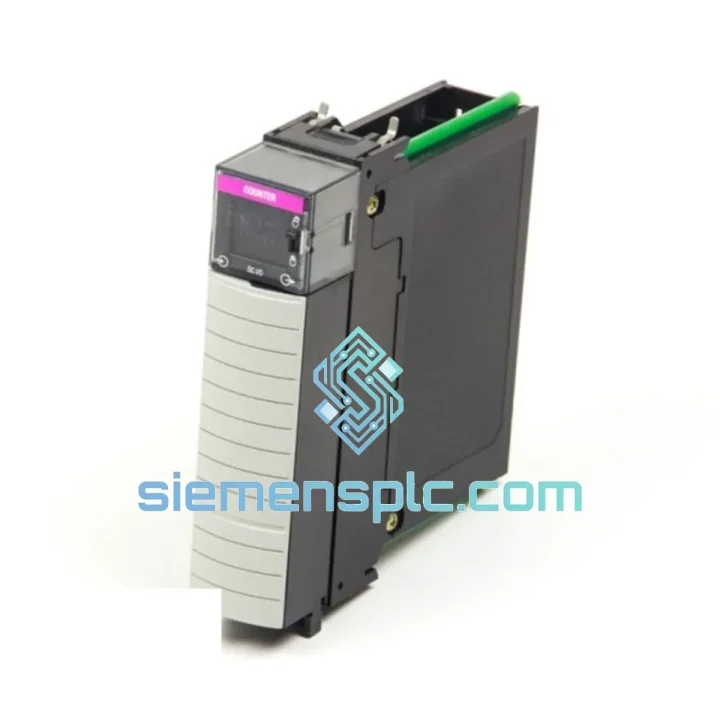

Allen-Bradley 1756-HSC High-Speed Counter Module – ControlLogix

Allen-Bradley 1756-HSC: Deterministic Pulse Acquisition in the ControlLogix Backplane

The 1756-HSC is a dedicated high-speed counter module engineered for the Allen-Bradley ControlLogix platform. Its core function within a control loop is to decouple time-critical pulse acquisition from the CPU scan cycle. Where a standard digital input module relies on the controller’s I/O scan to sample encoder or proximity sensor signals, the 1756-HSC captures, accumulates, and acts on pulse trains autonomously — at rates up to 1 MHz — without consuming CPU execution time. This architectural separation is the defining reason engineers specify this module in applications where missed counts or scan-jitter-induced position errors are operationally unacceptable.

Four independent counter channels allow simultaneous monitoring of multiple encoder axes or flow-meter inputs within a single chassis slot. Each channel operates with its own configurable counting mode, preset register, and output trigger logic, making the module a self-contained motion-feedback subsystem rather than a passive data collector.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1756-HSC implements a field-programmable gate array (FPGA)-based counting engine on its local processor board. This architecture is significant: the FPGA executes count accumulation, preset comparison, and output assertion in hardware logic — not firmware loops — which eliminates the latency variability inherent in microcontroller-based counter designs. The result is a deterministic output response time measured in microseconds rather than milliseconds.

Input Signal Conditioning and EMC Architecture: Each counter input channel passes through an optocoupler isolation stage before reaching the FPGA fabric. The isolation barrier provides galvanic separation between field wiring and backplane logic, with a common-mode rejection ratio sufficient to suppress the 24 V DC transients typical of inductive proximity sensor switching. The software-selectable input voltage threshold (5 V / 12 V / 24 V) is implemented via a resistor-divider network and comparator stage ahead of the optocoupler, allowing the same physical input circuit to interface with TTL-level encoder outputs and 24 V DC PNP proximity sensors without hardware modification.

Quadrature Decode Logic: In ×4 quadrature mode, the FPGA decodes both the A and B channel edges on both rising and falling transitions, generating four count events per encoder cycle. This is implemented as a state machine within the FPGA that tracks the A/B phase relationship to determine direction and rejects illegal state transitions (simultaneous A and B edges) as noise, providing inherent quadrature error filtering without software intervention.

Preset and Rollover Registers: Each channel maintains a 32-bit accumulator with configurable preset and rollover values stored in on-module registers. When the accumulator reaches the preset value, the corresponding sourcing output asserts within the FPGA’s output latch cycle — independent of the ControlLogix CPU scan. This hardware-level output response is critical in applications such as label pitch control or die protection, where a scan-cycle delay of even 10 ms would result in mechanical damage or product defects.

Backplane Communication Protocol: The module communicates with the ControlLogix CPU via the proprietary ControlBus backplane at a fixed update rate. Counter data is transferred as a structured tag block, making all four channel accumulators, status bits, and output states directly addressable in the Logix tag database without requiring explicit message instructions.

System Integration Benefits

• Zero-Jitter Count Acquisition: FPGA-based hardware counting eliminates scan-cycle dependency, ensuring no pulse is missed regardless of CPU load or communication traffic on the backplane.
• Single-Slot Multi-Axis Coverage: Four independent channels in one chassis slot reduce slot consumption compared to deploying multiple single-channel counter modules, preserving backplane capacity for additional I/O or communication modules.
• Native Studio 5000 Tag Integration: All module data — accumulators, rates, output states, and fault flags — appear as structured tags in the Logix controller database, enabling direct use in ladder, function block, and structured text programs without gateway mapping or custom driver development.
• Hardware-Triggered Outputs Reduce PLC Dependency: The four sourcing outputs can be configured to assert based on preset comparisons executed entirely within the module, removing the output response from the CPU scan path and reducing system reaction time by one full scan cycle.
• Multi-Voltage Sensor Compatibility: Software-selectable input thresholds (5 V / 12 V / 24 V) allow a single module to interface with mixed sensor populations — TTL encoders, 12 V HTL encoders, and 24 V DC proximity sensors — within the same application without additional signal conditioning hardware.
• Diagnostic Transparency via Module Fault Tags: The module exposes channel-level fault bits (open-wire detection, output overcurrent, and configuration mismatch) as readable tags in the controller, enabling structured fault handling routines and HMI alarm integration without polling external hardware.
• Quadrature ×4 Resolution for Sub-Millimeter Positioning: In servo and linear positioning applications, ×4 quadrature decoding multiplies effective encoder resolution by four, allowing position tracking to sub-millimeter accuracy with standard 1000 PPR encoders without increasing encoder cost.
• Period and Rate Measurement Modes: Beyond simple counting, the module can measure the time between pulses (period mode) or compute a rolling pulse rate (rate mode), providing velocity feedback directly from the module without requiring the CPU to perform time-stamped interrupt calculations.
• Scalable Architecture Within ControlLogix Family: The 1756-HSC operates identically across all ControlLogix chassis sizes (4-slot to 17-slot) and is compatible with both standard ControlLogix and redundant ControlLogix configurations, providing a consistent programming model as system scale increases.
• Add-On Profile (AOP) Support: Rockwell Automation provides a certified AOP for the 1756-HSC, enabling automatic tag generation, parameter configuration, and online diagnostics within Studio 5000 without manual tag creation or custom EDS file management.

Quality Assurance & Global Logistics

Every 1756-HSC unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Visual inspection confirms label integrity, connector pin condition, and housing conformance against OEM reference samples. Firmware series and hardware revision are documented and included with the shipment record. Where test equipment is available, counter input channels and sourcing outputs are exercised under load to verify functional operation prior to packaging.

Anti-counterfeit screening cross-references PCB silk-screen markings, component date codes, and board layer profiles against known-genuine units. Supply chain traceability records are retained for each unit; certificates of conformance are available on request for procurement audit purposes.

International shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide, with full waybill tracking provided at time of dispatch. Standard in-stock lead time is 1–3 business days ex-Xiamen. Export documentation — including commercial invoice, packing list, and HS code declaration — is prepared in compliance with Chinese customs regulations and destination-country import requirements. ESD-safe inner packaging and foam-lined outer cartons are used for all shipments to prevent transit damage.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are handled directly by our technical team; replacement or credit is issued upon confirmation of the defect. This warranty applies to genuine Allen-Bradley product supplied through verified distribution channels.
