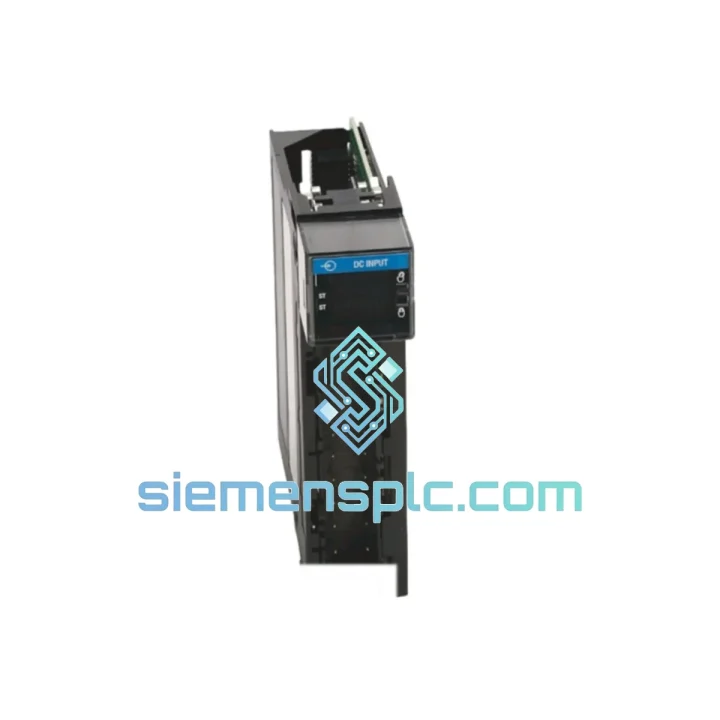

Allen-Bradley 1756-IB16/A Digital Input Module

1756-IB16/A Down? Every Minute of Downtime Costs You — We Ship Today

Your ControlLogix rack just threw a module fault. The line is stopped. Maintenance is on the phone. You already know the part number: 1756-IB16/A. What you need right now is not a datasheet — you need a replacement module on a truck today. That is exactly what we do.

We stock the Allen-Bradley 1756-IB16/A — a 16-point, 24VDC sinking digital input module for the ControlLogix 1756 platform — in our Xiamen warehouse. Orders confirmed before 15:00 CST ship same day via DHL Express or FedEx International Priority. Most destinations in Southeast Asia receive delivery within 24–48 hours. Europe and North America within 3–5 business days.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, these are the failure patterns I see repeatedly on the 1756-IB16/A — and the steps that actually fix them fast.

Fault Code 16#0001 — Module Not Responding / Communication Fault
Nine times out of ten this is a bad backplane connection, not a dead module. Before you pull the card: power down the chassis, reseat the module firmly until you feel the backplane connector click, then power back up. If the fault clears, log it and monitor. If it returns within 24 hours, the backplane slot itself may have worn contacts — move the module to an adjacent slot and re-test. Only if the fault persists in a known-good slot is the module itself suspect.

Fault Code 16#0010 — Field Power Loss
This is not a module failure. The 1756-IB16/A monitors field-side 24VDC through the RTB. Check your field power fuse first. Check terminal block seating second — a partially inserted RTB will drop field power intermittently under vibration. Torque all RTB screws to 0.9 N·m.

Replacement Procedure — Step by Step

1. In Studio 5000 Logix Designer, go online and inhibit the module (right-click → Properties → Connection → Inhibit). This prevents a major fault on the controller while you swap hardware.
2. Document the module’s slot number, chassis number, and the I/O tree path. Take a photo of the RTB wiring before disconnecting.
3. Power down the field-side 24VDC supply feeding this module. Do NOT rely on the chassis power supply alone — field wiring may carry live voltage from external sources.
4. Loosen the RTB captive screws and pull the terminal block straight out. Label it if multiple RTBs are present in the chassis.
5. Press the module’s top and bottom locking tabs simultaneously and slide the module out of the chassis slot.
6. Insert the replacement 1756-IB16/A into the same slot. The module is keyed — it will only seat correctly. Push until both locking tabs click.
7. Reconnect the RTB. Verify wire positions against your photo. Restore field-side 24VDC power.
8. In Studio 5000, un-inhibit the module. The controller will automatically download the module configuration stored in the project. No re-programming required — the configuration lives in the controller, not the module.
9. Verify all 16 input points in the tag monitor. Cycle each field device if possible to confirm end-to-end signal integrity.

Firmware & Series Compatibility Note
The /A series revision requires no firmware update on the module itself — there is no user-flashable firmware on this card. Controller firmware v16 and above supports it natively. If you are running an L8x controller at v32+, the module will enumerate without issue. The /A and /B series revisions are functionally interchangeable in the same slot.

Address Configuration
Unlike some legacy remote I/O systems, the 1756-IB16/A has no DIP switches or rotary address selectors. Slot addressing is automatic — the module reports its physical slot position to the controller over the backplane. No manual addressing is required after replacement.

Reliability in Harsh Conditions

The 1756-IB16/A was not designed for a climate-controlled server room. It was built for the floor — and it shows in the design choices Rockwell made.

The group isolation architecture (two isolated groups of 8 inputs each) means that a wiring fault or voltage spike on one group cannot propagate to the other. In automotive body shops where weld spatter and ground loops are facts of life, this isolation boundary has saved more than a few production lines from cascading failures.

The conformal coating on the PCB provides a meaningful barrier against humidity and airborne contaminants — condensation from temperature cycling, coolant mist in machining environments, and the fine metallic dust common in stamping plants. Operating humidity tolerance of 5–95% non-condensing is not a marketing figure; it reflects real-world validation testing.

Vibration resistance meets IEC 60068-2-6 requirements. In applications mounted on compressor skids or near large reciprocating machinery, the module’s backplane connector design maintains contact integrity under continuous vibration loads that would loosen lesser hardware within weeks.

EMC immunity is rated to IEC 61000-4 series standards — conducted and radiated immunity, ESD, electrical fast transient, and surge. In plants running multiple large VFDs, this matters. The 1756-IB16/A will not generate spurious input transitions from drive switching noise, which is a common failure mode on cheaper third-party I/O cards.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port.

Standard Dispatch Process:

• Order confirmed → same-day picking and packing (cutoff: 15:00 CST)
• Export documentation prepared: commercial invoice, packing list, certificate of origin, HS Code 8537.10
• Shipment handed to DHL Express or FedEx International Priority carrier
• Tracking number sent to buyer within 2 hours of dispatch

Estimated Transit Times from Xiamen:

• Southeast Asia (SG, MY, TH, VN, ID): 1–2 business days
• Northeast Asia (JP, KR, TW): 2–3 business days
• Middle East (AE, SA, QA): 2–4 business days
• Europe (DE, NL, FR, GB, PL): 3–5 business days
• North America (US, CA, MX): 3–5 business days
• Australia / New Zealand: 3–4 business days

For shipments to regulated industries (oil & gas, nuclear, defense), we can provide additional documentation including material test reports and third-party inspection certificates upon request. Contact us before placing your order to confirm documentation requirements and avoid customs delays.

All units are packed in anti-static ESD bags, foam-cushioned, and shipped in double-wall corrugated cartons rated for international air freight handling. We have not had a transit damage claim in over two years of daily international shipments.
