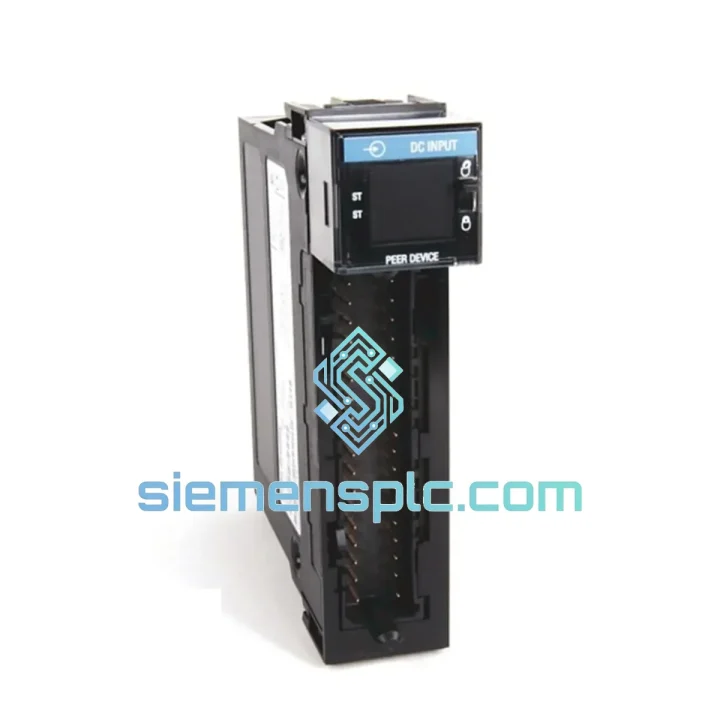

Allen-Bradley 1756-IB16IF Digital Input Module

1756-IB16IF Down? Every Minute Costs You Money — We Ship Today

A failed 1756-IB16IF doesn’t just drop 16 input points — it kills your timestamped event chain. SOE logs go dark. Safety interlocks lose their audit trail. Motion sequences desynchronize. If your line is down right now, you already know the math: automotive stamping lines lose $10,000–$22,000 per hour; power generation trips can trigger regulatory penalties before the shift ends. The module sitting dead in your chassis is not the problem — the problem is every hour you spend waiting for a replacement.

We stock the Allen-Bradley 1756-IB16IF in Xiamen and ship globally via DHL Express and FedEx International Priority. Orders confirmed before 14:00 CST leave the same day. That’s the only number that matters when your plant manager is standing behind you.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Step 1 — Confirm the fault before you pull the module. In Studio 5000, navigate to the module’s Properties → Diagnostics tab. A solid red Module Fault LED paired with fault code 16#0001 (Communication Fault) or 16#0107 (Field Power Loss) tells you the module itself is the culprit, not the field wiring. If you’re seeing 16#0001 on a module that was working yesterday, check backplane seating first — a partially seated module will throw identical faults.

Step 2 — Document your filter settings before removal. The 1756-IB16IF stores per-channel filter times (0–32 ms) in the controller project, not in the module’s EEPROM. Your Studio 5000 project file holds this configuration. Before you pull the card, export the module configuration or screenshot the I/O tree. A replacement module inserted without matching filter settings will cause input bounce on channels wired to mechanical contacts — a fault that looks like field wiring noise but is actually a configuration mismatch.

Step 3 — Electronic keying. The 1756-IB16IF uses electronic keying by default. If your replacement unit has a different firmware revision than the original, Studio 5000 will reject it with a keying mismatch fault unless you set keying to “Compatible Module” or “Disable Keying” before insertion. Change this in the module’s Connection tab. After the replacement is confirmed stable, revert to “Exact Match” for production security.

Step 4 — CST timestamp re-synchronization. After hot-swap, the module re-acquires Coordinated System Time from the chassis backplane within one scan cycle. No manual intervention is required. However, if you are running a redundancy pair and the primary controller was in a faulted state during the swap, force a manual CST sync via the controller’s Diagnostics → Time Sync menu to ensure SOE log continuity.

Common fault codes at a glance:

• 16#0001 — Module not communicating. Check backplane seating, chassis power, and controller connection path.
• 16#0107 — Field-side 24V DC power lost. Check the field power supply and wiring to the module’s field power terminals.
• 16#0203 — Open wire detected on one or more input channels. Inspect field wiring continuity on the flagged channels.
• 16#0800 — Electronic keying mismatch. Adjust keying mode in Studio 5000 module properties before re-inserting the replacement.

Firmware note: CST timestamping requires the host ControlLogix controller to run firmware v16.xx or later (Studio 5000 Logix Designer v21+ recommended). If your controller is on an older firmware revision, the module will still function as a standard digital input card, but timestamp data will not be populated in the input tag structure. Verify controller firmware before assuming a hardware fault.

Reliability in Harsh Conditions

The 1756-IB16IF is not a commercial-grade board dressed up in an industrial enclosure. Rockwell Automation designed this module to operate continuously in environments that destroy lesser hardware. The conformal-coated PCB resists condensation and airborne contaminants — a real concern in food processing washdown areas and coastal petrochemical facilities where salt-laden air accelerates corrosion on unprotected copper traces.

Vibration tolerance meets IEC 68-2-6 standards, which means the module survives the continuous low-frequency vibration generated by large compressors, presses, and rotating machinery mounted on the same structural steel as the control panel. Field engineers who have pulled 1756-IB16IF modules from decade-old installations in steel mills report connector integrity and PCB condition that would be unacceptable on consumer-grade hardware — the gold-plated backplane connector pins show minimal oxidation even after years of thermal cycling between cold startups and full-load operating temperatures.

The 0–60°C operating range covers the vast majority of industrial panel environments without forced cooling. In applications where panel temperatures approach the upper limit — common in tropical climates or poorly ventilated enclosures — the module’s 4.5 W maximum dissipation is low enough that it contributes minimally to panel thermal load compared to drives and power supplies sharing the same enclosure.

Humidity tolerance at 5–95% non-condensing means the module handles the humidity swings common in facilities that open large bay doors for material handling — the kind of environment where cheaper I/O cards develop intermittent faults within 18 months. The 1756-IB16IF is built to outlast the production equipment it monitors.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and daily consolidated freight departures to DHL and FedEx international gateways. This geography is not accidental: it puts us within 24–48 hours transit time of most major industrial centers in Southeast Asia, and within 3–5 business days of Europe and North America via express air freight.

Standard express routing by region:

• Southeast Asia (Singapore, Thailand, Vietnam, Indonesia): DHL Express or FedEx IP — 1–3 business days door-to-door.
• Australia & New Zealand: DHL Express — 3–4 business days.
• Middle East (UAE, Saudi Arabia, Qatar): FedEx International Priority — 3–5 business days.
• Europe (Germany, UK, Netherlands, France): DHL Express Worldwide — 4–6 business days.
• North America (USA, Canada, Mexico): FedEx International Priority — 4–6 business days.
• South America (Brazil, Chile, Colombia): DHL Express — 5–7 business days.

Every shipment includes full commercial invoice, packing list, and country-of-origin documentation. For customers in countries with specific import requirements (CE declarations, UKCA, or local customs pre-clearance), we prepare the necessary documentation at no additional charge. Shipment tracking numbers are provided within 2 hours of dispatch. For orders above USD 5,000, we recommend cargo insurance — we can arrange this on your behalf at cost.

Urgent same-day dispatch is available for orders confirmed and paid before 14:00 CST. If your production line is down right now, call or WhatsApp us directly — we will prioritize your order in the pick-and-pack queue and provide a dispatch confirmation within the hour.
