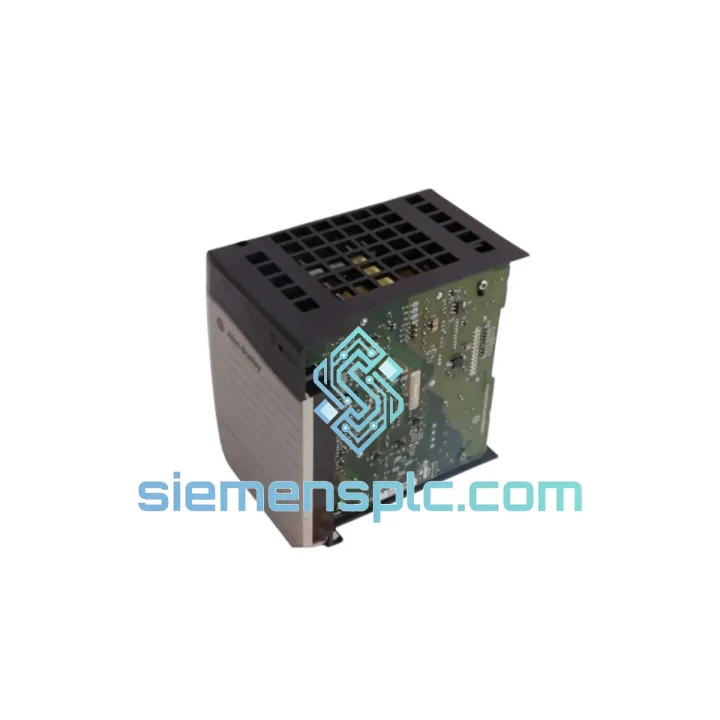

Allen-Bradley 1756-IF4XOF2F Analog I/O Module

1756-IF4XOF2F Down? Every Minute of Downtime Costs You Money — We Ship Today

Your ControlLogix rack just threw a fault. The 1756-IF4XOF2F is dead. Production is stopped. You’ve already called your local distributor — lead time is 6 weeks. That’s not an option.

We stock the Allen-Bradley 1756-IF4XOF2F in Xiamen and ship globally via DHL/FedEx Express. Most orders clear customs and land on your bench within 3–5 business days. For critical shutdowns, same-day dispatch is available on confirmed orders placed before 4 PM CST.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 1756-IF4XOF2F fails in predictable ways. Here’s what field experience tells you before you even open the chassis:

Fault Code 16#0001 — Channel Underrange / Overrange: Almost always a wiring issue on the field side — shorted 4–20 mA loop or open circuit on a voltage input. Before condemning the module, check your terminal block (1756-TBCH) for loose ferrules and verify loop power supply voltage. If the fault persists after wiring checks, the input ADC on that channel has likely failed.

Fault Code 16#0010 — Calibration Error: This surfaces after a firmware mismatch or after the module has been in a high-vibration environment for extended periods. The internal calibration reference drifts. A module showing this code cannot be field-calibrated — replacement is the only fix.

Fault Code 16#0020 — Communication Fault / Module Not Responding: Nine times out of ten this is a backplane connector issue. Pull the module, inspect the backplane edge connector for bent pins or oxidation, reseat firmly. If the fault clears momentarily then returns, the backplane connector on the module itself is damaged — replace the module.

Replacement Procedure — Step by Step:

• Step 1 — Inhibit the module in Studio 5000 before physical removal. Right-click the module in the I/O tree → Properties → Connection tab → check “Inhibit Module”. This prevents a major fault on the controller while you swap hardware.
• Step 2 — Document your wiring. Photograph the terminal block before disconnecting. The 1756-IF4XOF2F uses a removable 1756-TBCH wiring arm — you can transfer it directly to the new module without rewiring if the arm is undamaged.
• Step 3 — Verify Series and firmware compatibility. The 1756-IF4XOF2F has Series A and Series B variants. Series B introduced enhanced diagnostics. Check your existing module’s label for the series letter. Mixing series in the same chassis is supported but confirm your Studio 5000 project AOP version matches.
• Step 4 — Slot addressing. The 1756-IF4XOF2F uses chassis-slot-based addressing — no DIP switches, no rotary dials. The replacement module inherits the slot address automatically when inserted into the same physical slot. No address configuration required.
• Step 5 — Uninhibit and verify. After seating the new module and reconnecting the wiring arm, uninhibit the module in Studio 5000. Monitor the channel data in the controller tags for 2–3 minutes. Confirm all 4 input channels are reading within expected engineering unit ranges and both output channels are responding to commanded values.
• Step 6 — Calibration check. If your process requires tight accuracy (±0.1% or better), run a channel calibration via the module properties in Studio 5000 after replacement. For standard 4–20 mA loops, factory calibration is typically sufficient.

Common Mistake: Engineers sometimes replace the module without checking the 1756-TBCH wiring arm condition. A cracked or corroded wiring arm will cause intermittent channel faults on the new module within days. Always inspect the arm before reuse.

Reliability in Harsh Conditions

The ControlLogix 1756 platform was engineered for environments that would destroy consumer-grade electronics. The 1756-IF4XOF2F specifically addresses the three failure modes most common in heavy industrial settings:

Vibration: The module’s PCB uses conformal coating and through-hole mounting for critical components. In applications with continuous mechanical vibration — compressor rooms, press lines, mining conveyors — the module maintains signal integrity where surface-mount-only designs fail within months. Rated to IEC 60068-2-6 vibration testing standards.

Thermal Cycling: Industrial environments rarely maintain stable temperatures. Furnace proximity, seasonal HVAC failures, and heat generated by adjacent drives create thermal stress. The 1756-IF4XOF2F’s 0°C to 60°C operating range with -40°C to 85°C storage tolerance means it survives cold startups and summer heat events without capacitor degradation or solder joint fatigue that plagues cheaper alternatives.

Electrical Noise: The channel-to-channel and channel-to-backplane isolation is not a marketing feature — it’s the reason this module is specified in oil & gas, power generation, and chemical processing. Variable frequency drives, welding equipment, and large motor starters inject common-mode noise that corrupts unprotected analog signals. The 1756-IF4XOF2F’s isolation architecture rejects this noise at the hardware level, before it ever reaches your control loop.

Units shipped from our Xiamen warehouse are stored in climate-controlled conditions with ESD protection. Each module is individually bagged in anti-static packaging with desiccant. We do not ship modules loose in bulk packaging.

Global Express Logistics

Downtime doesn’t wait for standard freight. Our logistics process is built around one objective: getting the module on your bench as fast as physically possible.

Order Cutoff: Orders confirmed with payment or PO before 16:00 CST ship same business day from our Xiamen warehouse. Orders received after cutoff ship the following morning.

Carrier Selection: We use DHL Express Worldwide and FedEx International Priority as primary carriers. Carrier selection is based on destination country performance data — we route to whichever carrier has the faster current transit time to your location.

Transit Times (from Xiamen):

• Southeast Asia (SG, MY, TH, VN): 2–3 business days
• Northeast Asia (JP, KR, TW): 2–4 business days
• Middle East (AE, SA, QA): 3–5 business days
• Europe (DE, NL, FR, UK, PL): 4–6 business days
• North America (US, CA, MX): 4–7 business days
• Australia / New Zealand: 3–5 business days
• South America (BR, CL, CO): 6–10 business days

Export Documentation: Every international shipment includes a commercial invoice, packing list, and certificate of origin. HS Code 8537.10 is pre-declared for customs clearance. For countries requiring additional import permits or FORM E certificates, contact us 24 hours before order placement.

Tracking: A DHL or FedEx tracking number is emailed within 2 hours of dispatch. For critical shipments, we provide proactive status updates at key transit milestones.

Emergency Freight: For genuine plant-down situations, we can arrange DHL On Demand Delivery with airport-to-airport express options. Contact us directly on WhatsApp for emergency freight coordination — this is not available through the standard checkout flow.
