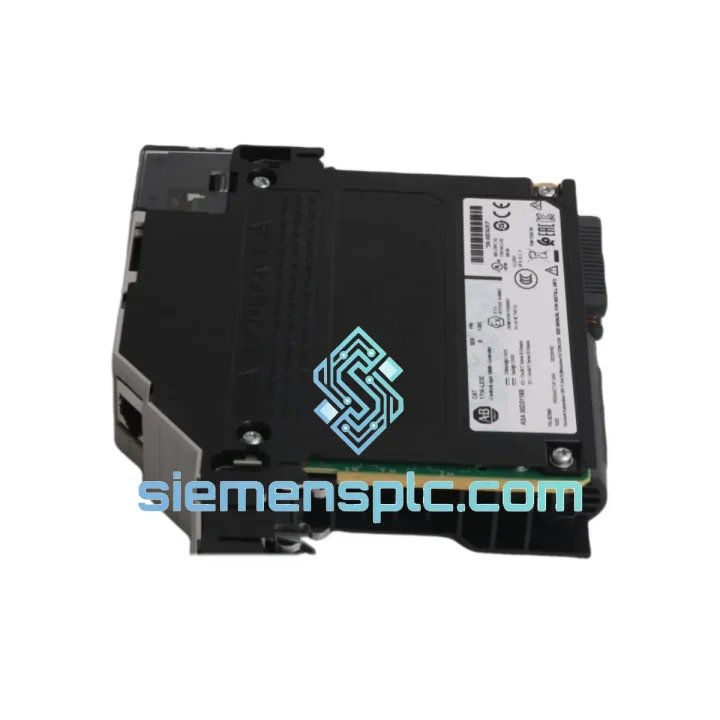

Allen-Bradley 1756-L83ES Safety PLC – ControlLogix 5580

Allen-Bradley 1756-L83ES: Integrated Safety and Standard Control on a Unified ControlLogix 5580 Backplane

The 1756-L83ES is Rockwell Automation’s Enhanced Safety variant within the ControlLogix 5580 processor family. It occupies a single slot in any 1756-series chassis and executes both standard control tasks and IEC 61508 SIL 2–rated safety tasks concurrently on one processing core, with hardware-enforced memory partitioning that prevents cross-contamination between safety and non-safety data domains. For plant engineers consolidating a legacy dual-PLC architecture — one standard controller, one dedicated safety PLC — into a single chassis, the 1756-L83ES eliminates the inter-controller safety communication overhead that historically introduced latency into emergency shutdown sequences.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 5580-series processor architecture departs from the 5570 generation in two structurally significant ways: the move to a 64-bit multi-core SoC and the integration of a dedicated safety co-processor partition rather than a time-sliced safety task on a shared core.

Dual-Domain Memory Architecture. The 1756-L83ES enforces a strict hardware boundary between the standard program memory region and the safety memory region. Write access to safety data tags from standard tasks is blocked at the memory controller level — not merely at the software compiler level. This means a firmware bug or an unchecked pointer in a standard AOI cannot corrupt a safety interlock state, a guarantee that software-only separation cannot provide. The safety memory region is also subject to continuous background CRC verification; any single-bit corruption triggers a controller fault and initiates a safe-state transition within the configured safety task watchdog period.

Backplane Bus Throughput. The ControlLogix 5580 backplane operates at a significantly higher bandwidth than the 5570 generation, enabling the 1756-L83ES to sustain deterministic I/O scan cycles even when the chassis is populated with high-density analog modules (e.g., 1756-IF16 at 16 channels per slot) alongside safety I/O modules. In practice, a fully loaded 17-slot chassis with mixed standard and safety I/O can maintain a 10 ms safety task period without backplane contention causing task overruns — a critical parameter for SIL 2 verification calculations that require a defined and bounded proof-test interval.

EMC Design and Isolation. The module’s internal DC/DC converter and signal conditioning circuitry are designed to meet IEC 61000-4-4 (electrical fast transient, 2 kV) and IEC 61000-4-5 (surge immunity, 1 kV line-to-line) without external filtering. The dual-port EtherNet/IP interface includes transformer-coupled isolation on both RJ-45 ports, preventing ground loop currents from propagating into the controller’s logic supply — a common failure mode in large industrial panels where multiple earthing points exist at different potentials.

CIP Safety Transport Layer. Unlike traditional hardwired safety circuits, CIP Safety encapsulates safety data within a standard EtherNet/IP packet using a 32-bit CRC and a time-stamp mechanism that detects message delay, repetition, insertion, and data corruption independently of the underlying network infrastructure. The 1756-L83ES acts as a CIP Safety originator, polling safety I/O devices (e.g., 1791DS distributed safety I/O, GuardLogix safety drives) at configurable Requested Packet Intervals (RPI) as low as 1 ms, with the safety connection timeout configured to trigger a safe-state output within a bounded time window.

Firmware Integrity and Update Mechanism. ControlFLASH Plus supports authenticated firmware updates over EtherNet/IP. The bootloader verifies a digital signature on the firmware image before committing it to flash, preventing unauthorized or corrupted firmware from being loaded. This is particularly relevant for IEC 62443 cybersecurity compliance in process industries where firmware provenance must be documented in the safety lifecycle record.

System Integration Benefits

• Consolidated Safety and Standard Architecture: A single 1756-L83ES replaces the traditional two-controller topology (one standard PLC + one dedicated safety PLC), reducing chassis slots, power supply loading, and inter-controller network infrastructure. Panel footprint reduction of 30–40% is achievable in typical ESD system retrofits.
• Deterministic Safety Task Execution: The safety task executes at a fixed, configurable period (minimum 1 ms) with a hardware watchdog that is independent of the standard task scheduler. Standard task overruns do not delay safety task execution, preserving the timing assumptions embedded in the SIL 2 verification calculation.
• Scalable I/O Architecture: Compatible with the complete 1756 I/O module library — including 1756-IB16S and 1756-OB16S safety digital I/O, 1756-IF16S safety analog input, and all standard 1756 analog and digital modules — allowing a single controller to manage both process control loops and safety instrumented functions within the same chassis.
• Native EtherNet/IP Integration: The embedded dual-port switch supports Device Level Ring (DLR) topology, providing media redundancy without an external managed switch. In the event of a single cable break, the ring self-heals in under 3 ms, maintaining continuous I/O communication without controller intervention.
• Studio 5000 Unified Engineering Environment: Standard and safety logic are programmed, documented, and version-controlled within a single Studio 5000 project file. Safety-tagged variables are visually distinguished and access-controlled, reducing the risk of inadvertent modification during routine maintenance edits.
• FactoryTalk Ecosystem Compatibility: Native integration with FactoryTalk View SE (HMI), FactoryTalk Historian (process data archiving), and FactoryTalk AssetCentre (change management and audit trail) provides end-to-end data visibility from field device to enterprise historian without OPC gateway overhead.
• Diagnostic Transparency: The controller exposes granular diagnostic data — safety task execution time, backplane utilization percentage, EtherNet/IP connection status per device, and safety I/O module health — directly as controller tags accessible from any HMI or SCADA system. Maintenance personnel can identify a degraded safety I/O connection without specialist tools or physical inspection of the panel.
• Online Program Modification: Studio 5000 supports online edits to standard tasks while the controller is in Run mode, enabling minor logic corrections during production without a planned shutdown. Safety task modifications require an offline download with a documented change authorization, consistent with IEC 61511 management of change requirements.
• SD Card Program Backup: The 1784-SD2 SD card slot allows automatic program backup on every download and one-button program restore on a replacement controller, reducing mean time to repair (MTTR) in the event of a controller hardware failure to under 15 minutes.
• ATEX Zone 2 Certification: The 1756-L83ES carries ATEX and IECEx Zone 2 certification, permitting installation in control panels located in areas with occasional explosive atmosphere risk — common in offshore platforms and chemical plant control rooms — without requiring a purged enclosure.

Quality Assurance & Global Logistics

Every 1756-L83ES unit supplied by siemensplc.com undergoes a structured pre-shipment verification protocol executed at our Xiamen, China facility:

• Authenticity Inspection: Physical examination of Rockwell Automation factory labeling, holographic certification marks, and date code consistency against known production batch records. Units with anomalous label fonts, adhesive patterns, or date code sequences are quarantined and not shipped.
• Power-On Functional Test: Each unit is powered in a 1756-series chassis, firmware version is confirmed, backplane communication is verified, and the controller’s self-test diagnostic sequence is observed to complete without fault codes.
• ESD-Safe Packaging: Modules are individually sealed in anti-static polyethylene bags with humidity indicator cards, then cushioned in pre-cut conductive foam within double-wall corrugated export cartons rated for international air freight handling.
• Documentation Package: Shipments include a commercial invoice, packing list, certificate of conformance, and — upon request — a third-party inspection report. All documents are provided in English and are formatted for customs clearance in EU, US, and Southeast Asian jurisdictions.
• Logistics Options: DHL Express (2–4 business days to most destinations), FedEx International Priority, and UPS Worldwide Express are available for urgent requirements. Sea freight consolidation is available for bulk orders of 5 units or more. Same-day dispatch is available for in-stock units ordered before 14:00 CST.
• 12-Month Warranty: All units carry a 12-month replacement warranty against manufacturing defects from the date of shipment. Warranty claims are processed within 5 business days of receipt of the returned unit.
