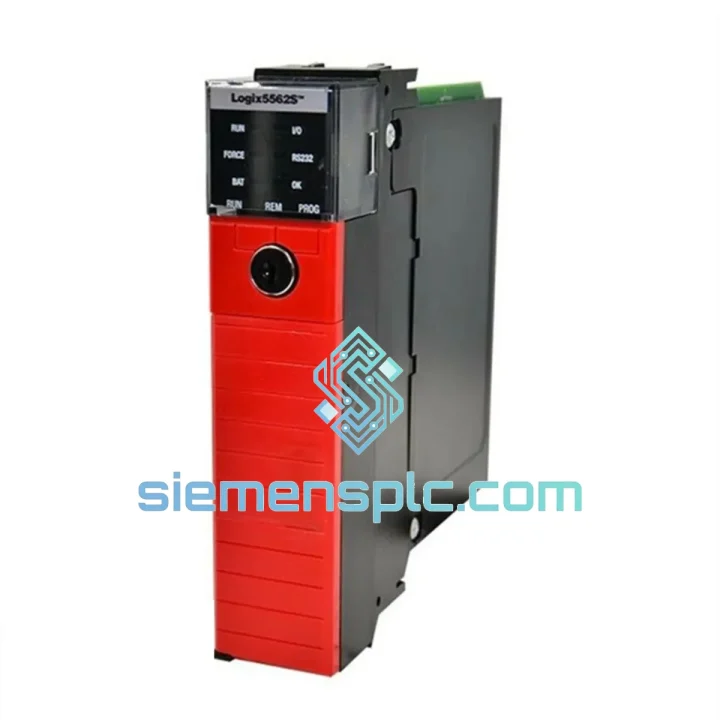

Allen-Bradley 1756-L62S Safety Processor

Allen-Bradley 1756-L62S GuardLogix 5562S Safety Processor — Stop the Clock on Your Downtime

Every hour a safety-rated line sits idle costs real money. On a typical automotive body shop or chemical reactor skid, unplanned SIS downtime runs USD $80,000–$300,000 per hour in lost production, emergency labour, and regulatory exposure. When the 1756-L62S is the failed component — the single-slot brain managing both your standard control tasks and your SIL 2 safety functions — you cannot afford a two-week lead time from a regional distributor. We stock this processor in Xiamen and ship DHL Express worldwide. Most destinations receive the unit within 72 hours of order confirmation.

The Allen-Bradley 1756-L62S is a dual-function GuardLogix 5562S processor: it executes standard ladder, function block, and structured text routines on the same silicon that enforces SIL 2 safety tasks under IEC 61508. Two megabytes of standard user memory plus one megabyte of dedicated safety memory handle up to 128,000 I/O points across a single 1756 ControlLogix chassis. If your plant runs GuardLogix and this module has failed, there is no cross-brand shortcut — you need the original catalog number, the correct firmware revision, and a unit that has been bench-tested before it leaves the warehouse.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common Fault Indicators Before Full Failure

The 1756-L62S rarely fails without warning. Field experience shows three recurring pre-failure signatures: intermittent Major Fault Code 71 (safety task watchdog timeout), unexpected Safety Task Signature mismatches after power cycling, and the processor dropping to Program Mode spontaneously during peak I/O scan loads. If you are seeing any of these, pull a backup of the project file immediately — the processor may still be readable. Do not wait for a hard fault.

Step-by-Step Replacement Procedure

1. Export the project file. In Studio 5000, go to File → Save As and save the .ACD file to a local drive. Confirm the safety task signature is recorded in the project properties. If the processor is already unresponsive, check if a previous backup exists on the engineering workstation or historian server.
2. Record the firmware revision. Navigate to Controller Properties → General in Studio 5000 while online. Note the major and minor firmware version (e.g., v32.011). The replacement unit must match this revision exactly, or you must upgrade/downgrade using ControlFlash before downloading the project.
3. De-energize and lock out the chassis. Follow your site LOTO procedure. The 1756-L62S does not support hot-swap — removing it under power will trigger a chassis fault and may corrupt safety task data in adjacent modules.
4. Seat the replacement module. Align the module with the chassis slot guides and press firmly until the latch clicks. There are no DIP switches or address jumpers on the 1756-L62S — slot addressing is handled automatically by the ControlLogix backplane arbitration logic.
5. Power up and verify self-diagnostics. The OK LED should cycle through amber (self-test) to solid green within 30 seconds. A flashing red OK LED indicates a firmware mismatch or corrupted module — do not proceed to download until this is resolved.
6. Download the project and lock the safety task. In Studio 5000, go online, download the .ACD file, and generate a new Safety Task Signature. Record the new signature in your site safety management system. This step is mandatory for IEC 61508 compliance — skipping it invalidates your SIL 2 certification.
7. Verify safety I/O connections. After download, check that all 1756-IB16S and 1756-OB16S safety I/O modules are in Run Mode and that safety tags are updating correctly. A Safety I/O Connection Fault at this stage typically indicates a safety network number (SNN) mismatch — reset the SNN on the affected I/O module via the module properties dialog.

Firmware Mismatch — The Most Common Swap Error

Approximately 60% of field replacement failures are caused by firmware version mismatch. The 1756-L62S will refuse to accept a project file compiled under a different major firmware version. If you ordered a unit with v30 firmware and your project was compiled under v32, you must run ControlFlash to upgrade the module firmware before downloading. ControlFlash is a free download from the Rockwell Automation support portal. We can pre-flash the replacement unit to your specified firmware revision before shipment — specify your required version when placing the order.

Safety Task Signature Mismatch After Swap

If Studio 5000 reports a Safety Task Signature mismatch after downloading to the replacement processor, this is expected behavior — it is not a fault. The signature is tied to the specific processor serial number. Generate a new signature, record it in your safety documentation, and update your site safety plan. This is a documentation step, not a hardware problem.

Reliability in Harsh Conditions

The 1756-L62S is built to the same mechanical and environmental specification as the broader ControlLogix platform, which has accumulated over two decades of field deployment in some of the most demanding industrial environments on the planet.

Vibration Resistance: The module is rated to IEC 60068-2-6 sinusoidal vibration testing — 2 g peak, 10–500 Hz sweep. The PCB assembly uses conformal coating on critical signal traces, and all connectors are friction-locked to the backplane. In offshore platform applications where structural vibration from wave action and rotating machinery is continuous, the 1756-L62S has demonstrated mean time between failures (MTBF) exceeding 300,000 hours in documented Rockwell Automation reliability data.

Thermal Performance: Operating range is 0 °C to +60 °C with a storage range of –40 °C to +85 °C. The processor uses passive thermal management — no internal fan, no moving parts. In high-ambient enclosures (e.g., outdoor NEMA 4X cabinets in tropical climates), the module operates reliably provided the chassis power supply’s thermal derating curve is respected. At +55 °C ambient, the 1756-PA72 power supply derate to approximately 80% of rated backplane current — verify your chassis power budget before installing in high-temperature environments.

Humidity and Contamination: The conformal-coated PCB resists condensation and airborne contaminants including sulfur compounds common in wastewater treatment and pulp-and-paper plants. The module is rated to 5–95% relative humidity non-condensing. In environments with active condensation risk (e.g., cold-start scenarios in humid climates), allow the chassis to reach ambient temperature before energizing.

Electromagnetic Compatibility: The 1756-L62S meets IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT/Burst), and IEC 61000-4-5 (surge) immunity requirements. In high-EMI environments — near large VFDs, arc furnaces, or MV switchgear — ensure the chassis is bonded to a low-impedance earth ground and that all cable shields are terminated at the panel earth bar, not at the module connector.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — a major international freight hub with direct DHL Express and FedEx International Priority connections to over 220 countries and territories. The logistics process from order confirmation to delivery works as follows:

Day 0 — Order Confirmation: You confirm the order and provide the delivery address and any customs documentation requirements (commercial invoice value, HS code declaration, end-user certificate if required for your country). We confirm stock availability and firmware revision within 2 hours of receiving your inquiry during business hours (UTC+8, Monday–Saturday).

Day 1 — Inspection and Dispatch: The unit undergoes final bench test, firmware verification, and documentation assembly. The module is packed in anti-static foam within a rigid outer carton. Shipping label, commercial invoice (HS code 8537.10), packing list, and certificate of origin are prepared. DHL or FedEx collection occurs same day for orders confirmed before 14:00 CST.

Days 2–4 — Transit: DHL Express Economy delivers to most of Europe, North America, and Southeast Asia within 3–5 business days. DHL Express Worldwide delivers to the same destinations in 2–3 business days. FedEx International Priority is available for time-critical shipments. Real-time tracking is provided via email and WhatsApp immediately after dispatch.

Customs Clearance: We prepare all export documentation in-house, including the commercial invoice with accurate HS code classification, packing list, and certificate of origin. For destinations requiring an import license or end-user certificate (e.g., certain Middle East and South Asian markets), advise us at the time of inquiry so we can prepare the correct documentation set. We have shipped to customers in the US, Germany, UK, Australia, UAE, India, Brazil, and 40+ additional countries without customs delays.

Emergency Same-Day Dispatch: For genuine plant-down emergencies, contact us via WhatsApp at +86 18359268345 before 12:00 CST. We will prioritize your order for same-day DHL collection and provide the tracking number within 4 hours of payment confirmation.
