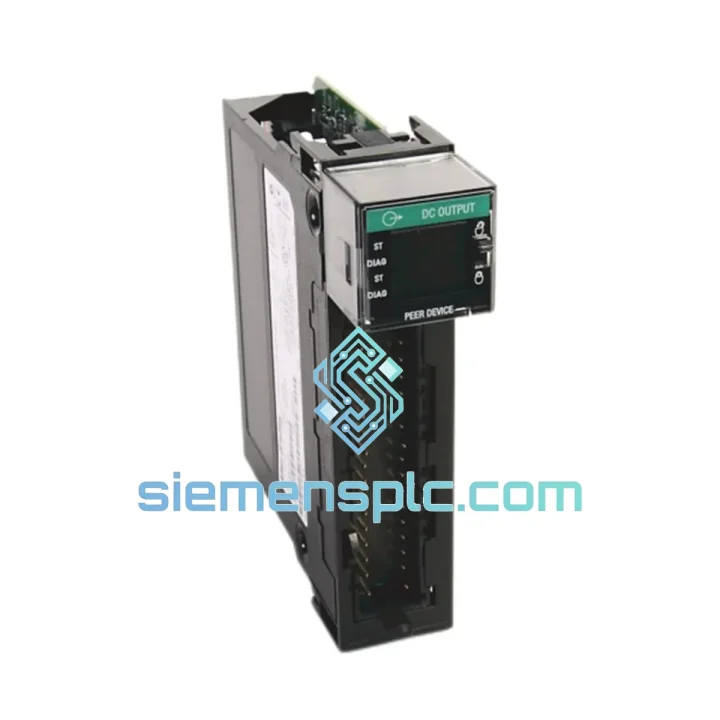

Allen-Bradley 1756-OB16IEF: 16-Point Fast Isolated DC Output Module for ControlLogix Deterministic Control

The 1756-OB16IEF occupies a precise functional niche within the ControlLogix 1756 platform: it is the designated solution for applications where output switching latency, channel-level electrical isolation, and Coordinated System Time (CST) scheduling must coexist in a single backplane slot. Unlike standard discrete output modules that share a common output rail, this module implements per-channel isolation — each of the 16 output points operates on an independent electrical island, eliminating the ground-loop coupling that degrades signal fidelity in mixed-load panels. The “IEF” suffix encodes three hardware capabilities: Isolated (I), Enhanced diagnostics (E), and Fast (F) — the last referring to a guaranteed output response time below 0.1 ms, a figure that places this module in the same timing class as dedicated motion I/O rather than conventional PLC discrete output cards.

In a control loop context, the 1756-OB16IEF functions as the final command executor between the ControlLogix CPU’s ladder or function block logic and the physical field actuators — solenoid valves, relay coils, motor contactors, indicator lamps, and servo drive enable lines. Its CST-scheduled output capability allows the CPU to pre-load a timestamp into the module’s onboard buffer; the module then fires the output at the exact CST epoch without waiting for the next PLC scan cycle. This decouples output timing from scan-time variability, which is critical in multi-axis motion coordination, high-speed packaging, and any application where output jitter above ±0.5 ms causes process defects.

The module’s diagnostic architecture provides continuous self-monitoring across three fault categories: open-wire detection (load current below threshold when output is commanded ON), short-circuit protection (current exceeding 2 A per point triggers electronic current limiting before thermal damage occurs), and over-temperature shutdown with automatic recovery. All fault states are reported back to the controller tag database in real time, enabling ladder logic to implement fault-specific recovery routines rather than generic E-stop responses.

From a system architecture standpoint, the 1756-OB16IEF is hot-swap compatible within any 1756 chassis. A module can be extracted and reinserted under live backplane power without requiring a controller restart or chassis power cycle — a capability that directly supports zero-downtime maintenance strategies in continuous-process industries. The removable terminal block (RTB) design further accelerates field replacement: the wiring harness stays connected to the RTB while the module body is swapped, reducing mean time to repair (MTTR) to under five minutes for a trained technician.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The isolation architecture of the 1756-OB16IEF is implemented at the transistor driver stage rather than at the terminal block level. Each output channel uses an optocoupler-based gate driver that physically separates the backplane logic domain (5 V DC CMOS) from the field power domain (10–31.2 V DC). This arrangement provides two measurable engineering benefits: first, a transient voltage spike on any field output — caused by inductive load switching — cannot propagate backward through the backplane bus and corrupt CPU memory or adjacent module logic; second, the 50 V DC channel-to-channel isolation rating allows the module to drive loads referenced to different field power commons within the same terminal block, a common requirement in multi-zone valve manifold wiring.

The fast-response timing (<0.1 ms) is achieved by eliminating the RC filter stages present in standard output modules. Conventional discrete outputs use RC networks to suppress contact bounce and noise, which introduces 1–10 ms of intentional delay. The 1756-OB16IEF bypasses this filtering in favour of electronic short-circuit limiting — the driver circuit monitors output current at a 10 µs sample rate and clamps current electronically before thermal damage occurs, removing the need for slow-acting thermal protection that would otherwise mandate the RC delay.

EMC performance is addressed through a combination of internal shielding planes on the module PCB and the chassis backplane’s own EMI gasket system. The module’s internal ground plane is tied to the chassis ground at the backplane connector, creating a low-impedance return path for high-frequency noise currents. This design is consistent with IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge immunity) test requirements, both of which are part of the CE marking compliance envelope for this module.

The CST scheduling engine within the module contains a local timestamp comparator that receives CST synchronisation packets from the ControlLogix CPU over the backplane at 1 ms intervals. When a scheduled output command is written to the module’s output buffer — including a target CST value — the comparator fires the output transistor at the exact CST epoch, independent of the CPU scan cycle. The resulting output jitter is below 10 µs, compared to ±1 scan period (typically ±2–10 ms) for non-scheduled outputs. This determinism is the primary reason the module is specified in servo drive enable circuits, where output timing directly affects axis synchronisation accuracy.

System Integration Benefits

• Deterministic output timing via CST scheduling — Outputs fire at pre-programmed CST timestamps with <10 µs jitter, decoupling field actuation timing from PLC scan-cycle variability. Essential for multi-axis motion coordination and high-speed interlock sequences.
• Per-channel electrical isolation eliminates ground-loop faults — Independent isolation on all 16 points prevents a ground fault on one output from affecting adjacent channels or backplane logic, reducing nuisance trips in mixed-load panels.
• Real-time diagnostic transparency in the controller tag database — Open-wire, short-circuit, and over-temperature faults are reported as individual boolean tags, enabling fault-specific HMI alarming and ladder-logic recovery routines without external diagnostic hardware.
• Configurable fault-state behaviour per output point — Each point independently supports Hold Last State, Force ON, or Force OFF on controller fault or communication loss, allowing process-safe shutdown profiles tailored to each actuator’s fail-safe requirement.
• Hot-swap replacement without chassis power interruption — Module extraction and insertion under live backplane power is supported, enabling maintenance in continuous-process environments where a full chassis power cycle is operationally unacceptable.
• Removable Terminal Block (RTB) reduces MTTR — Field wiring remains connected to the RTB during module swap. A trained technician can complete a module replacement in under five minutes, minimising production downtime.
• 2 A per-point current capacity drives high-inrush loads directly — Solenoid valves, relay coils, and motor contactors with inrush currents up to 2 A can be driven without interposing relays, reducing panel component count and wiring complexity.
• Seamless integration with Studio 5000 Add-On Profiles (AOPs) — The module’s AOP provides pre-built tag structures, diagnostic faceplates, and configuration wizards within Studio 5000 Logix Designer, reducing commissioning time compared to manual tag creation for generic I/O modules.
• Compatible with ControlLogix redundancy architectures — The module operates correctly in both standard and redundant ControlLogix chassis configurations, supporting switchover without output state loss when used with a 1756-RM2 redundancy module.
• Scalable slot placement across all 1756 chassis sizes — The module occupies a single backplane slot and is electrically compatible with all 1756 chassis variants (4- to 17-slot), allowing system designers to allocate output capacity without chassis redesign as I/O counts grow.

Quality Assurance & Global Logistics

Every 1756-OB16IEF unit supplied through siemensplc.com is sourced from verified distribution channels and undergoes a structured pre-shipment inspection protocol before leaving our Xiamen, China facility. Inspection covers physical label authenticity, firmware revision verification, connector and terminal block condition, and a functional bench test confirming output switching, diagnostic reporting, and backplane communication. Serial numbers are cross-referenced against known counterfeit databases prior to dispatch.

Packaging follows ESD-safe handling standards: anti-static bags, foam-cushioned inner cartons, and moisture-barrier outer packaging. Each shipment includes a commercial invoice, packing list, and HS code documentation (HS: 8537.10) to support customs clearance in all major import markets.

Logistics from Xiamen covers global destinations via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–5 business days to Europe and North America, and 1–3 business days to Southeast Asia. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All units carry a 12-month warranty from the date of shipment. Extended warranty and advance-replacement programmes are available for volume accounts.
