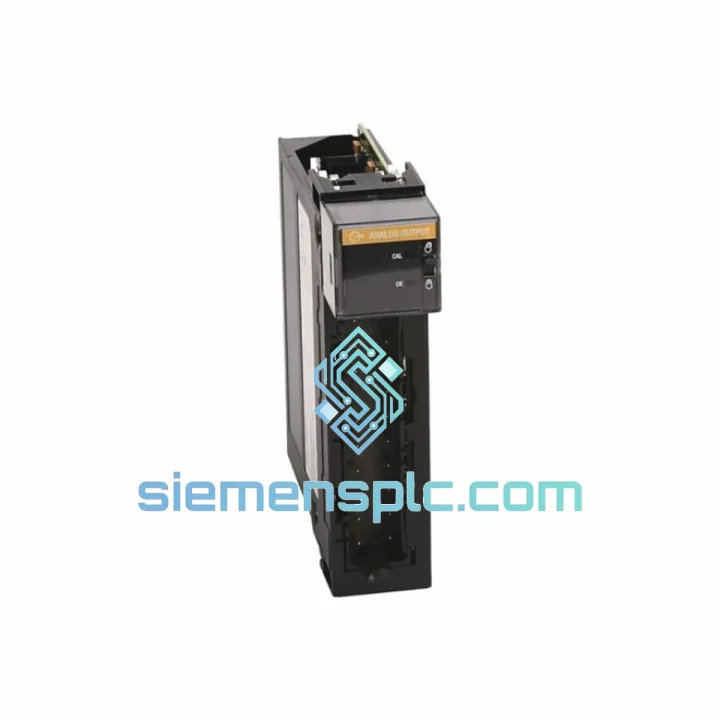

Allen-Bradley 1756-OF8K: 8-Channel Analog Output Module for ControlLogix Backplane Architecture

The 1756-OF8K occupies a single slot in any 1756-series ControlLogix chassis and delivers eight independently configurable analog output channels across two signal domains: current (4–20 mA) and voltage (±10 V / 0–10 V). Within a closed-loop process control architecture, this module functions as the terminal actuator interface — translating controller-computed setpoints into calibrated field-level signals that drive valve positioners, variable-frequency drives (VFDs), electro-pneumatic transducers, and proportional hydraulic valves. Its 16-bit digital-to-analog converter (DAC) provides 65,536 discrete output steps per channel, yielding a full-scale resolution of approximately 0.0015% — sufficient for tight PID regulation in pressure, flow, temperature, and level control loops where output granularity directly determines steady-state error.

Unlike lower-density analog modules that share a common DAC across multiple channels, the 1756-OF8K implements per-channel DAC architecture. Each channel maintains its own conversion pipeline, which eliminates inter-channel crosstalk and ensures that a fault or saturation condition on one output does not propagate to adjacent channels. This design is particularly relevant in multi-loop installations where independent actuators must respond to separate controller outputs without mutual interference.

The module communicates with the ControlLogix controller over the proprietary 1756 backplane bus, which operates at a sustained bandwidth sufficient to service all chassis modules within a single scan cycle. Output data is written to the module via the controller’s output image table at the configured Requested Packet Interval (RPI). The minimum achievable RPI for the 1756-OF8K is 1 ms, enabling sub-scan-cycle output updates for applications requiring high-speed closed-loop response — such as servo-adjacent tension control or fast-acting pressure regulation in compressor bypass loops.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1756-OF8K’s internal architecture is structured around three functional layers: the backplane interface logic, the per-channel DAC conversion stage, and the field-side output driver circuitry.

Backplane Interface & Data Latching: The module’s ASIC-based backplane interface receives output image data from the ControlLogix controller at the programmed RPI. Data is latched into a dual-port RAM buffer, which decouples the backplane communication cycle from the DAC conversion cycle. This buffering ensures that a momentary backplane arbitration delay does not introduce jitter into the analog output signal — a critical requirement in PID loops where output noise translates directly into actuator hunting.

Per-Channel 16-Bit DAC Architecture: Each of the eight channels is served by a dedicated 16-bit sigma-delta DAC. The sigma-delta topology oversamples the digital input at a high clock rate and applies noise shaping to push quantization noise above the signal bandwidth, resulting in an effective noise floor well below the 16-bit LSB level. This approach achieves the ±0.1% full-scale accuracy specification without requiring laser-trimmed resistor networks, and maintains accuracy across the 0°C–60°C operating range through on-chip temperature compensation.

EMC Design & Output Driver Isolation: The field-side output drivers are separated from the digital logic ground plane by a reinforced isolation barrier rated at 250 VAC continuous. This galvanic isolation prevents ground loop currents — common in large industrial installations where field devices may be grounded at different potential references — from corrupting the output signal or damaging the module’s digital circuitry. The PCB layout employs a split ground plane with controlled impedance traces on the analog output paths, and ferrite bead filtering on the field-side power rails to attenuate high-frequency conducted emissions in accordance with IEC 61000-4-6 requirements.

Fault State Logic & Safe-State Output Control: The module implements a hardware-enforced fault state machine. When the backplane communication watchdog timer expires (indicating controller fault or communication loss), the output driver logic transitions each channel to its pre-configured fault state independently — either hold-last-value, ramp-to-safe-value at a configurable rate, or immediate zero. This fault response is executed in hardware without controller intervention, ensuring deterministic safe-state behavior within one watchdog timeout period regardless of controller scan time.

Output Ramp Rate Limiting: A configurable digital ramp filter is implemented in the module firmware between the DAC input register and the DAC conversion stage. When enabled, this filter limits the rate of change of the output signal to a user-defined slew rate (engineering units per second), preventing step changes in the controller output tag from producing abrupt actuator movements that could cause process upsets or mechanical shock in valve and drive applications.

System Integration Benefits

• Deterministic Output Latency: With a minimum RPI of 1 ms and hardware-latched DAC conversion, the total controller-to-field latency is bounded and predictable — enabling accurate phase margin calculations in closed-loop control design.
• Per-Channel Signal Mode Flexibility: Current and voltage output modes are software-selectable per channel in Studio 5000, eliminating the need for hardware jumpers or separate module SKUs when field device requirements change during commissioning or plant modification.
• Integrated Engineering Unit Scaling: The module supports on-module scaling from raw DAC counts to engineering units (e.g., 0–100% valve position, 0–60 Hz drive reference), reducing controller ladder logic overhead and simplifying HMI tag configuration.
• Alarm and Limit Monitoring: Each channel supports configurable high/low alarm limits and rate-of-change detection, with status bits reported back to the controller input image — enabling the PLC program to detect actuator saturation or runaway conditions without additional field instrumentation.
• Hot-Swap Module Replacement: The 1756-OF8K supports removal and insertion under power (RIUP) within a live ControlLogix chassis. Replacement does not require a chassis power cycle, minimizing process downtime during maintenance operations.
• Removable Terminal Block (RTB) Wiring: Field wiring terminates on a removable terminal block that stays in the chassis when the module is extracted. This design allows module replacement without disturbing field wiring, reducing re-termination errors and commissioning time.
• Diagnostic Transparency via Controller Tags: The module populates a structured diagnostic tag set in the controller (channel fault status, output wire-off detection, field power loss indication) that is directly accessible in Studio 5000 and can be surfaced on SCADA/HMI displays without custom programming.
• Chassis Slot Flexibility: Compatible with all 1756-series chassis sizes (4, 7, 10, 13, 17-slot) and all ControlLogix controller families (L6x, L7x, L8x), providing a consistent hardware platform across plant-wide standardization programs.
• Studio 5000 Add-On Profile (AOP) Support: The module ships with a Rockwell-certified AOP that auto-populates module configuration parameters in Studio 5000, reducing manual data entry errors during project setup and enabling offline configuration verification before hardware installation.

Quality Assurance & Global Logistics

Every 1756-OF8K unit supplied through siemensplc.com is sourced from verified supply channels and subjected to a structured incoming inspection protocol before dispatch. Physical inspection covers label authenticity, PCB revision markings, connector pin condition, and housing integrity. Functional verification is performed on a live 1756 ControlLogix chassis: all eight output channels are exercised across the full current and voltage output ranges, DAC linearity is confirmed at 0%, 25%, 50%, 75%, and 100% of full scale, and fault state behavior is validated by simulating a controller communication loss event.

Units confirmed as genuine and fully functional are packaged in anti-static ESD shielding bags, placed in foam-lined cartons with corner protection, and sealed for international transit. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment to facilitate customs clearance in destination countries.

Logistics operations are based in Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Standard transit times to major industrial hubs: 2–3 business days to Southeast Asia, 3–5 business days to Europe and the Middle East, 4–6 business days to North America. Full shipment tracking is provided from dispatch to delivery. For time-critical procurement, same-day dispatch is available for orders confirmed before 14:00 CST.

All units carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of one business day, and replacement units are dispatched via express courier at no additional freight cost to the buyer.
