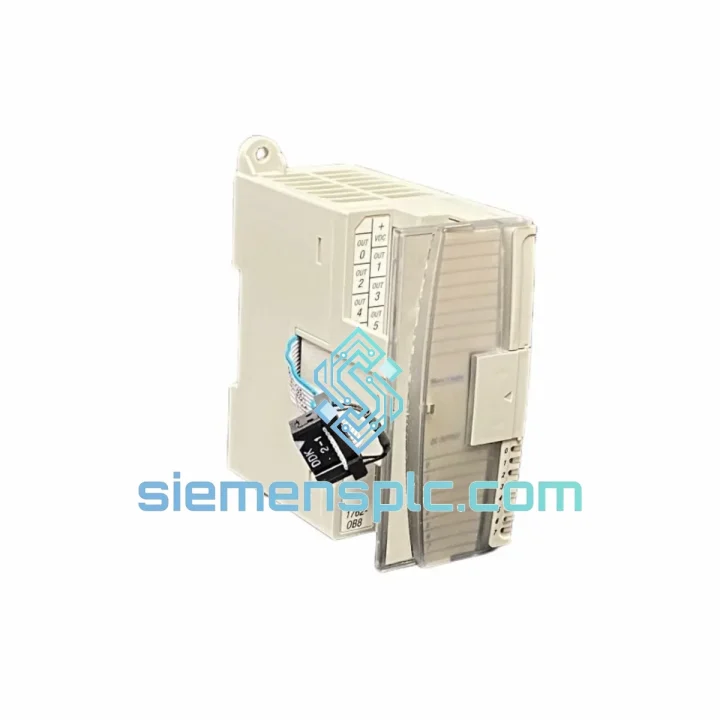

Allen-Bradley 1762-OA8 PLC Output Module – MicroLogix 1762 Series

Allen-Bradley 1762-OA8: 8-Point Triac AC Output Module in the MicroLogix Discrete I/O Architecture

The 1762-OA8 is an 8-point discrete AC output module within the Allen-Bradley MicroLogix 1762 expansion I/O family, manufactured by Rockwell Automation. It is designed to interface MicroLogix 1100, 1200, and 1500 controllers with field-side AC loads operating between 74 and 265 VAC at 47–63 Hz. Each output point is driven by a bidirectional triac (silicon-controlled rectifier pair), which provides solid-state switching without mechanical wear — a critical characteristic in applications requiring high-cycle-rate actuation of solenoid valves, motor contactors, and pilot devices.

Within the MicroLogix control architecture, the 1762-OA8 connects to the controller’s right-side expansion bus, drawing 75 mA at 5 VDC from the backplane. The module does not require an external 24 VDC auxiliary supply, which simplifies panel wiring and reduces the component count in compact machine enclosures. The eight output points are organized into two isolated groups of four (Group 0: O:0.0/0 through O:0.0/3; Group 1: O:0.0/4 through O:0.0/7), each group sharing a common terminal. This dual-group isolation architecture permits mixed-voltage field wiring — for example, 120 VAC devices on Group 0 and 240 VAC devices on Group 1 — without cross-contamination of field potentials.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The switching element in each output channel of the 1762-OA8 is a triac — a bidirectional thyristor that conducts on both half-cycles of the AC waveform. Unlike relay-based output modules (such as the 1762-OW8), the triac requires no mechanical actuation and has no contact bounce. Gate triggering is initiated by the module’s internal logic circuitry, which receives the output state from the MicroLogix backplane and translates it into a gate pulse synchronized to the AC zero-crossing region. This zero-crossing detection reduces inrush current transients when switching resistive and inductive loads, extending the service life of connected field devices.

The optical isolation barrier — rated at 1500 VAC — is implemented using a phototransistor-based optocoupler between the logic-side gate drive circuit and the triac gate. This galvanic separation ensures that field-side voltage transients, ground potential differences, and common-mode noise cannot propagate back through the backplane to the CPU or other I/O modules. In industrial environments where variable-frequency drives, large motor starters, and switching power supplies generate significant conducted and radiated EMI, this isolation layer is the primary defense mechanism for backplane signal integrity.

The dual-group common architecture (two isolated groups of four points) is implemented at the terminal block level, not through separate internal power rails. Each group’s common terminal is electrically independent, allowing the field engineer to connect two separate AC phases or two separate voltage levels without requiring additional isolation relays. The module’s internal PCB layout routes the two group commons through separate copper planes, maintaining creepage and clearance distances compliant with IEC 60664-1 for 300 V working voltage environments.

Thermal management is passive: the 4.5 W maximum dissipation is handled by the module’s polycarbonate housing and the natural convection airflow within the control panel. At full load (all 8 points at 0.5 A, 265 VAC), the triac junction temperature remains within the rated operating envelope at ambient temperatures up to 60°C, provided the panel maintains adequate airflow. Derating is required if the module is mounted in a sealed enclosure without forced ventilation above 45°C ambient.

System Integration Benefits

• Direct Backplane Communication, No Gateway Required: The 1762-OA8 communicates with the MicroLogix CPU via the native 1762 expansion bus at the controller’s scan cycle rate, eliminating the latency introduced by network-based I/O (e.g., EtherNet/IP remote I/O racks). Output state updates are deterministic within the controller’s program scan.
• RSLogix 500 / Studio 5000 Native Configuration: The module is auto-detected by RSLogix 500 during I/O configuration. No manual address mapping or driver installation is required. The I/O tree populates the output file (O:x.0) automatically, and fault bits are accessible in the status file (S:) for ladder logic diagnostics.
• Fault Transparency via Status File: The MicroLogix controller’s status file provides module fault detection at the slot level. A communication fault between the CPU and the 1762-OA8 sets the corresponding bit in the I/O fault word, enabling the application program to implement safe-state logic (e.g., de-energize all outputs) without relying on external watchdog hardware.
• Mixed-Voltage Field Wiring on a Single Module: The two isolated output groups allow 120 VAC and 240 VAC field devices to share one module slot, reducing the total module count in the expansion rack and lowering panel BOM cost in multi-voltage installations.
• Solid-State Switching for High-Cycle Applications: In applications requiring output switching rates above 10 cycles per minute (e.g., pneumatic valve cycling on packaging lines), the triac output eliminates the contact wear and arcing that limits relay output module service intervals. Mean time between failures (MTBF) for solid-state outputs significantly exceeds that of equivalent relay modules under identical load conditions.
• Compact 40 mm Width Preserves Panel Real Estate: The module’s 40 mm DIN-rail footprint allows up to 7 expansion modules in a standard MicroLogix 1200 system within a 400 mm wide panel section, maintaining the sub-compact PLC form factor that MicroLogix is specified for in OEM machine designs.
• Surge Current Tolerance for Inductive Load Switching: The 2 A per-point surge rating accommodates the inrush current of small motor contactors and solenoid coils at energization. This eliminates the need for external surge suppression on most standard industrial solenoid valves rated below 150 VA.
• Broad Operating Temperature Range Supports Harsh Environments: The 0°C to 60°C operating range covers the majority of industrial panel environments, including outdoor enclosures in temperate climates and machine-mounted panels in foundry or food processing facilities where ambient temperatures approach the upper limit.

Quality Assurance & Global Logistics

Every 1762-OA8 unit dispatched from our Xiamen, China facility is sourced as genuine Allen-Bradley / Rockwell Automation product. Units are verified against Rockwell Automation’s published catalog specifications prior to listing. Our inspection protocol covers housing integrity, terminal block condition, PCB marking authenticity, and label legibility. Where functional testing is performed, output switching is verified using a MicroLogix test rig with a calibrated AC load bank.

Xiamen’s geographic position — a major port city in Fujian Province with direct access to Xiamen Gaoqi International Airport and Xiamen Port — enables competitive transit times to global destinations. Standard express courier services (DHL, FedEx, UPS) achieve 3–7 business day delivery to most destinations in Southeast Asia, the Middle East, Europe, and North America. All shipments include full tracking, commercial invoice, and packing list documentation suitable for customs clearance. Export compliance documentation (including HS code classification) is prepared for each shipment.

A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed via email with a return merchandise authorization (RMA) number issued within 2 business days of claim submission. Replacement units are dispatched from Xiamen stock upon confirmation of the defective unit’s return or photographic evidence of failure.
