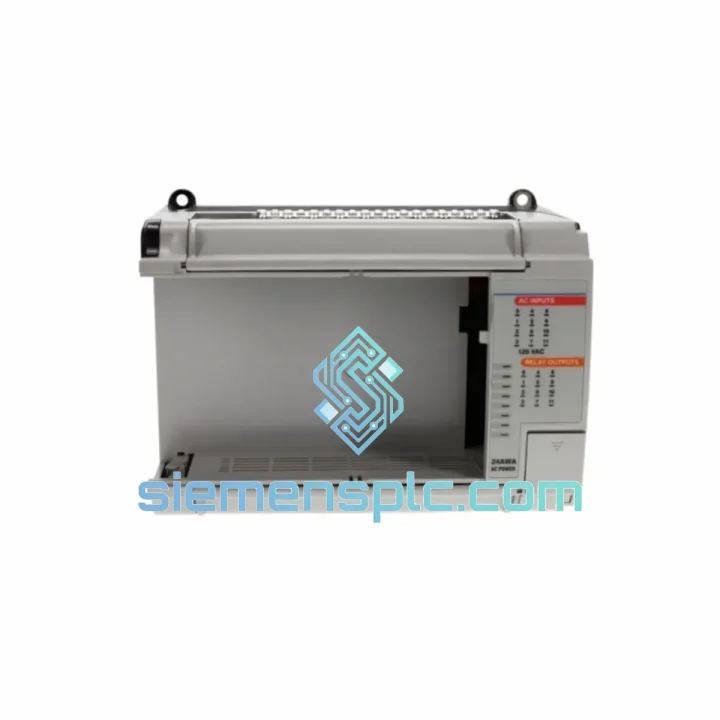

Allen-Bradley 1764-24AWA PLC Base Unit

1764-24AWA Down? Every Minute Costs Money — We Ship Same Day from Xiamen

Your MicroLogix 1500 base unit just failed. The line is stopped. Maintenance is on the phone. You need a verified, drop-in replacement — not a two-week lead time from a distributor. The Allen-Bradley 1764-24AWA we stock is inspected, powered-on tested, and sitting on the shelf in Xiamen right now. DHL Express to most destinations in 2–4 business days. That’s the difference between a shift lost and a shift recovered.

We’ve handled emergency breakdowns across Southeast Asia, the Middle East, and Europe. We know what it means when a packaging line or water treatment station goes dark. This listing exists for exactly that moment.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on MicroLogix systems, these are the failure modes and swap pitfalls that actually bite engineers on-site:

Common Fault Indicators on the 1764-24AWA:

• FAULT LED solid red: Processor detected a hardware fault on the base I/O. First step — cycle power and check for loose terminal block seating. If fault persists after power cycle, the base unit’s I/O ASIC is likely damaged, not the processor. Swap the base unit before condemning the processor.
• Outputs not energizing despite correct logic: Check relay contact wear on high-cycle outputs. The 1764-24AWA relay outputs are rated ~100,000 mechanical operations. On high-frequency applications (e.g., reject gates cycling every 2 seconds), contacts can weld or open-circuit within 18 months. Use a multimeter across the output terminals in RUN mode — if you read coil voltage but no contact closure, the relay is gone.
• Inputs reading erratically or floating: AC input filter capacitors degrade in high-humidity environments. If inputs toggle without field signal, check for condensation ingress at the terminal block area. Also verify input wiring is not sharing a neutral with a VFD — induced noise on shared neutrals is a classic ghost-input cause on AC-input PLCs.
• Backplane communication error (processor shows I/O fault): The backplane connector between the base unit and processor module is a known wear point. Remove the processor, inspect the gold fingers on both sides for oxidation or bent pins. Clean with IPA and reseat firmly. If the fault clears temporarily and returns, the backplane connector on the base unit is failing — replace the base unit.

Replacement Procedure — Key Steps:

• Step 1 — Backup the program: Before touching anything, upload the ladder logic from the existing processor via RSLogix 500 over Channel 0 (RS-232) or Ethernet (1764-LRP only). Store the .RSS file. The base unit swap does not affect processor memory, but if the processor is also suspect, you need that backup.
• Step 2 — Document terminal wiring: Photograph every terminal block before removal. The 1764-24AWA uses removable terminal blocks — they pull straight out. Label each block with its slot position before pulling.
• Step 3 — No address switch on this unit: Unlike some modular I/O systems, the 1764-24AWA base unit does not have a hardware address DIP switch. The processor auto-recognizes the base I/O at startup. No configuration required for the base unit itself.
• Step 4 — Processor module transfer: The processor (1764-LSP or 1764-LRP) lifts out of the base unit with a quarter-turn latch. Transfer it directly to the replacement base unit. Retain all program memory — no re-download required if the processor is healthy.
• Step 5 — Firmware note: The base unit does not carry firmware independently. All firmware resides in the processor module. No firmware flash required on the replacement base unit.
• Step 6 — Power-on verification: Apply power. Confirm RUN LED on processor, verify I/O status in RSLogix 500 I/O tree. Force a few outputs manually to confirm relay contact operation before returning to AUTO mode.

Reliability in Harsh Conditions

The MicroLogix 1500 platform was designed for the kind of environments where PLCs actually live — not climate-controlled server rooms, but dusty panel enclosures next to injection molding machines, pump stations with condensation dripping down the cabinet walls, and outdoor kiosks baking at 55°C in summer.

The 1764-24AWA meets IEC 68-2-6 vibration testing (sinusoidal, 10–500 Hz, 1G) and IEC 68-2-27 shock testing (15G, 11ms half-sine). The relay output contacts are rated for high-inrush loads — motor starters, solenoid valves, and pilot lights that would destroy solid-state outputs in weeks. The AC input circuitry includes hardware filtering that rejects transients and noise common on industrial power distribution systems.

Units we ship have been stored in controlled warehouse conditions in Xiamen. Each unit undergoes a pre-shipment power-on test: we apply 120VAC, confirm the backplane initializes, verify all I/O status LEDs respond correctly, and check terminal block seating. Units that fail any step are pulled from stock. You receive a unit that has been verified functional — not just visually inspected.

For applications in high-humidity coastal or tropical environments: install desiccant packs in the enclosure and ensure the cabinet IP rating is appropriate. The 1764-24AWA is an open-type device — it relies on the enclosure for environmental protection. This is standard practice, but worth stating explicitly for field teams working in non-standard installations.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-connected cities in Southeast China, with direct access to Xiamen Gaoqi International Airport and major freight forwarder hubs. This matters when you need a part on the other side of the world in 72 hours.

Standard Express Routing:

• DHL Express: Xiamen → most major cities in Southeast Asia, Middle East, Europe, and North America in 2–4 business days. Tracking from pickup to delivery. Customs clearance handled by DHL in most corridors.
• FedEx International Priority: Available for destinations where FedEx has stronger coverage. Typical transit 2–5 business days.
• Same-day dispatch: Orders confirmed and paid before 14:00 CST ship the same business day. Orders after 14:00 ship next morning.
• Commercial documentation: Every shipment includes commercial invoice, packing list, and certificate of conformance. HS code 8537.10 declared for customs. We can adjust declared value documentation for import duty optimization on request — within legal bounds.
• Bulk and freight orders: For quantities requiring air freight consolidation or sea freight, we coordinate with our freight forwarder partners. EXW Xiamen and DAP destination Incoterms both available.

We’ve shipped to Malaysia, Indonesia, Saudi Arabia, UAE, Germany, Poland, Australia, and the US in the past 90 days alone. If your country has specific import requirements for industrial electronics, contact us before ordering — we’ll advise on documentation requirements upfront.
