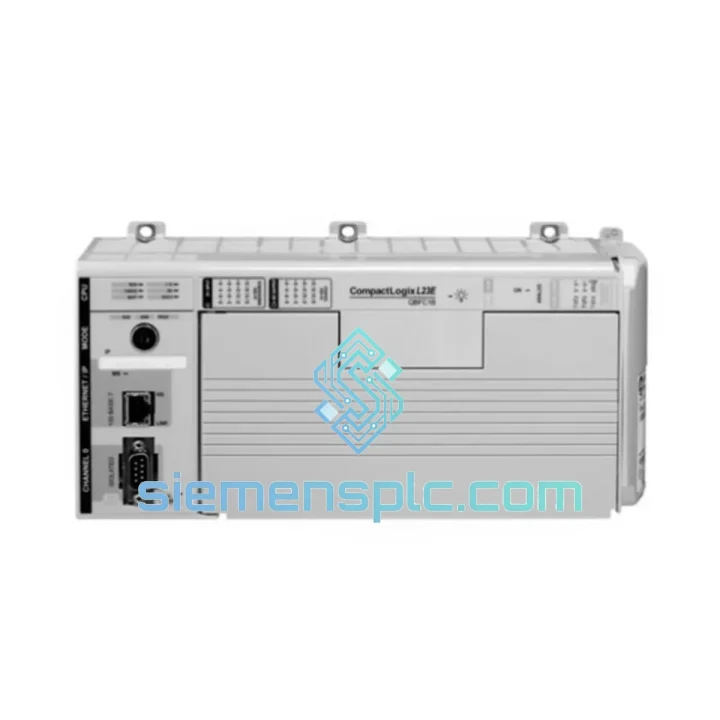

Allen-Bradley 1769-L23-QBFC1B CompactLogix Packaged Controller – Integrated PLC for Deterministic Machine Control

The Allen-Bradley 1769-L23-QBFC1B is a self-contained CompactLogix packaged controller that consolidates a 24V DC power supply, a Logix5323E-QBFC1B processor, and a fixed I/O complement into a single DIN-rail-mountable enclosure. This architecture eliminates the inter-module backplane connectors required in modular 1769 builds, reducing the total number of mechanical interfaces that can degrade signal integrity over time in high-vibration environments. The controller is positioned in the CompactLogix family between the entry-level MicroLogix platform and the full-chassis ControlLogix architecture, making it the preferred selection for standalone machine control, distributed I/O nodes, and OEM equipment where panel real estate is constrained.

At siemensplc.com, every 1769-L23-QBFC1B unit is sourced through traceable supply channels, inspected against Rockwell Automation’s published hardware revision markings, and dispatched from our Xiamen, China warehouse with full export documentation. Our B2B procurement team handles single-unit MRO replacements and multi-unit OEM rollouts with equal rigor.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1769-L23-QBFC1B integrates its processor, power conversion, and I/O termination on a shared internal backplane that operates at the CompactLogix native bus rate. Unlike chassis-based ControlLogix systems where the backplane is a passive midplane with active bridge modules, the packaged controller’s internal bus is a point-to-point connection between the processor ASIC and the I/O interface logic, which eliminates the arbitration latency introduced by multi-slot chassis scheduling. This results in a deterministic I/O scan cycle that is bounded by the processor’s task period rather than by backplane token-passing overhead.

Analog Signal Conditioning: The four analog input channels use a successive-approximation ADC with a 12-bit conversion depth, yielding a resolution of approximately 4.88 mV per count in ±10V mode and 4.88 µA per count in 0–20 mA mode. Each channel is individually configurable via the controller’s I/O tree in Studio 5000, and the input filter time constant is software-selectable to attenuate high-frequency noise without requiring external RC networks on the terminal block.

EMC Design: The controller’s internal DC-DC converter uses a synchronous switching topology with spread-spectrum frequency modulation to distribute conducted emissions across a wider frequency band, reducing peak emission levels at any single frequency. The digital I/O section employs optocoupler isolation between the field-side terminals and the logic-side circuitry, with a minimum isolation voltage of 500V AC. This galvanic barrier prevents ground loop currents from coupling noise into the processor’s logic supply, which is a common failure mode in installations where field devices share a common ground with variable-frequency drives.

EtherNet/IP Stack: The embedded EtherNet/IP port implements the CIP (Common Industrial Protocol) stack with support for both explicit messaging (Class 3 connected and unconnected) and implicit I/O messaging (Class 1 cyclic). The controller can act as both an originator and a target, enabling peer-to-peer produced/consumed tag relationships with other Logix controllers without requiring a dedicated communication module. The MAC address is factory-programmed and the IP address is configurable via BOOTP, DHCP, or static assignment through the controller’s web server or RSLinx Classic.

Battery-Backed Memory: Program and data memory retention during power loss is maintained by an internal lithium battery (catalog suffix B indicates battery-backed RAM). The battery provides a minimum of 18 months of retention at 25°C with the controller unpowered. A low-battery diagnostic bit is exposed in the controller status file, allowing the PLC program or SCADA system to generate a maintenance alert before memory loss occurs.

System Integration Benefits

• Reduced panel wiring complexity: The integrated power supply eliminates the need for a separate 1769-PA4 or 1769-PB4 power supply module and its associated wiring harness, reducing terminal block count by approximately 8–12 points per installation.
• Deterministic task scheduling: Periodic tasks execute with a jitter of less than ±1 ms at a 1 ms period, which is sufficient for closed-loop position control applications using encoder feedback through 1769 HSC modules.
• Seamless Studio 5000 integration: The controller appears in the Studio 5000 I/O tree as a standard CompactLogix node, allowing engineers to reuse existing Logix program templates, Add-On Instructions (AOIs), and User-Defined Types (UDTs) without modification.
• EtherNet/IP device-level ring (DLR) compatibility: When connected to a DLR-capable managed switch, the controller can participate in a ring topology that provides sub-3 ms fault recovery, maintaining I/O communication continuity during a single cable or switch failure.
• Integrated web diagnostics: The built-in web server provides real-time controller status, task execution statistics, and I/O module health data accessible from any browser on the same subnet, reducing the need for a dedicated HMI for maintenance diagnostics.
• Modbus RTU gateway capability: The RS-232 port can be configured as a Modbus RTU master or slave, enabling the controller to communicate with legacy instrumentation, drives, and meters that predate EtherNet/IP adoption without requiring an external protocol converter.
• Expandable I/O architecture: The right-side 1769 expansion bus supports up to two additional 1769 I/O modules, allowing the base I/O complement to be extended with specialty modules such as the 1769-HSC (high-speed counter), 1769-SM2 (SERCOS motion), or 1769-ASCII without changing the controller hardware.
• Logix-based diagnostics transparency: All I/O module fault codes, communication status bits, and analog channel health flags are mapped directly into the controller’s tag database, making them accessible to the PLC program, HMI, and historian without requiring separate diagnostic polling routines.

Quality Assurance & Global Logistics

Every 1769-L23-QBFC1B unit supplied by siemensplc.com is a genuine Allen-Bradley product manufactured by Rockwell Automation. We do not supply remanufactured, relabeled, or counterfeit hardware. Our inspection protocol covers label authenticity verification against Rockwell’s published revision markings, housing integrity assessment, connector pin condition check, and serial number cross-reference. Units that do not pass inspection are quarantined and not offered for sale.

Our Xiamen, China warehouse location provides direct access to major international freight carriers including DHL Express, FedEx International Priority, UPS Worldwide Expedited, and SF International. Standard export documentation — commercial invoice, packing list, certificate of origin, and packing declaration — is prepared for every shipment. For customers in regions with specific import requirements (e.g., CE declaration of conformity for EU customs, or SABER certification for Saudi Arabia), we can provide the relevant Rockwell Automation compliance documentation upon request.

Typical dispatch time from order confirmation is 1–3 business days for in-stock units. Air freight transit times to major industrial hubs are 3–5 business days to Southeast Asia, 5–7 business days to the Middle East and Europe, and 6–9 business days to the Americas. All units are packed in anti-static foam-lined cartons with moisture-barrier inner bags. A 12-month warranty from the shipment date covers manufacturing defects under normal operating conditions.
