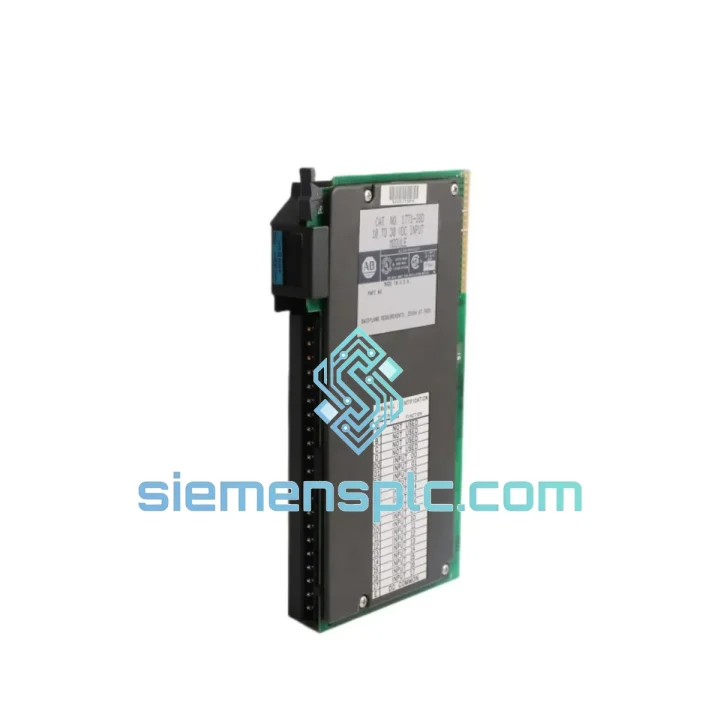

Allen-Bradley 1771-IBD PLC Digital Input Module – 1771 Series

Allen-Bradley 1771-IBD: 16-Point DC Digital Input Module for High-Density Discrete Signal Acquisition in PLC-5 Control Architectures

The Allen-Bradley 1771-IBD occupies a well-defined position in the PLC-5 control hierarchy: it is the primary interface between field-level discrete DC signals and the 1771 backplane data highway. Each of its 16 input channels accepts a 10–30V DC signal, converts it through optocoupler isolation circuitry, and presents a logic-level state to the PLC-5 processor scan cycle. The module’s role is not passive buffering — it is an active signal conditioning stage that determines the integrity of every discrete control decision downstream.

In a typical PLC-5 control loop, the processor reads the 1771-IBD’s input image table at the beginning of each scan. The accuracy and noise immunity of that image table directly governs the determinism of the output response. A module with marginal isolation or slow input filter response introduces latency and false-state risk into the control loop. The 1771-IBD addresses this through a hardware-level optical isolation barrier rated to withstand transient voltages that routinely appear in industrial DC field wiring — inductive kickback from solenoids, ground potential differences between field cabinets, and conducted EMI from variable-frequency drives operating in the same panel.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optocoupler Isolation Architecture: Each of the 16 input channels on the 1771-IBD is individually isolated via a dedicated optocoupler. The LED side of the coupler is driven by the field-side input current (nominally 6 mA at 24V DC), while the phototransistor side interfaces directly with the 5V backplane logic. This architecture creates a galvanic break between field wiring and backplane circuitry, with a typical isolation voltage rating that prevents common-mode transients — such as those generated by inductive load switching — from propagating into the processor’s I/O image table. The per-channel isolation topology also means that a wiring fault or overvoltage event on one channel does not cascade to adjacent channels, a critical design characteristic in high-density input applications.

RC Input Filter Network: Ahead of each optocoupler, a passive RC filter network provides hardware-level debounce and high-frequency noise rejection. The 1 ms filter time constant is a deliberate engineering trade-off: it is fast enough to capture the state transitions of proximity sensors and limit switches operating at typical machine cycle rates, yet slow enough to suppress the sub-millisecond conducted noise spikes that appear on DC field wiring in environments with VFD-driven motors. This hardware filter operates independently of the PLC-5 scan cycle, meaning noise rejection is not dependent on software filter routines in the ladder program.

EMC Design Considerations: The 1771-IBD’s PCB layout follows Rockwell Automation’s internal EMC design rules for the 1771 platform, which include ground plane partitioning between the field-side and backplane-side circuits, controlled impedance traces on the backplane interface, and decoupling capacitors placed at the backplane connector to suppress high-frequency switching transients from adjacent modules. The module’s metal housing provides additional shielding against radiated EMI, and the chassis grounding through the 1771 backplane provides a low-impedance return path for any conducted interference that reaches the module housing.

Backplane Interface Logic: On the backplane side, the 1771-IBD presents its 16-bit input word to the 1771 I/O scanner through the parallel backplane data bus. The module’s internal logic latches the optocoupler output states at the beginning of each backplane scan cycle, ensuring that the input image presented to the PLC-5 processor is a coherent snapshot of all 16 channels at a single point in time — not a rolling read that could introduce inter-channel timing skew in high-speed applications.

System Integration Benefits

• Deterministic scan-cycle integration: The 1771-IBD’s latched backplane interface ensures that all 16 input states are captured simultaneously at each I/O scan, eliminating inter-channel timing skew and supporting deterministic ladder logic execution in time-critical control loops.
• Per-channel LED diagnostics: Each input point has a dedicated status LED visible from the front of the module without removing it from the chassis. This allows field technicians to verify input state in real time without connecting a programming terminal, reducing diagnostic time during commissioning and fault-finding.
• Drop-in chassis compatibility: The 1771-IBD occupies a single slot in any 1771 I/O chassis (A1B through A4B) without requiring adapter plates, keying changes, or firmware updates to the PLC-5 processor. This makes it a direct replacement for failed modules in existing installations, minimizing unplanned downtime.
• Wide DC input voltage window: The 10–30V DC input range accommodates both 12V DC and 24V DC field device power supplies within a single module type, reducing the number of distinct spare parts that a maintenance department must stock for a mixed-voltage installation.
• Galvanic isolation for ground loop elimination: The optical isolation barrier between field wiring and backplane circuitry eliminates ground loop currents that would otherwise cause erratic input states when field devices are powered from a different DC supply reference than the PLC chassis.
• Hardware noise immunity independent of software: The RC filter network and optocoupler isolation operate at the hardware level, providing noise rejection that does not consume PLC-5 scan time and does not require software filter blocks in the ladder program — preserving processor throughput for control logic.
• Fault containment per channel: Individual optocoupler isolation per channel means that an overvoltage or wiring fault on one input point does not affect the remaining 15 channels, maintaining partial system operation during a field wiring fault condition.
• Compatibility with PLC-5 remote I/O configurations: The 1771-IBD operates identically in local chassis and remote I/O rack configurations, allowing the same module type to be used across distributed control architectures without hardware or configuration changes.
• Supports legacy system life extension: For facilities operating PLC-5-based control systems beyond their original design life, the 1771-IBD provides a verified-genuine replacement path that avoids the cost and risk of a full control system migration while maintaining the original system’s functional specification.

Quality Assurance & Global Logistics

Every 1771-IBD unit supplied through siemensplc.com is sourced as genuine Allen-Bradley product manufactured by Rockwell Automation. Units are not remanufactured, relabeled, or cloned. Each module is inspected prior to dispatch: housing integrity, connector pin condition, PCB board markings, and date/lot code consistency are verified against known Allen-Bradley production standards. A 12-month warranty covers functional failure under normal operating conditions from the date of shipment.

Logistics operations are based in Xiamen, China, a major export hub with direct access to international express carriers and sea freight consolidators. In-stock units are dispatched within 1–3 business days of order confirmation. Standard export documentation — commercial invoice, packing list, and certificate of origin — is included with every shipment. Available shipping methods include DHL Express, FedEx International Priority, UPS Worldwide Expedited, and sea freight for bulk orders. Xiamen’s port infrastructure supports reliable transit times to destinations across Asia-Pacific, the Middle East, Europe, North America, and South America.

For time-critical maintenance requirements, expedited dispatch and same-day processing are available upon request. Contact the sales team directly to confirm stock availability and lead time before placing an order.
