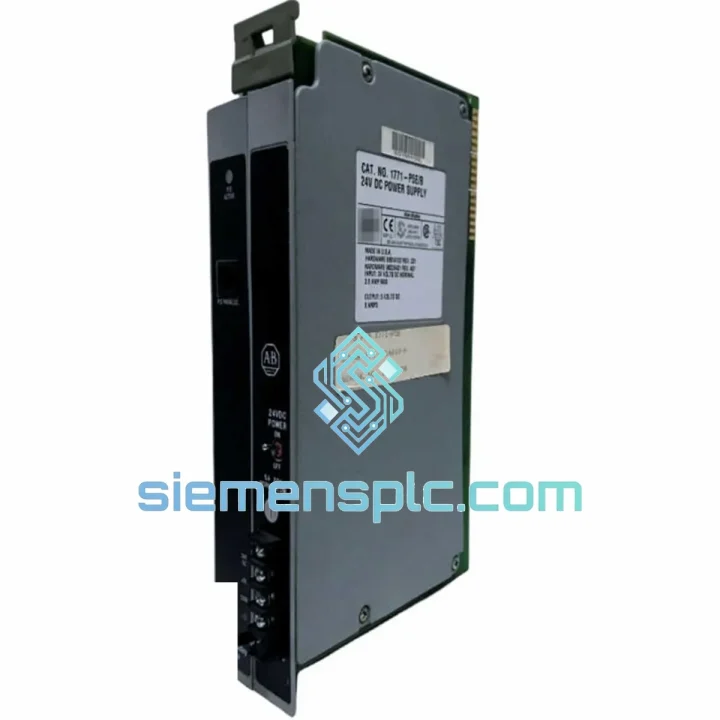

Allen-Bradley 1771-P5E Power Supply Interface Module – PLC-5

Allen-Bradley 1771-P5E: Backplane Power Distribution Architecture in PLC-5 I/O Control Systems

The Allen-Bradley 1771-P5E is a dedicated power supply interface module engineered for the 1771 I/O chassis family, serving as the regulated power distribution bridge between an external AC power supply and the chassis backplane. In a PLC-5 control architecture, every I/O module installed in the chassis draws its operating power from the backplane rails — +5 VDC for logic circuits and ±12 VDC for analog signal conditioning. The 1771-P5E governs this distribution with precision, providing stable, low-ripple DC rails under variable load conditions across all occupied chassis slots. Its role is not passive: the module actively interfaces with the chassis backplane bus, ensuring that transient load spikes from simultaneously switching digital output modules do not collapse the logic supply voltage below the 4.75 V minimum threshold required for reliable CMOS and TTL operation within installed I/O cards.

In multi-chassis PLC-5 configurations — where a single processor controls remote I/O racks via 1771-ASB adapter modules — each remote chassis requires its own 1771-P5E or equivalent interface. The module’s backplane connector is keyed to the 1771 chassis slot-0 position, and its internal bus architecture distributes power across all downstream slots through a low-impedance copper backplane trace rated for the full chassis current budget. This design eliminates the need for individual module-level power regulation, reducing component count and failure modes within each I/O card.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1771-P5E employs a linear regulation topology on its +5 VDC output rail rather than a switching converter architecture. This design choice is deliberate: linear regulators inherently produce lower conducted noise on the output rail compared to PWM-based switching supplies, which is critical in mixed-signal I/O environments where analog input modules share the same backplane power bus as high-density digital output modules. The absence of switching frequency harmonics on the +5 VDC rail prevents noise coupling into the ADC reference circuits of analog I/O cards, preserving 12-bit or 16-bit measurement accuracy without requiring additional LC filtering at the module level.

From an EMC standpoint, the 1771-P5E’s chassis-mount form factor provides a direct low-impedance ground path through the chassis frame to the panel earth ground. The module’s internal ground plane is bonded to the chassis backplane ground rail at multiple points, reducing the ground loop impedance that would otherwise allow common-mode noise — generated by adjacent variable-frequency drives or contactor switching — to appear as differential-mode interference on the I/O signal lines. This multi-point grounding topology is consistent with IEC 61000-4-4 burst immunity requirements for industrial control equipment operating in Class 3 electromagnetic environments.

The backplane bus architecture of the 1771 chassis distributes power through a dedicated copper trace layer isolated from the I/O data bus traces. This physical separation prevents power supply transients from coupling into the parallel I/O data bus, which operates at TTL logic levels (0–5 V) and carries time-critical scan data between the processor and I/O modules. The 1771-P5E’s output capacitance — combined with the decoupling capacitors on each installed I/O module — forms a distributed energy storage network capable of sustaining backplane voltage within specification during load transients of up to several hundred milliamps with a slew rate of less than 1 ms.

Thermal management within the module relies on conductive heat transfer through the chassis frame rather than active cooling. The power dissipation of the linear regulator stage is conducted through the module’s aluminum housing to the chassis side rails, which act as a heat spreader. In installations where ambient temperature approaches the 60 °C upper limit, the chassis should be mounted with adequate clearance above and below to allow natural convection airflow across the chassis face.

System Integration Benefits

• Deterministic Backplane Power Delivery: The 1771-P5E maintains regulated +5 VDC within ±5% tolerance across the full chassis load range, ensuring that all installed I/O modules operate within their specified logic voltage window during every PLC scan cycle — a prerequisite for deterministic I/O response times.
• Analog Signal Integrity Preservation: Linear regulation topology eliminates switching noise on the ±12 VDC analog rails, protecting the measurement accuracy of installed analog input modules (e.g., 1771-IFE, 1771-IXHR) from power-supply-induced offset errors.
• Simplified Chassis Power Budgeting: The module’s defined current ratings for each rail allow system engineers to calculate the total chassis power budget by summing individual module current draws from their datasheets, with no need to account for power supply conversion efficiency losses at the chassis level.
• Multi-Chassis Scalability: Each remote I/O chassis in a distributed PLC-5 network operates with its own 1771-P5E, providing electrically isolated power domains per rack. This prevents a fault in one chassis’s power supply from propagating to adjacent racks, improving overall system fault containment.
• Reduced I/O Module Complexity: Because the 1771-P5E delivers regulated rails directly to the backplane, individual I/O modules do not require onboard voltage regulators for their logic circuits. This reduces the component count and thermal load within each I/O card, contributing to longer mean time between failures (MTBF) for the installed module population.
• Diagnostic Transparency via LED Indicators: The Series B revision of the 1771-P5E includes front-panel LED indicators for +5 VDC and ±12 VDC rail status, providing maintenance technicians with immediate visual confirmation of power rail health without requiring a multimeter probe on the backplane — reducing diagnostic time during unplanned downtime events.
• Compatibility with RSLogix 5 Fault Diagnostics: When the 1771-P5E detects an out-of-tolerance condition on the backplane rails, it asserts a chassis fault signal that the PLC-5 processor logs as a hardware fault in the RSLogix 5 fault table. This fault record includes a timestamp and fault code, enabling post-event root cause analysis without relying on external data logging equipment.
• Long-Term Spare Parts Availability: As a discrete, field-replaceable module, the 1771-P5E can be swapped in under 10 minutes without disturbing I/O wiring or chassis mounting hardware. Maintaining a spare unit on-site eliminates the need for emergency procurement during unplanned outages, directly reducing mean time to repair (MTTR) for the control system.
