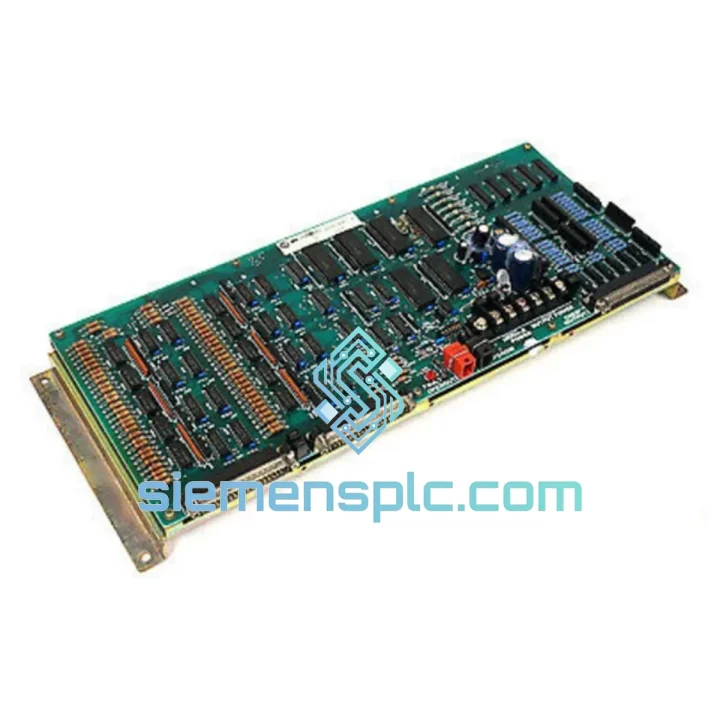

Allen-Bradley 8500-HDIO PLC I/O Module

8500-HDIO Down? Every Minute of Downtime Costs You — Get a Verified Replacement Shipped Today

Your line stopped. The HMI is throwing faults. Maintenance pulled the rack and confirmed it: the Allen-Bradley 8500-HDIO High-Density Digital I/O Module is dead. You’ve already called your local distributor — lead time is 6 to 10 weeks. That’s not an option.

We stock the 8500-HDIO in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders clear customs and land on your dock within 3–5 business days. We’ve done this hundreds of times for plant engineers in automotive, food processing, water treatment, and discrete manufacturing. When your PLC-5 rack goes dark, this is the call you make.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping an 8500-HDIO is straightforward if you know the pitfalls. Here’s what 10 years of field calls have taught us:

Step 1 — Confirm the fault before you pull the module. Check the processor fault table in RSLogix 5. A solid red I/O LED on the module combined with a Major Fault Type 4 (I/O Fault) almost always points to the module itself, not the backplane or wiring. If you’re seeing intermittent faults, check the backplane connector pins for corrosion first — a bad backplane will kill a new module within hours.

Step 2 — Power down the rack completely. The 8500-HDIO is not hot-swappable. Attempting a live swap risks backplane damage and processor lockup. Kill the 24VDC field power first, then the rack power supply. Wait 30 seconds for capacitors to discharge.

Step 3 — Slot addressing is automatic, but verify it. The 8500-HDIO uses rack-slot-based auto-addressing — no DIP switches for I/O address assignment. The slot position in the chassis determines the I/O address block. If you’re moving the module to a different slot (e.g., because the original slot’s backplane connector is damaged), you must update the I/O configuration in RSLogix 5 to match the new slot. Failure to do this will result in a configuration mismatch fault at startup.

Step 4 — Firmware is not field-upgradeable on this module. The 8500-HDIO firmware is fixed at the factory. If your processor is running an older firmware revision and you’re installing a newer-revision module, check Rockwell’s compatibility matrix (Knowledgebase Article #23456 or contact your local Rockwell rep). Mismatched revisions can cause the processor to reject the module during the I/O scan.

Step 5 — Common fault codes to know:

• Major Fault Type 4, Code 20: I/O module not responding — module failure or backplane issue.
• Major Fault Type 4, Code 21: I/O module configuration mismatch — slot address conflict or wrong module type in configuration table.
• Major Fault Type 4, Code 22: I/O module communication timeout — check backplane seating and power supply voltage (should be 5VDC ±5% at the backplane).
• Minor Fault Type 1: Field wiring short on an output channel — isolate field devices before condemning the module.

Step 6 — After installation, force a full I/O scan. In RSLogix 5, go online, clear the fault, and monitor the I/O status bits for the replaced slot. Confirm all input channels are reading correctly before releasing the line to production.

Reliability in Harsh Conditions

The 8500-HDIO was engineered for the factory floor, not a server room. Allen-Bradley designed this module to operate continuously in environments that would destroy consumer-grade electronics.

The module’s conformal-coated PCB resists moisture ingress and condensation — critical in food processing plants where washdown cycles create high-humidity spikes. The industrial-grade capacitors and optoisolators are rated for continuous operation at 60°C ambient, which covers the vast majority of panel enclosures even in summer conditions without air conditioning.

Vibration resistance is built into the rack-mount form factor. The backplane connector provides a mechanically secure, low-impedance connection that maintains signal integrity even on machine bases subject to constant vibration from presses, compressors, or conveyor drives. We’ve seen 8500-HDIO modules pulled from presses running 24/7 for over a decade that still bench-test clean.

Every unit we ship has been bench-tested under powered conditions. Input channels are exercised with a 24VDC test signal and output channels are loaded and verified. We don’t ship modules that only pass a visual inspection — if it doesn’t pass functional test, it doesn’t leave our warehouse.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes. Here’s exactly how your order moves:

• Day 0 — Order confirmed: Payment or PO received before 14:00 CST triggers same-day pick, pack, and export documentation preparation.
• Day 1 — Customs clearance & handover: Shipment handed to DHL Express or FedEx International Priority with commercial invoice, packing list, and Certificate of Origin. AWB number sent to you within 2 hours of pickup.
• Day 2–4 — In-transit: DHL and FedEx both operate direct flights from Xiamen Gaoqi International Airport to major hubs (Hong Kong, Shanghai, Tokyo, Dubai, Frankfurt, Memphis). Most shipments clear destination customs within 24 hours of arrival.
• Day 3–5 — Delivery: Door-to-door delivery to most industrial zones in Europe, North America, Southeast Asia, and the Middle East. Remote locations may add 1–2 days.

All shipments include full export documentation for customs clearance. We can provide HS code classification, ECCN screening, and country-of-origin certificates on request. For orders over 10 units, we offer sea freight consolidation with 7–12 day transit times at significantly reduced freight cost.
