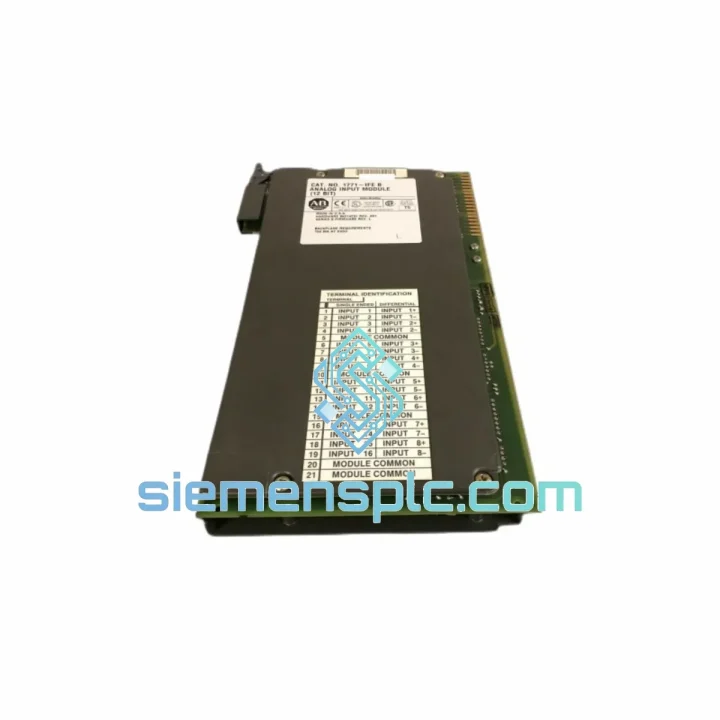

Allen-Bradley 1771-IFE/C Analog Input Module

1771-IFE/C Analog Input Module — Every Hour of Downtime Costs You. We Ship Today.

Your PLC-5 line is down. The 1771-IFE/C has failed. Production is bleeding money by the minute. You don’t need a sales pitch — you need the module on a plane tonight. We stock the Allen-Bradley 1771-IFE/C in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders clear customs and land on your dock within 3–5 business days, anywhere in the world.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on PLC-5 platforms, these are the failure patterns and swap pitfalls that catch engineers off guard on the 1771-IFE/C:

1. Confirm the /C Revision Before You Order
The 1771-IFE has multiple hardware revisions (/A, /B, /C). The /C revision introduced an improved ADC reference circuit. Mixing revisions in a redundant chassis pair causes calibration drift and intermittent fault codes. Pull the existing module and read the label — do not rely on the RSLogix 5 I/O configuration tree alone, as it does not always display the sub-revision.

2. Jumper Configuration for Current Inputs
The internal 250 Ω shunt jumper must be installed for 4–20 mA or 0–20 mA operation. On /C units, this is factory-installed by default, but always verify before powering up — especially on units sourced from secondary market. A missing shunt on a current-loop channel will produce a full-scale (4,095 count) reading that looks like a wiring fault, not a hardware fault.

3. Block Transfer Configuration in RSLogix 5
The 1771-IFE/C communicates via Block Transfer Read (BTR) and Block Transfer Write (BTW) instructions. After swapping the module, verify the BTW configuration word in your ladder logic matches the new module’s channel configuration (single-ended vs. differential, input range per channel). A mismatch here will not generate a fault — it will silently produce incorrect engineering-unit values, which is far more dangerous in a live process.

4. Common Fault Codes and What They Actually Mean
— Fault Code 71 (Block Transfer Error): Usually a backplane seating issue. Power down, reseat the module firmly, and retry. If it persists, the backplane connector pins on the chassis may be worn.
— Fault Code 72 (Module Not Responding): Check the 5 V backplane supply voltage at the chassis power supply. The 1771-IFE/C draws 800 mA; an undersized or aging power supply will drop out under load.
— Fault Code 16 (Channel Overrange): Input signal exceeds the configured range. Verify transmitter output and jumper settings before condemning the module — this is a wiring/configuration fault 80% of the time.

5. Slot Addressing After Replacement
The 1771 I/O chassis uses physical slot position for addressing — there is no auto-addressing or DIP switch to set. Confirm the replacement module is seated in the identical slot as the failed unit. If the chassis was re-racked or slots were reorganized during the outage, update the I/O configuration in RSLogix 5 before going online.

6. Firmware and Software Compatibility
The 1771-IFE/C requires no firmware download — it is a hardware-configured module. RSLogix 5 v8.x and later fully support it. If you are running legacy 6200 Series software, ensure your BTR/BTW data table sizes match the module’s 16-word output block.

Reliability in Harsh Conditions

The 1771-IFE/C was not designed for a climate-controlled server room. It was built for the floor — and it shows. The module’s internal ADC and signal conditioning circuitry are mounted on a conformal-coated PCB that resists moisture ingress and condensation in high-humidity environments such as coastal chemical plants and food processing facilities operating CIP wash cycles nearby.

Vibration tolerance is a genuine engineering consideration on the 1771 platform. The module’s edge connector and internal component mounting are rated to withstand the continuous low-frequency vibration typical of compressor rooms, press lines, and pump stations. Field data from oil and gas installations in the Middle East and Southeast Asia consistently shows 1771-IFE/C units operating without calibration drift after 8–12 years of continuous service in ambient temperatures approaching the 60°C rated limit.

Thermal cycling — the daily expansion and contraction of the chassis and PCB — is the primary long-term failure mechanism on analog input modules. The /C revision’s improved ADC reference circuit is specifically more stable under thermal cycling than earlier revisions, which is why it remains the preferred replacement even for installations that originally used /A or /B units.

For installations in particularly aggressive environments (high particulate, corrosive atmosphere, or extreme temperature swings), we recommend requesting a pre-shipment functional bench test. We can verify all 8 channels against a calibrated signal source and provide a test report with the shipment.
