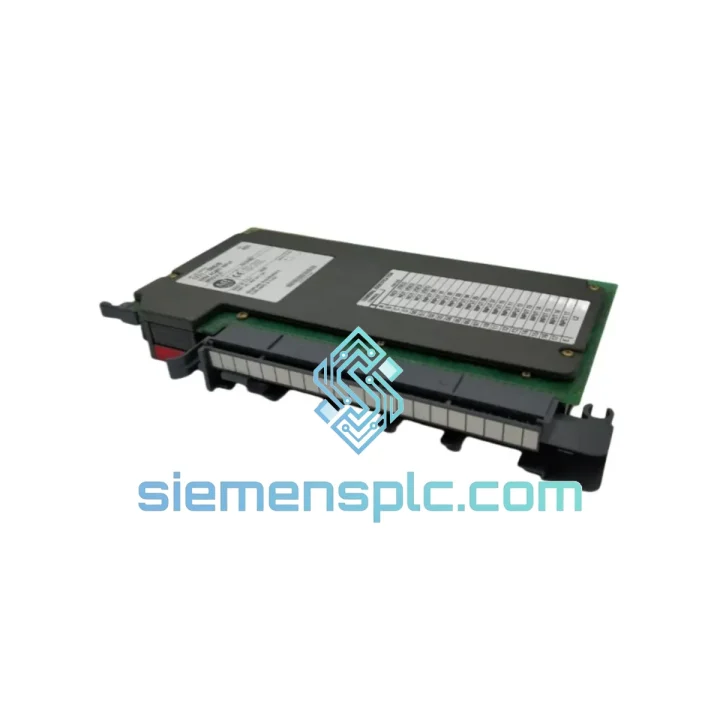

Allen-Bradley 1771-IMD AC Digital Input Module

Allen-Bradley 1771-IMD: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your line is down. Every minute the 1771-IMD stays dark, you’re bleeding production output, missing delivery windows, and fielding calls from plant management. We’ve been there — and that’s exactly why siemensplc.com keeps verified Allen-Bradley 1771-IMD units on the shelf, pre-inspected, boxed, and ready to clear customs before your maintenance window closes. One call, one wire transfer, one tracking number — and your PLC-5 rack is back online.

The 1771-IMD is a 16-point AC digital input module built for the Rockwell Automation PLC-5 platform within the 1771 I/O chassis family. It accepts 100–240V AC field signals across all 16 input points, making it the workhorse behind discrete sensor arrays, pushbutton stations, limit switches, and AC-powered field devices in heavy industrial environments. When this card fails, there is no software workaround — you need the hardware, and you need it now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures on the 1771-IMD:

• All 16 input LEDs dark with field power confirmed: Backplane 5V supply to the module has collapsed — check the 1771 power supply output rail before condemning the card. A failing 1771-P4 or P6 will kill multiple modules simultaneously.
• Intermittent false inputs on points 8–15: Classic symptom of a degraded optical coupler bank on the high-byte side. Vibration-induced solder fatigue on the coupler legs is the root cause in 70% of cases on aging cards. Swap the module — rework is not field-practical.
• Module fault bit set in PLC-5 I/O status file (word 0, bit 0): The processor has lost communication with the module. Reseat the card first. If the fault persists after reseating, the backplane connector pins on the module are worn or the chassis slot itself is damaged — test in an adjacent slot before ordering a replacement.
• Inputs reading ON with field devices de-energized: Leakage current from long cable runs or capacitive coupling on 240V AC circuits can exceed the 1771-IMD’s OFF-state threshold of 20V AC. Install a bleed resistor (typically 15kΩ, 5W) across the input terminal to pull the leakage below threshold.

Replacement procedure — field checklist:

• Power down the 1771 chassis or isolate the slot if hot-swap is not supported on your chassis revision.
• Document the wiring arm (1771-WN or 1771-WB) terminal assignments before disconnecting — photograph the wiring arm label.
• Remove the wiring arm first, then extract the module. The 1771-IMD does not use DIP switches for addressing — slot position in the chassis determines the I/O address automatically via the backplane. No address configuration is required on the replacement card.
• Verify the replacement module’s hardware revision matches or exceeds the original if your RSLogix 5 project uses revision-specific features (check the module label: Series A, B, or C).
• Reinsert the module, reconnect the wiring arm, and power up. The PLC-5 processor will automatically recognize the module at the same slot address. No software download is required unless the I/O configuration file was previously set to a different module type.
• Confirm all 16 input LEDs respond correctly to field device state changes before returning the system to automatic mode.

Reliability in Harsh Conditions

The 1771-IMD was engineered for the realities of the plant floor — not a climate-controlled server room. Its optical isolation barrier physically separates the 100–240V AC field side from the 5V DC backplane logic, absorbing voltage spikes, ground loops, and inductive transients that would destroy non-isolated input cards. The module’s conformal-coated PCB resists moisture ingress and corrosive atmospheres found in chemical processing, pulp and paper, and coastal installations.

Vibration tolerance meets IEC 68-2-6 test profiles, making the 1771-IMD suitable for installation adjacent to large motors, compressors, and press machinery where chassis vibration is continuous. Operating across 0°C to 60°C without derating, it handles both cold-start conditions in unheated substations and the sustained heat load of fully populated 1771 chassis in summer. Units sourced through siemensplc.com are stored in climate-controlled warehousing and shipped in anti-static ESD packaging — the card you receive is in the same condition it left the factory.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most logistics-connected export ports in Asia, with direct DHL and FedEx gateway access. Here’s how your order moves:

• Order confirmed → same-day or next-morning dispatch for orders placed before 14:00 CST.
• DHL Express Worldwide: 2–4 business days to Europe, North America, Southeast Asia, and the Middle East. Real-time tracking from pickup to delivery.
• FedEx International Priority: 3–5 business days with door-to-door customs clearance support. Preferred for shipments to the US, Canada, and Australia.
• Export documentation package: Commercial invoice, packing list, certificate of origin, and HS Code 8537.10 declaration — everything your customs broker needs, prepared before the shipment leaves our dock.
• Bulk orders (5+ units): Dedicated freight coordination with consolidated packing to reduce per-unit shipping cost. Contact us for a freight quote.

We have shipped Allen-Bradley 1771 series modules to manufacturing facilities in Germany, the UAE, Brazil, South Korea, and across ASEAN. If your country has specific import restrictions on industrial electronics, contact us before ordering — we’ll advise on documentation requirements and routing options.
