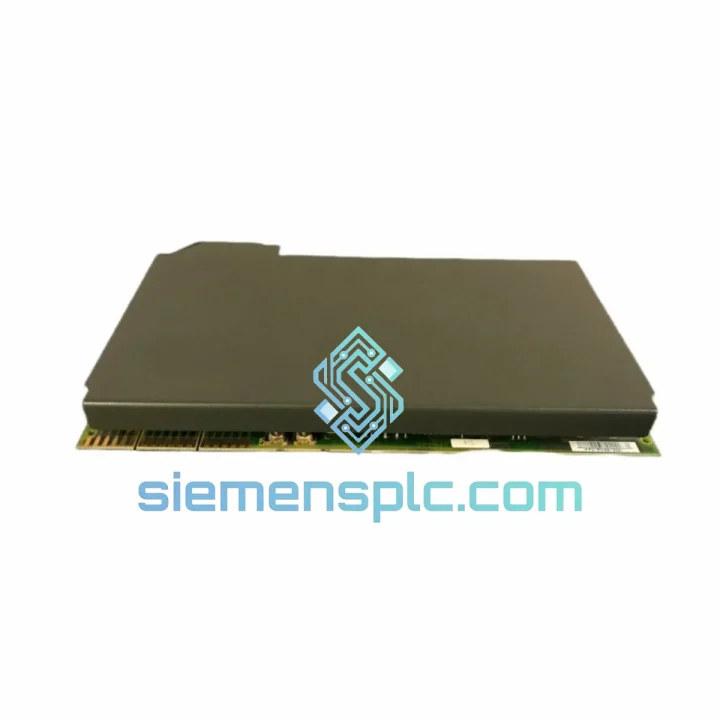

Allen-Bradley 1771-QRC Analog Input Module

1771-QRC Down? Every Minute Costs You — We Ship Today from Xiamen

Line stopped. Alarm active. Your PLC-5 chassis is throwing faults and the 1771-QRC analog input module is the culprit. You’ve been here before — waiting days for a part while production bleeds money. That ends now. We stock the Allen-Bradley 1771-QRC at our Xiamen warehouse, verified, tested, and ready to leave on the next DHL or FedEx cut-off. One call, one email, and your replacement is in transit before your shift ends.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 1771-QRC fails in predictable ways. Here’s what ten years of field calls have taught us — skip the guesswork and go straight to the fix.

Fault Code 0x0071 / Channel Fault LED Solid Red: This is the most common call we get. Nine times out of ten it’s a failed input channel caused by a field wiring surge — a lightning strike on a 4–20 mA loop or a shorted transmitter. Before you condemn the module, disconnect field wiring terminal by terminal and check each channel individually via RSLogix 5 I/O status bits. If the fault clears on disconnect, the module is fine — your transmitter is the problem. If the fault persists with all field wiring removed, the module’s input circuitry is gone. Order the 1771-QRC now.

Slot Addressing After Swap: The 1771-QRC uses the chassis slot position for its I/O address. When you pull the old module and insert the replacement, the slot address is inherited automatically — no DIP switch changes required for standard single-chassis configurations. However, if your site uses a 1771-ASB Remote I/O adapter in a multi-drop RIO configuration, verify the ASB’s starting address and rack/group assignments in RSLogix 5 before going live. A mismatch here will cause the processor to fault on the first scan.

Keying Verification: The 1771 chassis uses plastic keying bands to prevent wrong-module insertion. Before installing the 1771-QRC, confirm the keying on the chassis slot matches the module’s keying configuration. If the previous module was a different type, the keying bands must be reconfigured. Forcing a miskeyed module into a slot will damage the backplane connector — a far more expensive repair than the module itself.

Firmware Compatibility: The 1771-QRC is a hardware-only analog conditioning module with no onboard firmware to update. It does not require any firmware matching to the PLC-5 processor revision. Your existing RSLogix 5 program will address it identically to the failed unit — no logic changes, no I/O configuration edits.

First Scan Verification: After installation, force a processor fault-clear and monitor the 1771-QRC’s channel data words in RSLogix 5 Data Monitor. Confirm each active channel is returning engineering-unit values within expected range before releasing the line. A channel reading rail-high (32767) or rail-low (−32768) with field wiring connected indicates a wiring polarity issue or a failed transmitter — not a module defect.

Backplane Seating: The 1771 I/O chassis backplane connector is a 44-pin edge connector. If the module was removed under power (not recommended but it happens in emergencies), inspect the connector fingers for carbon tracking or bent pins before inserting the replacement. A partially seated module will cause intermittent channel faults that are extremely difficult to diagnose remotely.

Reliability in Harsh Conditions

The Allen-Bradley 1771 I/O platform was not designed for climate-controlled server rooms. It was built for the floor — and the 1771-QRC reflects that heritage. The module’s conformal-coated PCB resists moisture ingress in humid coastal and tropical plant environments where condensation cycles are a daily reality. Operating temperature tolerance from 0 °C to 60 °C covers the full range from cold-start winter commissioning to summer heat in non-air-conditioned electrical rooms.

Vibration resistance is inherent in the 1771 chassis locking mechanism — the module locks into the backplane with a positive mechanical latch that prevents contact intermittency from machine-induced vibration, a failure mode that plagues cheaper I/O platforms. In oil & gas and petrochemical applications where the module may be installed in a purged and pressurized enclosure (NEMA 7 / Zone 1), the 1771-QRC’s sealed construction and conformal coating provide an additional layer of protection against hydrocarbon vapor exposure.

Units shipped from our Xiamen warehouse are individually inspected for board-level corrosion, connector integrity, and component condition before dispatch. Refurbished units undergo functional bench testing against a known-good PLC-5 chassis. Every unit ships in ESD-safe anti-static packaging with foam cushioning rated for international air freight handling — because a module damaged in transit is no better than the one it was meant to replace.

Global Express Logistics

Our Xiamen warehouse sits 40 minutes from Xiamen Gaoqi International Airport (XMN), one of China’s primary air cargo hubs with daily direct freighter services to Frankfurt, Los Angeles, Dubai, and Singapore. This geography is not an accident — it was chosen specifically to minimize the time between your purchase order and the module landing at your plant gate.

Standard process: order confirmed before 14:00 CST ships same business day via DHL Express or FedEx International Priority. You receive a tracking number within two hours of dispatch. Typical transit times: Southeast Asia 1–2 days, Europe 3–4 days, North America 3–5 days, Middle East 2–3 days, Australia 2–3 days. For genuine plant-down emergencies, contact us directly on WhatsApp — we will coordinate with the freight forwarder for next-flight-out booking when standard cut-offs have passed.

All shipments include a commercial invoice, packing list, and condition report. For customers requiring import documentation such as a Certificate of Origin or specific HS code declarations for customs clearance, advise at time of order and we will prepare the paperwork in advance to prevent customs delays at destination.
