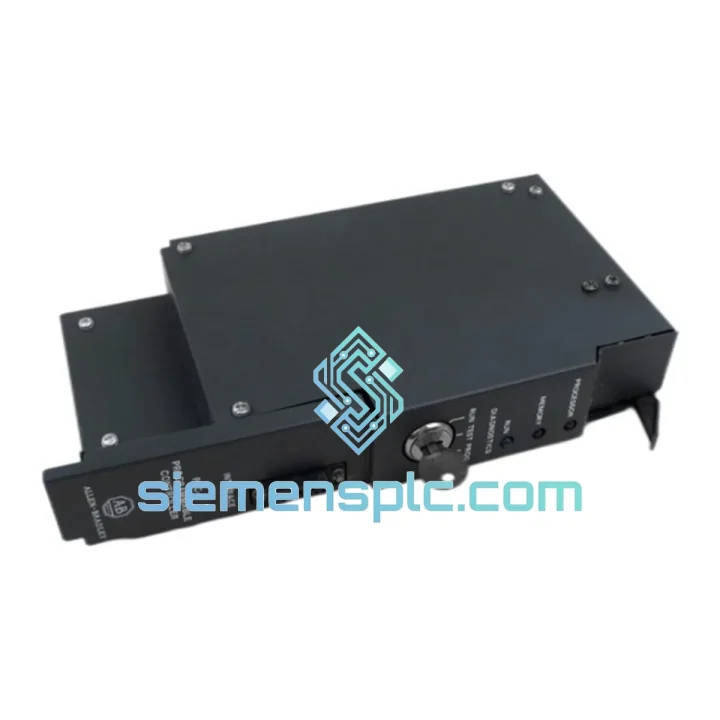

Allen-Bradley 1772-LN2 PLC CPU Module – Mini-PLC-2

Allen-Bradley 1772-LN2: Scan-Cycle Architecture and Control Loop Role in Mini-PLC-2 Systems

The Allen-Bradley 1772-LN2 is the central processing unit of the Mini-PLC-2 platform — a fixed-architecture, rack-mounted controller designed for discrete and sequential automation tasks in industrial environments. Within a control loop, the 1772-LN2 executes a deterministic scan cycle comprising four sequential phases: input image table update, ladder logic program execution, output image table transfer, and housekeeping/communication servicing. This architecture guarantees that every rung of the user program is evaluated once per scan, with output states written to physical terminals only after a complete program pass — a design that eliminates partial-update race conditions common in non-deterministic execution models.

The processor operates on a 1K-word user memory space (expandable via external memory modules such as the 1772-SD2), with each word occupying 16 bits. The instruction set covers standard relay-equivalent contacts and coils, timer and counter functions, data transfer, comparison, and arithmetic operations — sufficient for the majority of machine-level sequencing and interlocking applications. The backplane interface between the 1772-LN2 and its chassis uses a parallel data bus with synchronous arbitration, allowing the CPU to address up to 128 discrete I/O points across the chassis without bus contention under normal scan loads.

The module’s DH-485 communication port supports multi-drop network topologies at up to 19.2 kbps, enabling peer-to-peer messaging between Mini-PLC-2 nodes and upstream supervisory systems. This communication channel operates asynchronously relative to the scan cycle, with message buffering handled in a dedicated register file — ensuring that network traffic does not introduce jitter into the control scan period.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1772-LN2 employs a single-board architecture where the CPU, memory interface, I/O scanner, and communication controller share a common ground plane — a layout choice that reduces inter-subsystem impedance mismatches and simplifies EMC containment. The board’s signal traces are routed with controlled impedance on the backplane connector side, limiting reflected energy on the parallel data bus during high-frequency switching events in adjacent I/O modules.

From an EMC standpoint, the chassis enclosure acts as a Faraday shield for the processor board, with the backplane ground bonded directly to the chassis frame. This arrangement attenuates conducted and radiated emissions from the switching power supply and I/O output drivers before they reach the CPU’s clock and data lines. The result is a processor that maintains stable scan execution in environments with significant electromagnetic interference — including motor drive cabinets, welding equipment proximity, and high-voltage switchgear rooms.

The memory subsystem uses battery-backed CMOS RAM for the user program and data table, with a dedicated low-battery detection circuit that asserts a fault flag in the processor status word before memory retention is compromised. This gives maintenance personnel a predictable warning window — typically 30 days at rated temperature — to schedule a battery replacement without risking program loss. The EEPROM memory module option (1772-SD2) provides non-volatile backup of the user program, enabling cold-start recovery without manual reload from a programming terminal.

The I/O scanner logic within the 1772-LN2 uses a fixed-priority arbitration scheme on the backplane bus: the CPU holds bus mastership during the output image transfer phase and releases it to I/O modules during the input update phase. This deterministic handoff eliminates the need for software-managed bus arbitration and keeps the scan cycle variance below ±2% under full I/O load — a characteristic that is critical for time-sensitive interlocking applications such as press guarding and conveyor synchronization.

System Integration Benefits

• Deterministic scan execution: Fixed four-phase scan architecture delivers consistent cycle times regardless of communication load, enabling reliable timing-dependent ladder logic without software compensation.
• Drop-in chassis compatibility: The 1772-LN2 installs directly into any Mini-PLC-2 chassis (1772-LX, 1772-LXP) without hardware modification, preserving existing I/O wiring and reducing maintenance downtime to the module swap interval.
• DH-485 multi-drop networking: Supports up to 32 nodes on a single DH-485 segment, allowing the 1772-LN2 to participate in distributed control architectures alongside other Allen-Bradley controllers and HMI devices without a dedicated gateway.
• Battery-backed program retention: CMOS RAM with low-battery early warning preserves the user program and data table through power interruptions, eliminating cold-start reloads in facilities without UPS coverage on control panels.
• EEPROM backup compatibility: The 1772-SD2 memory module provides non-volatile program storage, enabling automatic program reload on power-up — a feature that reduces recovery time after extended outages in unmanned or remote installations.
• Transparent fault diagnostics: The processor status word exposes scan overrun, memory fault, I/O fault, and communication error flags directly in the data table, allowing ladder logic to implement self-diagnostic rungs without external diagnostic hardware.
• APS programming continuity: Full compatibility with Rockwell’s Advanced Programming Software preserves existing program libraries, documentation, and engineering workflows — eliminating the cost of re-engineering programs for a replacement platform.
• Validated replacement for regulated environments: As an exact OEM part number replacement, the 1772-LN2 satisfies hardware change control requirements in FDA-regulated, ATEX-classified, and ISO 13849-assessed installations where form-fit-function equivalence must be documented.

Quality Assurance & Global Logistics

Every Allen-Bradley 1772-LN2 supplied through our Xiamen operations is sourced through traceable channels and subjected to a structured incoming inspection protocol. Physical authentication covers PCB markings, date codes, connector condition, and label integrity — cross-referenced against Allen-Bradley production documentation. Functional verification confirms power-up response and communication handshake prior to packaging. Each unit ships with a Certificate of Conformance (COC), packing list, and country-of-origin declaration as standard documentation.

Shipments originate from Xiamen, China, with export packaging comprising an anti-static ESD bag, foam-lined inner carton, moisture barrier, and shock-absorbing outer box — labeled with part number, quantity, and COO. Standard international transit is handled via DHL Express (2–5 business days) or FedEx International Priority. Air freight and sea freight consolidation are available for volume orders. In-stock units dispatch within 1–3 business days of order confirmation. A 12-month warranty covers functional failures under normal operating conditions, with replacement or full refund issued directly — no third-party escalation required.
