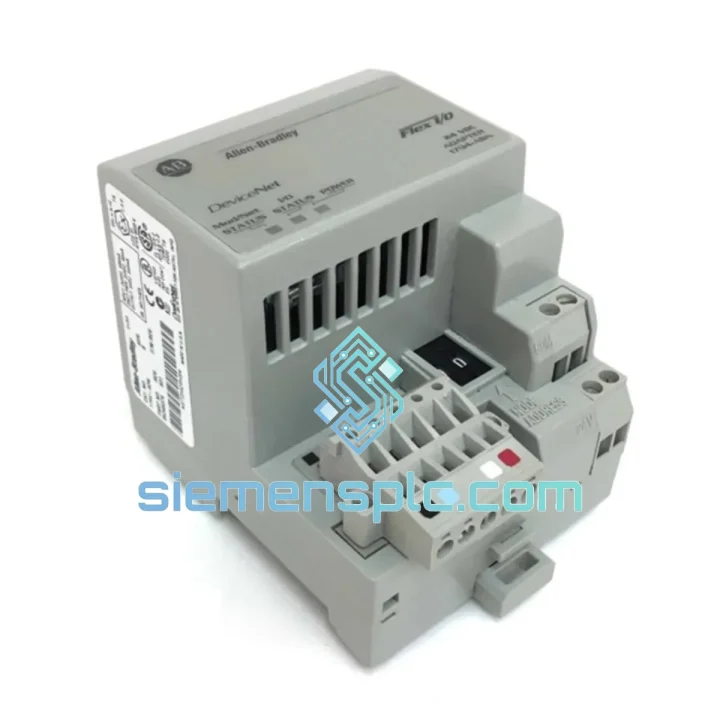

Allen-Bradley 1794-ADN DeviceNet Adapter – FLEX I/O

Allen-Bradley 1794-ADN FLEX I/O DeviceNet Adapter — Fieldbus Interface Architecture and Control Loop Role

The 1794-ADN is a DeviceNet adapter module within Rockwell Automation’s FLEX I/O distributed I/O platform. Its primary function is to serve as the physical and logical gateway between a DeviceNet fieldbus segment and a bank of up to eight FLEX I/O I/O modules mounted on a shared backplane. In a distributed control architecture, the adapter occupies the leftmost slot of the FLEX I/O bank and arbitrates all backplane communication, translating DeviceNet explicit and I/O messaging into the proprietary FLEX backplane protocol at up to 500 Kbps.

Unlike passive terminal blocks, the 1794-ADN actively manages polled, change-of-state (COS), and cyclic I/O connections simultaneously. This means a ControlLogix or CompactLogix scanner can maintain deterministic I/O scan cycles while the adapter independently handles node commissioning and fault reporting — decoupling network management overhead from real-time I/O exchange. The module stores its own node address (0–63) via onboard rotary switches, eliminating dependency on host software for basic network identity assignment.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1794-ADN’s internal architecture is built around a dual-processor design: one processor handles DeviceNet MAC-layer framing and CAN bus arbitration, while a second dedicated backplane controller manages synchronous data exchange with attached I/O modules. This separation prevents network jitter from propagating into backplane scan timing — a critical design consideration in applications where analog modules require consistent sampling intervals.

Optical Isolation Boundary: The DeviceNet physical interface is galvanically isolated from the backplane logic via an optocoupler barrier rated at 500V DC working isolation. This prevents ground loop currents — common in large industrial panels with mixed AC/DC grounding — from corrupting CAN differential signals or inducing bit errors on the network segment.

EMC Design: The module’s PCB layout routes the CAN_H and CAN_L differential pair with controlled impedance (120 Ω characteristic impedance, matching the DeviceNet cable specification) and places ferrite bead filters at the network connector entry point. This suppresses common-mode noise in the 1–30 MHz range, which is the primary interference band generated by variable-frequency drives (VFDs) and switching power supplies commonly co-located in automation panels.

Backplane Arbitration Logic: The 1794-ADN uses a token-passing arbitration scheme on the FLEX backplane. Each I/O module slot is polled in a fixed sequence, and the adapter maintains a local image table that is updated every backplane scan cycle. When a DeviceNet I/O connection is active, the adapter maps this image table directly to the network I/O data, ensuring that the data presented to the DeviceNet scanner reflects the most recent backplane scan — typically completing within 1–2 ms for a fully populated 8-module bank.

Fault Isolation: If a single I/O module on the backplane fails or is removed, the 1794-ADN generates a module fault bit in its DeviceNet I/O data without disrupting communication with the remaining modules. This per-slot fault isolation allows the host controller to implement selective fault handling rather than treating the entire I/O bank as failed.

System Integration Benefits

• Deterministic I/O Scan Latency: The adapter’s dual-processor architecture decouples DeviceNet network timing from backplane scan cycles, delivering consistent I/O update rates regardless of network load fluctuations — essential for motion-adjacent or process control loops with tight timing requirements.
• Simultaneous Multi-Connection Support: The 1794-ADN supports polled, COS, and cyclic I/O connections concurrently, allowing a single adapter to serve both a real-time scanner and a configuration tool without interrupting production I/O traffic.
• Per-Slot Diagnostic Transparency: Module-level fault bits are mapped directly into the DeviceNet I/O data, giving the host PLC immediate visibility into which specific slot has faulted — reducing mean time to diagnose (MTTD) compared to systems that report only bank-level faults.
• Non-Volatile Node Configuration: Node address and data rate settings stored in onboard rotary switches are retained without battery backup, eliminating configuration loss during power cycling or module replacement.
• Hot-Swap Capability: Within supported FLEX I/O configurations, individual I/O modules can be removed and replaced without powering down the adapter or interrupting DeviceNet communication to other nodes on the segment.
• RSNetWorx Integration: Full EDS (Electronic Data Sheet) support enables automatic device discovery, parameter configuration, and network health monitoring via RSNetWorx for DeviceNet — reducing commissioning time for new installations.
• Scalable I/O Density: A single 1794-ADN node can address up to 248 bytes of input and 248 bytes of output data across its 8-module bank, supporting mixed digital and analog I/O configurations without requiring additional network nodes.
• Cross-Platform Scanner Compatibility: The adapter operates with any ODVA-conformant DeviceNet scanner, including 1756-DNB (ControlLogix), 1769-SDN (CompactLogix), 1747-SDN (SLC 500), and third-party scanners — preserving investment in existing control hardware during system expansions.
• Reduced Panel Wiring Complexity: By consolidating up to 8 I/O modules under a single DeviceNet node, the 1794-ADN reduces the number of individual field device connections to the network trunk, simplifying panel layout and cable management.

Quality Assurance & Global Logistics

Every 1794-ADN unit supplied through siemensplc.com is sourced as genuine Allen-Bradley / Rockwell Automation product. Units are procured through verified industrial surplus and authorized secondary-market channels, with full batch traceability maintained. Prior to dispatch, each module undergoes physical inspection covering label integrity, connector pin condition, rotary switch operation, and housing conformity against factory reference specifications.

Functional bench verification — including backplane power-up response and LED status confirmation — is performed where test infrastructure permits. Modules are packaged in anti-static ESD-safe bags with desiccant, placed in rigid cartons with foam cushioning rated for international air freight handling (ISTA 2A standard).

Shipping from Xiamen, China: Our Xiamen warehouse provides direct access to international express carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard in-stock orders are dispatched within 1–3 business days of payment confirmation. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for all international shipments. HS code classification assistance is available for customs clearance in destination countries. Bulk orders (10+ units) qualify for sea freight consolidation with competitive transit times to major ports in Europe, Southeast Asia, the Middle East, and the Americas.

All units carry a 12-month warranty covering defects in materials and workmanship from the date of shipment. Dead-on-arrival (DOA) claims are processed within 48 hours of receipt confirmation.
