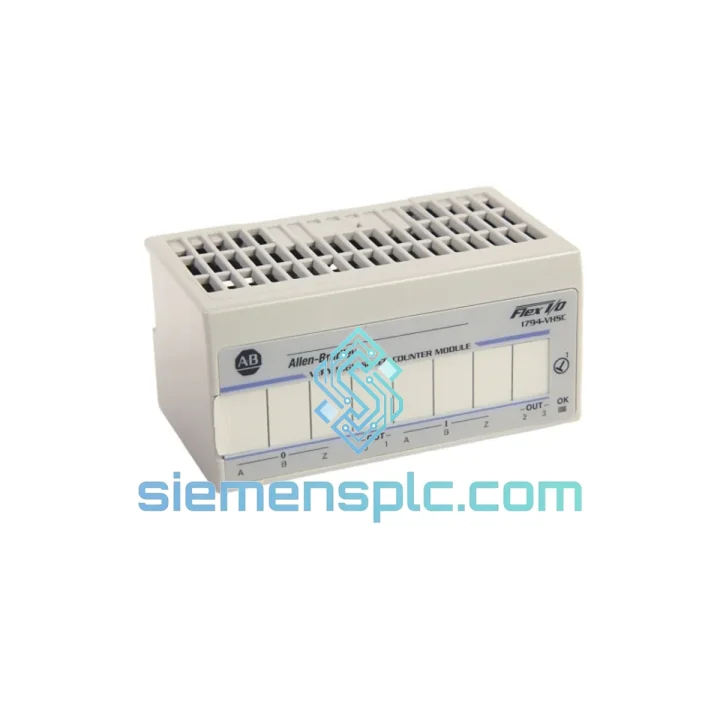

Allen-Bradley 1794-VHSC High Speed Counter Module – FLEX I/O

Allen-Bradley 1794-VHSC: Deterministic Pulse Capture in Distributed FLEX I/O Architectures

The 1794-VHSC occupies a precise functional niche within the Rockwell Automation FLEX I/O ecosystem: it resolves the fundamental limitation of standard digital input modules when confronted with high-frequency pulse trains from incremental encoders, proximity switches, and turbine flow meters. Where a conventional 1794-IB16 digital input module is constrained by the PLC scan cycle—typically 5–20 ms, yielding a practical input frequency ceiling of 25–100 Hz—the 1794-VHSC decouples pulse capture entirely from the controller scan. Its onboard counter ASIC processes input transitions at up to 1 MHz independently of the backplane communication cycle, guaranteeing zero pulse loss even when the controlling ControlLogix or CompactLogix CPU is executing ladder logic or communicating with other I/O nodes.

This architectural separation is the module’s defining engineering characteristic. The PLC reads accumulated count values, rate measurements, and status flags from the I/O image table at its normal scan rate, while the hardware counter continues accumulating without interruption. The result is a system where high-speed field events are captured with hardware precision and reported to the controller with scan-cycle granularity—a combination that satisfies both the real-time demands of the field device and the deterministic communication model of the FLEX I/O backplane.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1794-VHSC is built around a dedicated counter ASIC rather than a firmware-polled microcontroller, which is the primary reason it achieves 1 MHz sustained throughput without burdening the backplane communication processor. Each of the two counter channels maintains its own 32-bit accumulator register, preset register, and compare register in hardware. When an input transition occurs, the ASIC increments or decrements the accumulator within nanoseconds—no interrupt latency, no firmware scheduling overhead.

Input Signal Conditioning and EMC Architecture: The module’s input stage employs optical isolation between field wiring and the counter ASIC. For RS-422 differential inputs, a line receiver IC (compatible with EIA-422 standard) provides common-mode rejection of up to ±7V, which is critical in environments where long cable runs pass near variable-frequency drives (VFDs), servo amplifiers, or high-current bus bars. The differential topology rejects noise induced symmetrically on both conductors, preserving signal integrity at cable lengths up to 300 m at reduced frequencies. For single-ended 24V DC inputs, a Schmitt trigger input stage provides hysteresis (typically 3–5V), preventing false counts from slow-rising edges or contact bounce on proximity sensors.

Quadrature Decode Logic: In quadrature encoder mode, the ASIC implements a hardware state machine that evaluates the phase relationship between the A and B input channels on every transition edge. This 4× decode logic (counting all four edges per electrical cycle) multiplies the effective resolution of a physical encoder by four without any software intervention. The Z (index) channel input is latched in hardware and can be configured to reset the accumulator or capture a position snapshot, enabling homing routines that are independent of PLC scan timing.

Preset Compare and Output Drive: Each channel’s hardware comparator continuously evaluates the accumulator value against the programmed preset register. When equality is detected, the corresponding discrete output transistor switches within microseconds—a response time that is orders of magnitude faster than any PLC output module driven by ladder logic. This makes the 1794-VHSC suitable for direct cam-switch replacement in packaging and printing applications where output timing must be synchronized to physical position rather than to a software scan cycle.

Backplane Data Mapping: The module maps its data to the FLEX I/O adapter’s I/O image as a fixed-length word block. The input image contains the 32-bit count value, rate measurement result, status bits (overflow, underflow, Z-latch), and diagnostic flags. The output image contains the preset value and control bits (reset, gate, output enable). This deterministic mapping ensures that the controlling PLC always reads a consistent snapshot of counter state, captured at the adapter’s communication cycle boundary.

System Integration Benefits

• Scan-Independent Pulse Capture: Hardware counting at 1 MHz eliminates the dependency on PLC scan time, ensuring no pulse is lost regardless of controller load or communication latency on the backplane network.
• 32-Bit Accumulator Depth: A 4,294,967,295-count range before rollover accommodates continuous production runs—a 1,000 PPR encoder at 500 RPM would require over 143 hours to overflow, eliminating the need for software rollover management in most applications.
• Multi-Network Adapter Compatibility: The same 1794-VHSC module operates identically whether the FLEX I/O adapter is DeviceNet, EtherNet/IP, or ControlNet, allowing the module to be redeployed across different network topologies without hardware changes.
• Onboard Rate Measurement: The module calculates input frequency internally and presents the result as a scaled engineering-unit value in the I/O image, removing the need for derivative calculations in the PLC program and reducing CPU load.
• Hardware-Timed Discrete Outputs: Preset compare outputs respond in microseconds, enabling position-based output control (cam switching, batch counting, flow totalization alarms) with timing precision that software-based output modules cannot match.
• Diagnostic Transparency: Status bits for overflow, underflow, input signal loss, and Z-channel latch are mapped to the I/O image and accessible to the PLC program without additional configuration, supporting structured fault detection in Studio 5000 / RSLogix 5000 routines.
• Hot-Swap Capable Platform: FLEX I/O terminal bases support module removal and insertion under power (with appropriate adapter configuration), reducing planned maintenance downtime to the time required to physically swap the module.
• Studio 5000 / RSLogix 5000 Native Integration: The module is fully described in the Rockwell Automation EDS library and appears in the I/O tree with pre-defined tag structures, eliminating manual tag creation and reducing commissioning time.

Quality Assurance & Global Logistics

Every 1794-VHSC unit offered through siemensplc.com undergoes a structured incoming inspection protocol before it is listed as available stock. Visual authentication checks cover label print quality, catalog number format, date code consistency, connector pin condition, and housing mold markings—all cross-referenced against Rockwell Automation’s published product identification guidelines. Units with ambiguous provenance documentation are quarantined and not offered for sale.

Functional verification is performed on units where test fixtures are available: the module is powered via a FLEX I/O terminal base, a simulated pulse train is applied to the input terminals, and the counter accumulator output is verified against the expected count. This step confirms that the counter ASIC, input conditioning circuitry, and backplane communication interface are all operational before shipment.

Packaging follows ESD-safe handling procedures throughout: modules are placed in conductive foam trays, sealed in anti-static poly bags, and packed in double-wall corrugated cartons with sufficient void fill to withstand the mechanical shock ratings of international express courier handling. Each shipment includes a packing list with individual serial numbers, a commercial invoice formatted for customs clearance, and a certificate of conformance on request.

Logistics from our Xiamen, China warehouse are executed via DHL Express, FedEx International Priority, and SF Express International, with typical transit times of 3–5 business days to Europe, North America, Southeast Asia, and the Middle East. Export documentation—including HS code classification, country of origin declaration, and CITES/dual-use compliance screening—is prepared for every shipment. Customers requiring DDP (Delivered Duty Paid) terms can request this at the quotation stage; we work with licensed customs brokers in major destination markets to provide door-to-door cleared delivery.

A 12-month warranty covers verified units against defects in materials and workmanship from the date of shipment. Warranty claims are processed by advance replacement where stock permits, minimizing production downtime for the customer.
