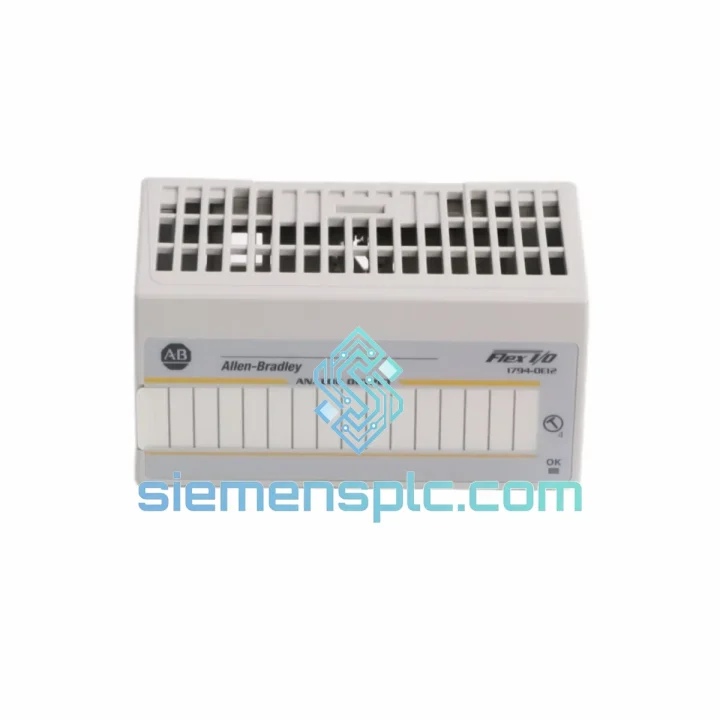

Allen-Bradley 1794-OE12 Analog Output Module

1794-OE12 Down? Every Minute of Downtime Costs You — We Ship Today

Your line stopped. The HMI is throwing AO faults. Maintenance pulled the module and confirmed it: the Allen-Bradley 1794-OE12 is dead. You’ve got valve positioners frozen mid-stroke, VFDs running at fixed speed, and a process supervisor breathing down your neck. This is exactly the scenario we built our inventory around.

We stock the 1794-OE12 in Xiamen, China — sealed, original Rockwell Automation, ready to clear customs and land on your dock via DHL Express or FedEx Priority. No waiting on distributor lead times. No grey-market risk. Just a verified module, shipped fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of pulling and swapping FLEX I/O modules in the field, here’s what actually trips people up during a 1794-OE12 replacement:

1. Module Address — Don’t Assume It’s Automatic
FLEX I/O modules get their slot address from physical position on the backplane, not from any DIP switch. But if you’re replacing a failed module and the adapter has cached configuration, you may see a “Module Not Found” fault even after seating the new card. Power-cycle the adapter (not just the module) to force a fresh backplane scan. In Studio 5000, verify the slot number in the I/O tree matches the physical position.

2. Series Revision Mismatch
The 1794-OE12 has gone through Series A, B, and C revisions. In most installations, Series B and C are backward-compatible with Series A configurations. However, if your AOP (Add-On Profile) in Studio 5000 was built against a specific series, you may get a “Module Identity Mismatch” fault. Navigate to the module properties in the I/O tree, right-click → “Change Module,” and update the series field. No logic rewrite required — just a profile update and download.

3. Output Calibration After Swap
The 1794-OE12 stores calibration data internally. A new module ships with factory calibration, which is within spec for most applications. However, if your process uses tight 4–20 mA loops (e.g., control valves with ±0.1% accuracy requirements), run a field calibration using RSLogix/Studio 5000’s calibration wizard before returning the loop to automatic mode. Skipping this step on a precision dosing or flow control loop will cause setpoint drift.

4. Common Fault Codes to Know

• Fault Code 16#0001 — Channel Fault: Output channel open-circuit or load impedance out of range. Check field wiring continuity and load resistance before condemning the module.
• Fault Code 16#0010 — Configuration Fault: Module configuration in the controller doesn’t match the physical module. Re-download the I/O configuration after replacing the module.
• Fault Code 16#0020 — Communication Fault: Adapter lost communication with the module. Check backplane seating — the 1794-OE12 must click firmly into the terminal base. Inspect the backplane connector pins for corrosion or mechanical damage.
• Fault Code 16#0040 — Power Fault: 24 V DC field-side power missing or below threshold. Verify the terminal base power supply, not just the backplane supply.

5. Wiring Polarity on Current Outputs
When wiring 4–20 mA loops, confirm the source/sink configuration of your field device. The 1794-OE12 is a sourcing output — it supplies current. If your actuator or transmitter is also a sourcing device, you’ll need a loop-powered isolator. This is a common wiring mistake that causes the output to read correctly in the controller but produce no physical movement at the actuator.

6. Firmware Compatibility with Older Adapters
If you’re running a 1794-AENT adapter with firmware below v4.x, a Series C 1794-OE12 may not be recognized. Check the Rockwell PCDC (Product Compatibility and Download Center) for adapter firmware updates before installing the replacement module. A five-minute firmware update on the adapter can save hours of fault-chasing.

Reliability in Harsh Conditions

Industrial environments don’t care about your module’s warranty card. The 1794-OE12 was designed for the kind of conditions that destroy consumer electronics in weeks.

The module’s conformal-coated PCB provides a barrier against airborne contaminants — cutting fluid mist in machining cells, sulfur compounds in wastewater treatment, and salt-laden air in coastal facilities. We’ve seen these modules running in paper mills where the humidity never drops below 80% and in steel plant electrical rooms where the ambient temperature sits at 50 °C year-round.

Vibration is the silent killer of analog I/O. The FLEX I/O backplane locking mechanism keeps the 1794-OE12 seated under continuous vibration loads typical of compressor skids and pump stations. The terminal base screw terminals maintain torque retention better than spring-clamp alternatives in high-vibration environments — a detail that matters when you’re troubleshooting intermittent AO faults at 3 AM.

Electrical noise immunity is built into the output stage. The 1794-OE12’s output circuitry includes filtering that rejects common-mode noise up to 120 V AC — critical in environments where analog signal cables run parallel to motor power cables. If you’re still seeing noise on your AO loops after replacing the module, the problem is in your cable routing, not the module.

All units we ship have been stored in climate-controlled conditions and inspected for physical integrity before dispatch. We do not ship modules that have been exposed to moisture ingress, mechanical impact, or electrostatic discharge events — the three most common causes of latent failure in analog output modules.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port.

Standard Dispatch Process:

• Order Confirmed Before 14:00 CST: Same-day dispatch. Module is packed, labeled, and handed to DHL or FedEx courier the same afternoon.
• Order Confirmed After 14:00 CST: Next business day dispatch. No exceptions — we don’t rush packing and risk shipping damage.
• DHL Express Worldwide: Typical transit 2–4 business days to Europe, North America, Southeast Asia, and the Middle East. Real-time tracking from pickup to delivery.
• FedEx International Priority: Available for destinations where DHL coverage is limited. Same-day handoff to FedEx depot in Xiamen.
• Customs Documentation: Commercial invoice, packing list, and certificate of origin prepared for every international shipment. HS code pre-classified for smooth customs clearance. We have experience shipping to EU, US, AU, UAE, and ASEAN markets — we know which documentation each customs authority requires.
• Export Compliance: All shipments comply with Chinese export regulations and destination country import requirements. No surprises at customs.

If your plant is in a remote location or a country with complex import procedures, contact us before ordering. We’ve shipped to offshore platforms, mining sites in West Africa, and remote manufacturing facilities in Central Asia. We’ll find a routing that works.
