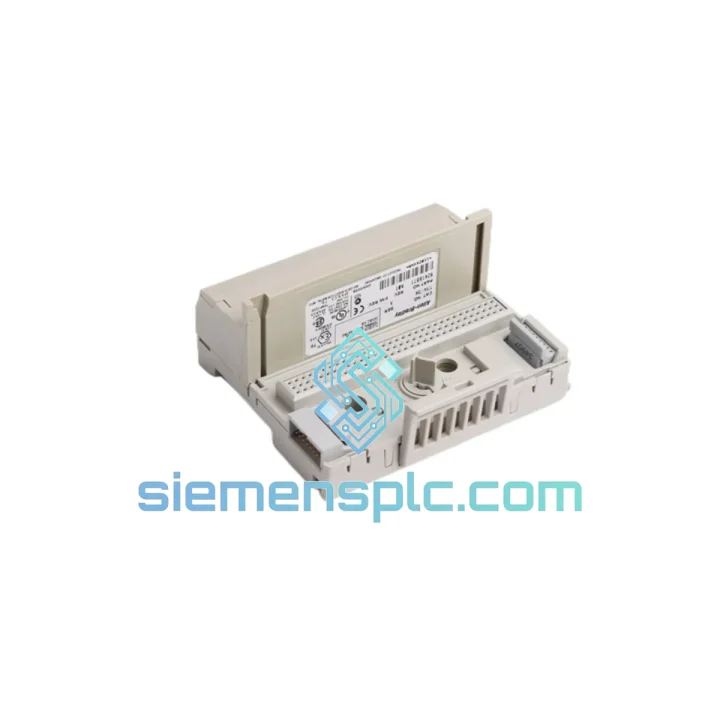

Allen-Bradley 1794-TBN Terminal Base Unit – FLEX I/O

Allen-Bradley 1794-TBN: Terminal Base Unit Anchoring the FLEX I/O Distributed Control Architecture

The Allen-Bradley 1794-TBN is the standard terminal base unit within Rockwell Automation’s FLEX I/O platform — a modular, rail-mounted distributed I/O system engineered for deterministic signal acquisition and actuation across process, discrete, and hybrid control environments. Within a FLEX I/O drop, the 1794-TBN performs three simultaneous functions: it provides the mechanical seat for any 1794-series I/O module, it routes field wiring through a removable screw-terminal block, and it propagates the FLEX I/O backplane bus to the next downstream base via interlocking edge connectors. This three-in-one role makes the 1794-TBN the structural and electrical backbone of every FLEX I/O node.

In distributed control architectures, the terminal base is not a passive component. It defines the physical boundary between the field wiring domain and the backplane data domain. The 1794-TBN enforces this boundary with a removable terminal block that can be pre-wired during panel fabrication, then mated to the I/O module during commissioning — decoupling the electrical installation phase from the software commissioning phase and reducing panel build time by eliminating sequential dependency between wiring crews and controls engineers.

The 1794-TBN accepts the full library of 1794-series modules: digital input, digital output, analog input, analog output, thermocouple, RTD, and specialty modules. A single base form factor accommodates all module types, which simplifies spare parts inventory management and allows system architects to reconfigure I/O types at a node without changing the terminal base or field wiring.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1794-TBN’s hardware design reflects a deliberate separation of concerns between the field wiring layer and the backplane communication layer — a principle that directly supports both EMC compliance and system maintainability.

Backplane Bus Propagation: The interlocking edge connector on the right side of the 1794-TBN mates with the left connector of the adjacent base, forming a continuous backplane bus without discrete cables. This connector geometry eliminates impedance discontinuities that would arise from cable-based backplane wiring, maintaining signal integrity across multi-drop configurations at the FLEX I/O data rates. The mechanical interlock also provides a positive retention force that resists vibration-induced disconnection — relevant in machine-mounted enclosures subject to continuous mechanical vibration per IEC 60068-2-6.

Removable Terminal Block Architecture: The field wiring terminal block is a discrete sub-assembly that mates to the base body via a keyed mechanical interface. This design allows the terminal block — with all field wiring attached — to be removed from the base without disturbing the I/O module or the backplane bus. In practice, this means a failed I/O module can be extracted and replaced while the field wiring remains terminated and the adjacent modules remain operational. Mean time to repair (MTTR) for a module swap in a live panel is measured in minutes rather than hours.

EMC Design Considerations: The 1794-TBN’s metal DIN rail mounting clip provides a low-impedance chassis ground path from the base body to the rail, which serves as the reference ground plane for the enclosure. This ground path is critical for the EMC performance of the seated I/O module: high-frequency noise currents induced on field cables are shunted to the rail ground before they can propagate into the backplane bus. The physical separation between the field terminal block and the backplane connector — enforced by the base geometry — provides spatial isolation that attenuates capacitive coupling between field-side transients and backplane signals.

Module Keying: The 1794-TBN includes a mechanical keying mechanism that can be configured to accept only specific module types, preventing incorrect module insertion during maintenance. This is a hardware-enforced safety interlock that operates independently of software configuration, providing a physical layer of protection against misconfiguration in multi-module drops where different I/O types are mixed.

System Integration Benefits

• Pre-wiring and Staged Commissioning: The removable terminal block allows field wiring to be completed and tested before the I/O module is installed, enabling parallel work streams between electrical and controls teams and compressing overall panel commissioning schedules.
• Zero-rewire Module Replacement: Swapping a failed or reconfigured I/O module requires no field wiring changes — the terminal block remains in place, and only the module is exchanged. This directly reduces MTTR and eliminates the risk of wiring errors during maintenance.
• Universal Module Compatibility: A single 1794-TBN base accommodates any 1794-series module type, allowing I/O type changes (e.g., digital to analog) without replacing the base or re-terminating field wiring — provided the field signal type is compatible.
• Scalable Drop Architecture: Up to 8 terminal bases can be chained per FLEX I/O adapter, allowing I/O density to be scaled incrementally without adding adapters or network nodes. This reduces network topology complexity and adapter licensing costs.
• Deterministic Backplane Latency: The interlocking backplane bus operates at a fixed clock rate, providing deterministic scan-cycle contribution from each I/O module. This is essential for motion control and closed-loop process applications where I/O update jitter directly affects control loop stability.
• Integrated Diagnostic Transparency: FLEX I/O modules seated on the 1794-TBN report module-level diagnostics (over-range, open-wire, blown fuse) back through the backplane to the adapter and upstream to the PLC. The terminal base provides the physical path for this diagnostic data without requiring separate diagnostic wiring.
• DIN Rail Density Optimization: At 94 mm width per base, the 1794-TBN enables high-density I/O packing. An 8-module drop occupies approximately 752 mm of DIN rail — comparable to a single 16-slot rack in some competitive platforms, but with the added flexibility of distributed placement.
• Long-lifecycle Platform Stability: The FLEX I/O platform has maintained backward compatibility across hardware revisions since its introduction. The 1794-TBN is a stable, long-lifecycle component with broad global spare parts availability, reducing the risk of obsolescence-driven system redesign.

Quality Assurance & Global Logistics

Every 1794-TBN unit offered through siemensplc.com is sourced through verified industrial distribution channels with documented supply chain traceability back to authorized Rockwell Automation distributors. Genuine Allen-Bradley components carry catalog label markings, date codes, and series identifiers that are verified against Rockwell Automation’s published product documentation prior to listing.

Pre-shipment inspection covers: catalog label authenticity and legibility, backplane connector pin condition and alignment, terminal block mechanical integrity and screw torque, DIN rail clip retention force, and absence of physical damage or evidence of prior installation. Units that do not pass inspection are not listed or shipped.

Shipments originate from Xiamen, China — a major export hub with direct access to international freight forwarders, express courier networks (DHL, FedEx, UPS), and sea freight consolidators. Standard export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10) — is prepared for every international shipment to support customs clearance in the destination country. Expedited air freight to North America, Europe, Southeast Asia, and the Middle East typically achieves delivery within 3–7 business days from shipment date. All shipments are insured against transit loss and damage.

A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly — no third-party RMA routing. Replacement units are dispatched upon claim verification, with the defective unit returned for failure analysis.
