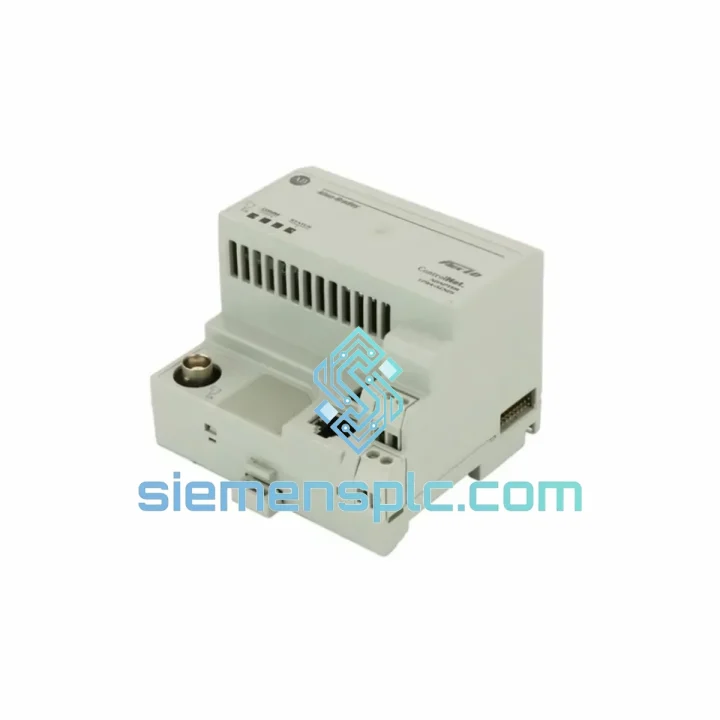

Allen-Bradley 1794-ACN15 ControlNet Adapter – FLEX I/O

Allen-Bradley 1794-ACN15: ControlNet Adapter Architecture and Control Loop Function

The 1794-ACN15 is a ControlNet communication adapter engineered for the Allen-Bradley FLEX I/O distributed I/O platform (1794 Series), manufactured by Rockwell Automation. Its primary function within a control loop is to serve as the deterministic data gateway between field-mounted FLEX I/O modules and a ControlNet scanner residing in a ControlLogix or CompactLogix controller chassis. Unlike passive terminal blocks, this adapter actively manages scheduled and unscheduled ControlNet connections, arbitrates backplane data transfers at 5 Mbps network speed, and maintains connection health status independently of the host controller scan cycle.

In a typical distributed I/O architecture, the 1794-ACN15 mounts on a 1794 terminal base and interfaces directly with the FLEX I/O backplane. Up to eight 1794-series I/O modules — spanning digital, analog, thermocouple, RTD, and specialty types — connect downstream via the backplane bus. The adapter negotiates scheduled connection bandwidth with the ControlNet scanner (e.g., 1756-CNB or 1756-CNBR) during network commissioning via RSNetWorx for ControlNet, establishing a fixed, repeating network update time (NUT) that guarantees deterministic I/O delivery regardless of unscheduled traffic load on the same cable segment.

This architecture is particularly significant in process control and motion-adjacent applications where I/O jitter directly affects PID loop stability or sequencing accuracy. The adapter’s ability to sustain scheduled connections while simultaneously handling unscheduled messaging (e.g., explicit message reads for diagnostics) without degrading scheduled bandwidth is a core design characteristic that differentiates ControlNet from non-deterministic Ethernet-based fieldbus alternatives in high-availability plant environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1794-ACN15 implements a dual-layer communication architecture that separates backplane I/O arbitration from ControlNet media access control (MAC). Internally, a dedicated backplane controller ASIC manages cyclic polling of each installed FLEX I/O module at intervals synchronized to the ControlNet NUT, ensuring that input data captured from field devices is coherent within a single network update window — a property critical for multi-channel analog acquisition where inter-channel skew would introduce measurement error.

EMC Design: The adapter’s PCB layout employs ground plane segmentation between the ControlNet transceiver section and the backplane logic section, reducing conducted emissions coupling between the 5 Mbps coaxial driver and the 5 VDC backplane bus. Ferrite bead filtering on the 24 VDC input rail attenuates high-frequency switching noise from adjacent power supplies, maintaining compliance with EN 61000-4-4 (electrical fast transient) and EN 61000-4-6 (conducted RF immunity) without external filtering components.

Redundant Media Arbitration: When both BNC ports are connected to a dual-cable ControlNet plant, the adapter’s media redundancy logic continuously monitors signal integrity on both channels. Upon detecting a cable fault (signal loss, excessive bit error rate), the adapter executes a sub-millisecond switchover to the healthy channel without generating a connection timeout at the scanner. This switchover is transparent to the Logix controller program — no I/O fault bit is asserted, and the scheduled connection NUT is maintained.

Backplane Power Budget: The 1.0 A @ 5 VDC backplane supply is distributed across all installed modules via the terminal base bus. The adapter enforces a power budget check during initialization; if the aggregate current draw of installed modules exceeds the rated output, the adapter asserts a configuration fault and inhibits module activation, preventing brownout conditions that could corrupt module firmware or produce erratic I/O behavior.

Node Address Management: The ControlNet node address (MAC ID) is set via rotary switches on the adapter face, eliminating dependency on software configuration for basic network addressing. This hardware-based addressing prevents address conflicts caused by firmware corruption or accidental software reconfiguration during maintenance operations.

System Integration Benefits

• Deterministic NUT-based I/O delivery: Scheduled ControlNet connections guarantee fixed-latency I/O updates independent of unscheduled message traffic, enabling stable PID loop execution at controller scan rates as low as 5 ms.
• Transparent redundant media failover: Sub-millisecond cable switchover preserves connection integrity during cable faults without controller-level fault handling or program intervention.
• Hot-swap module replacement: Individual FLEX I/O modules can be removed and reinserted under power without disrupting the ControlNet connection or other nodes on the same network segment.
• EDS-based auto-configuration: Electronic Data Sheet (EDS) files enable Studio 5000 to automatically populate I/O tree entries, tag names, and connection parameters, reducing commissioning time versus manual configuration.
• Unified diagnostic visibility: The adapter reports per-module backplane fault status, ControlNet connection health, and power budget utilization as structured data accessible via explicit messaging from the controller, enabling condition-based maintenance without physical inspection.
• Broad I/O module compatibility: Supports the complete 1794 FLEX I/O library — 24 VDC digital, 120/240 VAC digital, ±10 V / 4–20 mA analog, thermocouple, RTD, SSI encoder, and 1794-series safety modules — within a single adapter node.
• Scalable node expansion: Multiple 1794-ACN15 adapters can coexist on the same ControlNet segment (up to 99 nodes per segment), allowing incremental I/O expansion without rewiring or controller hardware changes.
• FM Class I Division 2 rating: Permits installation in hazardous area panels classified for Group A, B, C, D gases without additional purge or pressurization enclosures, reducing installation cost in petrochemical and upstream oil & gas applications.
