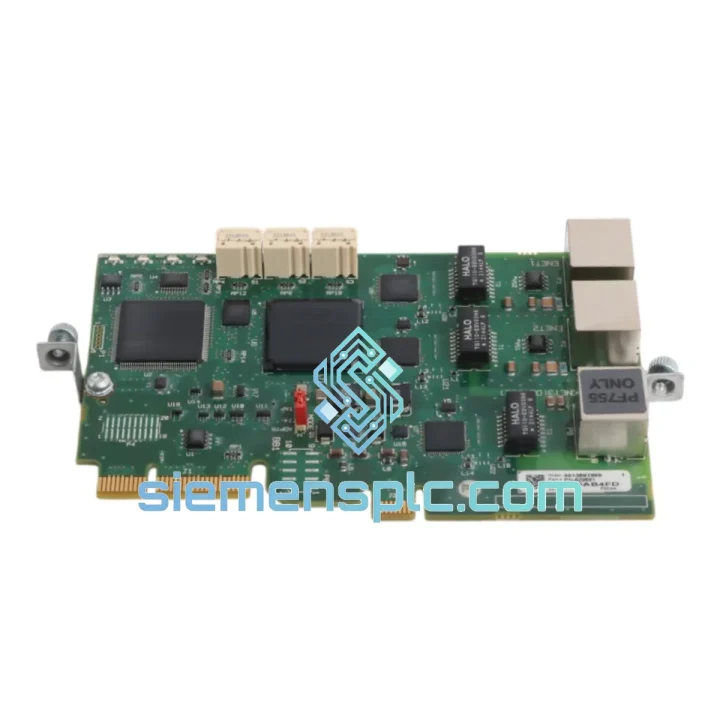

Allen-Bradley 20-750-ENETR EtherNet/IP Module

20-750-ENETR Down? Every Minute Costs Money — We Ship Same Day from Xiamen

Your PowerFlex 750 drive just dropped off the EtherNet/IP network. The line is stopped. Maintenance is on the phone. You already know the 20-750-ENETR is the culprit — the dual-port option module that bridges your drive to the DLR ring is dead. We’ve been here before. So have you.

At siemensplc.com, we stock the Allen-Bradley 20-750-ENETR specifically for situations like this. Not next week. Not after a distributor quote cycle. Today. Our Xiamen warehouse processes same-day dispatch for orders confirmed before 15:00 CST, with DHL Express tracking handed to you within hours.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures before the 20-750-ENETR dies:

• Fault code F111 – Comm Loss on the drive HIM: the PLC lost I/O connection to the drive. First suspect is the option module, not the cable.
• Drive shows Port 4/5/6 – No Module in the parameter list even though the card is physically seated. This is a dead module, not a slot issue.
• DLR ring supervisor reports a ring break at the drive node — both ports on the ENETR must be active for ring continuity. One dead port breaks the entire ring.
• Module status LED stuck on solid red after power cycle: internal firmware corruption or hardware failure. Replacement is the only fix.

Step-by-step hot-swap replacement procedure:

1. Inhibit the drive in the PLC program before pulling power. Set the drive tag to inhibited in Studio 5000 to prevent a major fault on the controller.
2. De-energize the drive — wait for the DC bus voltage indicator to extinguish completely (minimum 5 minutes for larger frame sizes).
3. Remove the old 20-750-ENETR — press the release tab, slide the module straight out. Do not rock it sideways; the connector is fragile.
4. Check the slot connector on the drive for bent pins or debris before inserting the replacement.
5. Seat the new module firmly until the latch clicks. A partial seat causes intermittent faults that are extremely difficult to diagnose.
6. Restore power — the module self-addresses automatically. No DIP switches on this module. IP address is retained in the module’s non-volatile memory if it was previously configured via static assignment.
7. Verify in Studio 5000: right-click the drive tag → Module Properties → check the module identity. Firmware version should auto-display. If the drive firmware is below v4.001, update via ControlFLASH before going online.
8. Re-enable the drive tag in the PLC and confirm the DLR ring supervisor shows a closed ring. Both port LEDs on the ENETR should be solid green.
9. Run a short jog test at low speed before returning the line to production. Confirm all drive parameters are intact — they are stored in the drive, not the option module.

Configuration notes engineers miss:

• The 20-750-ENETR does not store drive parameters. All parameter data lives in the drive’s NVS memory. Replacing the module does not reset your drive configuration.
• If you’re replacing a single-port 20-750-ENET with the ENETR, update your Studio 5000 project: delete the old module definition and re-add using the ENETR catalog number. The EDS files are different.
• For DLR ring recovery after replacement, the ring supervisor (typically a ControlLogix controller) will automatically detect the restored node within 3–5 seconds. No manual intervention needed.
• DHCP lease conflicts: if the old module’s IP was DHCP-assigned, the new module will request a new lease. Ensure your DHCP server has a free address in the subnet, or pre-configure a static IP via BOOTP before installation.

Reliability in Harsh Conditions

The 20-750-ENETR is built to operate where office-grade networking hardware fails within weeks. Rockwell Automation designed this module for the PowerFlex 750 platform — a drive series deployed in steel mills, automotive stamping lines, water treatment facilities, and offshore platforms.

The module’s conformal-coated PCB resists condensation and airborne contaminants common in food processing and chemical plants. Operating across 0°C to 50°C ambient with storage tolerance down to −40°C, it survives the thermal cycling that kills consumer-grade electronics. The RJ45 connectors are rated for industrial vibration profiles per IEC 60068-2-6, meaning the module stays connected on machinery that shakes continuously during operation.

In DLR ring configurations, the module’s dual-port architecture provides passive fault tolerance at the network level — if one Ethernet segment fails, traffic reroutes through the alternate port within milliseconds, keeping the PLC-to-drive connection alive without any software intervention. This is not a software feature; it is hardware-level ring redundancy built into the silicon.

Every unit we ship from Xiamen undergoes incoming inspection: visual examination of the PCB and connector, label and date-code verification against Rockwell’s serialization database, and a power-on functional check. We do not ship modules that have been opened, repinned, or relabeled. What you receive is what Rockwell shipped from the factory.
