Allen-Bradley 20-HIM-A6 Human Interface Module – PowerFlex Architecture Class

Allen-Bradley 20-HIM-A6: DPI-Based Operator Interface for PowerFlex Architecture Class Variable Frequency Drives

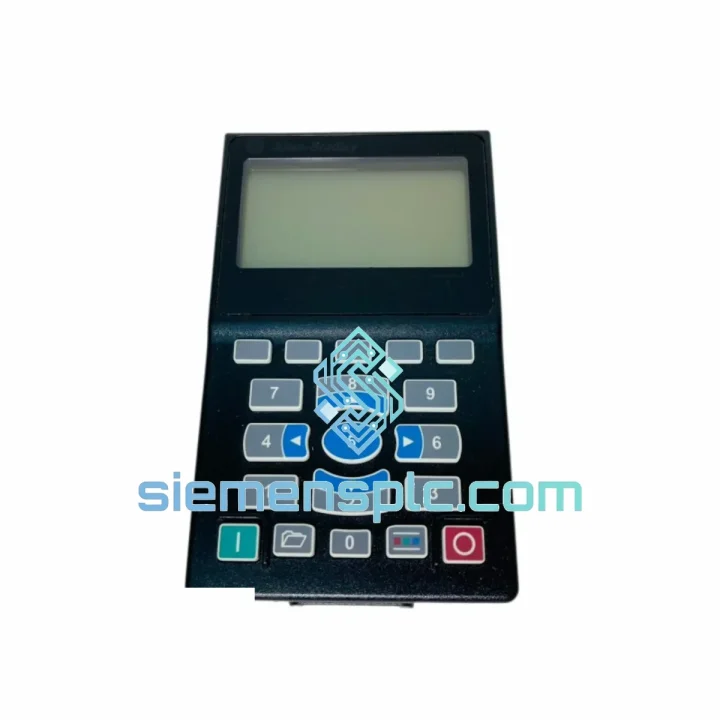

The Allen-Bradley 20-HIM-A6 is a detachable Human Interface Module (HIM) engineered specifically for the PowerFlex Architecture Class drive family — encompassing the PowerFlex 70, 700, 700H, 700S, 700L, and 7000 series. Within a drive control loop, this module occupies the operator-interface layer of the system hierarchy, sitting between the field engineer and the drive’s internal parameter database. Its primary function is deterministic, bidirectional communication with the drive’s control board via the Drive Peripheral Interface (DPI) bus, enabling full parameter read/write access, real-time status monitoring, and structured fault diagnostics without any external software dependency.

Unlike generic HMI panels that rely on Modbus RTU or EtherNet/IP for drive access, the 20-HIM-A6 communicates natively over DPI — a proprietary Rockwell Automation serial peripheral bus operating at 125 kbps. This native protocol eliminates gateway latency and ensures that parameter writes are committed directly to the drive’s non-volatile EEPROM in a single transaction cycle. In multi-drive panel installations where commissioning time is measured in hours per drive, the 20-HIM-A6’s parameter copy (upload/download) function reduces per-drive configuration time from 30–45 minutes to under 5 minutes by transferring a complete parameter image between drives of identical catalog numbers and firmware revisions.

The module’s detachable form factor is a deliberate mechanical design decision. In large motor control centers (MCCs) or switchgear rooms where drives are mounted at heights or in confined bays, the ability to unplug the HIM from the drive face and operate it at the end of a 3-meter DPI extension cable (catalog: 20-HIM-H30) is operationally significant. The engineer retains full programming capability while maintaining a safe working distance from live bus bars and high-voltage terminals — a requirement explicitly addressed in NFPA 70E arc flash boundary calculations for 480 V and 600 V drive installations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 20-HIM-A6’s internal architecture is built around a low-power embedded microcontroller that manages three concurrent tasks: DPI frame parsing, LCD rendering, and keypad debounce/event queuing. The DPI bus uses a master-slave token-passing scheme where the drive’s control board acts as bus master. The HIM operates as a peripheral node, responding to polling cycles at a fixed 10 ms interval. This deterministic polling interval means that parameter value updates displayed on the LCD reflect drive state with a maximum latency of 10 ms — adequate for operator monitoring but not intended as a real-time oscilloscope substitute.

EMC Design: The HIM’s DPI interface circuitry incorporates common-mode choke filtering on the data lines to suppress conducted emissions from the drive’s PWM switching noise — typically 4–16 kHz carrier frequencies generating broadband EMI in the 150 kHz–30 MHz range. The module’s plastic housing is not a Faraday cage, but the DPI cable shield is terminated at the drive chassis ground, providing a low-impedance return path for induced currents. In installations with high radiated EMI (e.g., adjacent to large servo drives or welding equipment), Rockwell recommends routing the DPI cable away from power conductors and using ferrite cores at both cable terminations.

Parameter Storage Architecture: The HIM’s onboard EEPROM stores a single parameter image — a sequential binary snapshot of all drive parameter values indexed by parameter number. During a parameter upload (drive → HIM), the module reads each parameter group sequentially via DPI read transactions and writes the values to EEPROM in a single pass. During download (HIM → drive), the process reverses: the HIM issues DPI write transactions for each parameter, and the drive’s control board validates each value against its internal range-check table before committing to its own EEPROM. Parameters that fail range validation are skipped and flagged — a safeguard against cross-firmware-version incompatibilities.

Hot-Swap Behavior: The DPI bus supports peripheral hot-insertion. When the 20-HIM-A6 is connected to a powered drive, the bus master detects the new node within one polling cycle (10 ms) and begins including it in the token-passing sequence. The HIM performs a self-initialization routine — reading drive nameplate data, firmware version, and parameter count — before presenting the main menu. This initialization sequence takes approximately 2–4 seconds depending on drive parameter count.

System Integration Benefits

• Zero-Software Commissioning: The 20-HIM-A6 provides access to all drive parameter groups — Motor Control, Speed Reference, Protection, I/O Configuration, Communication, and Diagnostics — without RSLogix 5000, Studio 5000, or DriveExecutive. This eliminates laptop dependency in field service scenarios where software licensing or network access is unavailable.
• Multi-Drive Parameter Replication: A single HIM can store and replicate a validated parameter set across an entire bank of identical drives. In pump station or conveyor applications with 10–20 identical drives, this reduces commissioning labor by an estimated 60–70% compared to manual per-drive programming.
• Structured Fault Diagnostics: The 8-event fault buffer with drive-state snapshots (output frequency, output current, DC bus voltage at time of fault) provides the data needed to distinguish nuisance trips from genuine process faults — reducing unnecessary drive replacements and shortening root-cause analysis cycles.
• Deterministic Display Refresh: The 10 ms DPI polling cycle ensures that output frequency, output current, and DC bus voltage readings on the LCD are updated at 100 Hz — sufficient for observing drive behavior during acceleration/deceleration ramps without external instrumentation.
• DPI Peripheral Coexistence: The DPI bus supports up to five simultaneous peripheral nodes. The 20-HIM-A6 operates alongside communication adapters (20-COMM-E EtherNet/IP, 20-COMM-D DeviceNet, 20-COMM-P PROFIBUS) without bus contention, allowing the HIM to remain connected during normal network-controlled operation for local monitoring and emergency override.
• IP 54 Panel Integration: When installed in the optional panel-mount bezel, the 20-HIM-A6 achieves IP 54 ingress protection — suitable for washdown-adjacent environments in food processing and beverage plants where occasional water spray is present.
• Multilingual Operator Interface: Six display languages reduce parameter entry errors in multinational facilities. Incorrect parameter entry (e.g., wrong motor nameplate frequency) is a leading cause of drive protection trips during initial commissioning; native-language menus measurably reduce this error vector.
• Non-Volatile Retention Without Battery: EEPROM-based storage eliminates the battery maintenance cycle associated with SRAM-backed parameter storage. In installations with infrequent maintenance access (remote pump stations, offshore platforms), this removes a failure mode that would otherwise require scheduled battery replacement every 3–5 years.

Quality Assurance & Global Logistics

Every Allen-Bradley 20-HIM-A6 unit supplied by siemensplc.com is sourced through verified distribution channels and subjected to a structured pre-shipment inspection protocol. Physical authentication checks include verification of Rockwell Automation’s holographic tamper-evident label on the rear housing, catalog number and date code cross-reference against Rockwell’s published production records, and connector pin integrity inspection under magnification. Functional verification consists of a powered DPI connection test to a known-good PowerFlex 700 reference drive, confirming LCD initialization, full keypad response, parameter read/write transactions, and fault log access.

Units are dispatched from our Xiamen, China warehouse in original or equivalent ESD-safe packaging with full documentation including certificate of conformance and packing list. Xiamen’s geographic position — served by Xiamen Gaoqi International Airport (XMN) and Xiamen Port — provides direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Typical transit times: Southeast Asia 1–3 business days; Europe 3–5 business days; North America 4–6 business days; Middle East and Africa 4–7 business days. All shipments include tracking numbers issued within 24 hours of dispatch. Export documentation (commercial invoice, packing list, HS code 8537.10) is prepared to comply with destination country customs requirements. A 12-month warranty covers manufacturing defects under normal operating conditions.
