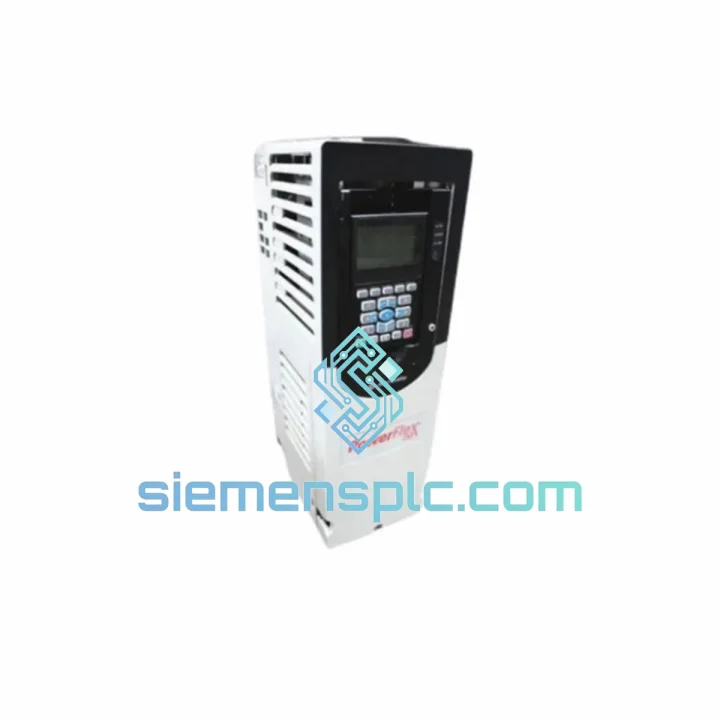

Allen-Bradley 20F11NC022JA0NNNNN Variable Frequency Drive – PowerFlex 753

Allen-Bradley 20F11NC022JA0NNNNN — PowerFlex 753 Mid-Range AC Drive in Industrial Motor Control Architecture

The Allen-Bradley 20F11NC022JA0NNNNN is a 480 VAC, 3-phase, 22 A (Normal Duty) variable frequency drive belonging to Rockwell Automation’s PowerFlex 753 platform. Positioned between the entry-level PowerFlex 523/525 series and the high-performance PowerFlex 755, this unit addresses the engineering requirements of applications that demand deterministic speed regulation, embedded network connectivity, and functional safety integration without the cost structure of a full servo-class drive. The catalog number encodes the complete factory configuration: Frame C open-type enclosure, no HIM, no brake resistor, standard I/O complement, and embedded EtherNet/IP communication — a specification set that covers the majority of general-purpose industrial motor control deployments.

At its core, the 20F11NC022JA0NNNNN employs a three-phase diode bridge rectifier feeding a DC bus capacitor bank, followed by an IGBT-based inverter stage switching at a selectable carrier frequency of 2–10 kHz. The PWM output waveform is generated by a dedicated DSP executing the selected control algorithm — V/Hz, Sensorless Vector Control (SVC), or closed-loop flux vector — at a 250 µs current loop update rate. This architecture delivers output frequency resolution of 0.01 Hz across a 0–400 Hz range, with speed regulation of ±0.5% (SVC, no encoder) relative to base speed under steady-state load variation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Power Stage Architecture: The rectifier section uses a 6-pulse diode bridge, producing a DC bus with approximately 650 VDC under nominal 480 VAC input. The bus capacitor bank is sized to sustain ride-through during brief input voltage sags — typically 15 ms at full load — before the undervoltage fault threshold is reached. The IGBT inverter stage uses discrete gate driver ICs with desaturation detection, providing sub-microsecond overcurrent response that protects the switching devices before the DSP fault handler executes.

EMC Design: The 20F11NC022JA0NNNNN incorporates an internal Class A EMC filter as standard, attenuating conducted emissions on the AC supply lines to comply with EN 61800-3 Category C2 limits. Common-mode chokes on the output phase conductors reduce high-frequency leakage current to ground — a critical parameter in installations with long motor cable runs (>30 m) where parasitic capacitance to earth can trigger nuisance ground fault trips. For installations requiring Category C1 (residential environment) compliance, an external supplementary filter is required.

Thermal Management: Frame C units use a forced-air cooling path with an internal fan drawing ambient air across the heatsink fins. The thermal model runs in firmware, tracking junction temperature estimates for each IGBT module. When the estimated junction temperature approaches the derating threshold, the drive reduces carrier frequency automatically (if auto-derating is enabled) rather than tripping — maintaining process continuity at the cost of slightly increased motor acoustic noise.

Safe Torque-Off (STO) Implementation: The STO function is implemented as a dual-channel hardware circuit, independent of the main DSP. Each channel controls a separate gate-drive enable line to the IGBT inverter. Both channels must be simultaneously de-energized to achieve the STO state (no torque output). The circuit is certified to SIL 2 per IEC 62061 and PLd per ISO 13849-1, with a PFH (Probability of dangerous Failure per Hour) value published in Rockwell’s safety reference manual. This architecture eliminates the need for an external safety relay in many STO-only safety functions, reducing panel wiring complexity and component count.

EtherNet/IP Dual-Port DLR: The embedded EtherNet/IP adapter supports Device Level Ring (DLR) topology, allowing the drive to participate in a ring network without an external managed switch. In DLR mode, the drive acts as a ring node, forwarding frames at the hardware level with sub-millisecond fault recovery — maintaining network communication to all other nodes within one ring segment even after a single cable break. This is particularly relevant in machine-builder applications where cable routing constraints make ring topology more practical than star wiring.

System Integration Benefits

• Logix Add-On Profile (AOP) Support: The PowerFlex 753 AOP for Studio 5000 exposes all drive parameters as structured tags within the Logix controller project, eliminating manual parameter address mapping and enabling tag-based ladder or structured text programming with full IntelliSense support.
• CIP Explicit and Implicit Messaging: Implicit (I/O) messaging delivers speed reference and control word to the drive at the RPI (Requested Packet Interval) — configurable down to 2 ms — providing deterministic closed-loop speed control from the Logix controller without polling overhead.
• Integrated Diagnostics via EtherNet/IP: Fault codes, warning conditions, DC bus voltage, output current, motor speed, and energy consumption data are all accessible as CIP attributes, enabling FactoryTalk Diagnostics or custom HMI dashboards to display drive health without additional instrumentation wiring.
• Modular Option Slot Expansion: Two internal option slots accept Rockwell’s 20-750 series option cards — encoder feedback (incremental or absolute), additional analog I/O, extended digital I/O, or a second communication adapter — allowing the base drive to be field-upgraded as application requirements evolve.
• Energy Data Logging: The drive’s onboard energy metering tracks kWh consumption and calculates power factor, providing data for ISO 50001 energy management reporting without external power meters on the motor branch circuit.
• Sleep/Wake and PID Control: The embedded PID controller with sleep/wake function enables the drive to autonomously regulate a process variable (pressure, flow, level) and shut down the motor when demand falls below a configurable threshold — reducing energy consumption on variable-torque pump and fan loads without PLC intervention.
• Parameter Security and Access Control: Four-level password protection (view, basic, advanced, full) prevents unauthorized parameter modification in multi-operator environments, with a parameter change log accessible via the HIM or network for audit trail purposes.
• GuardLogix Safety Integration: The STO inputs can be wired directly to a GuardLogix safety output module, with the safety function verified and documented within the Studio 5000 safety task — simplifying TÜV or CE machinery directive safety validation documentation.

Quality Assurance & Global Logistics

Every Allen-Bradley 20F11NC022JA0NNNNN unit dispatched from our Xiamen facility undergoes a structured pre-shipment verification protocol. Nameplate data — catalog number, series letter, firmware revision, and country of manufacture — is cross-referenced against Rockwell Automation’s published documentation. The enclosure, terminal block torque marks, option slot covers, and cooling fan are inspected for physical integrity. Where test infrastructure permits, the unit is powered and basic parameter read/write operations are confirmed prior to packing.

Packaging follows IEC 60068-2-32 drop-test guidelines: the drive is placed in an anti-static bag, surrounded by custom-cut polyethylene foam inserts, and sealed in a double-wall corrugated carton rated for international air and sea freight handling. Each shipment includes a commercial invoice, packing list, and HS code declaration (HS 8504.40) as standard. Certificate of Origin (COO), ECCN classification documentation, and material safety data are available on request.

Logistics from Xiamen, China covers all major global destinations. Air freight to Europe (Frankfurt, Amsterdam) and North America (Los Angeles, Chicago) typically achieves 3–5 business day transit. Sea freight LCL consolidation is available for multi-unit orders where lead time permits. All shipments are tracked from dispatch to delivery, with tracking numbers provided within 24 hours of collection. A 12-month warranty covers manufacturing defects; warranty claims are processed with a target 5-business-day response for diagnosis and replacement authorization.
