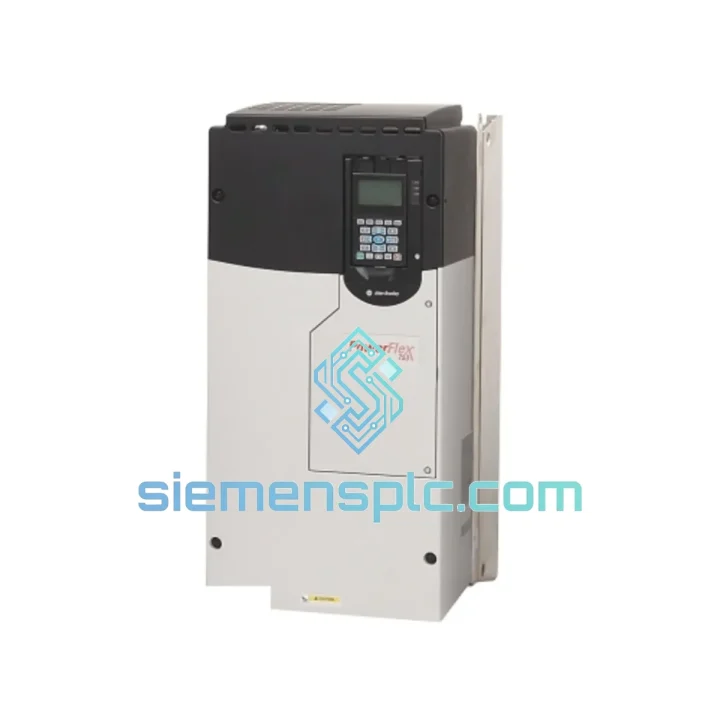

Allen-Bradley 20F1ANF015JN0NNNNN Variable Frequency Drive – PowerFlex 753

Allen-Bradley 20F1ANF015JN0NNNNN PowerFlex 753 — 600V AC Drive in Industrial Motor Control Architecture

The Allen-Bradley 20F1ANF015JN0NNNNN is a Frame F, 600V class, 15A normal-duty AC variable frequency drive belonging to the PowerFlex 753 product family, manufactured by Rockwell Automation. Within a closed-loop motor control architecture, this drive occupies the position between the upstream PLC/motion controller and the downstream induction or permanent-magnet motor, executing torque and speed commands with sub-millisecond update cycles. Its embedded EtherNet/IP port eliminates the need for a separate communication adapter card in standard Logix-based topologies, reducing panel footprint and wiring complexity while maintaining deterministic I/O scan performance across the control network.

The 20F1ANF015JN0NNNNN is configured as an open-type (IP20) enclosure drive, designed for installation inside a UL Type 1 or NEMA 1 enclosure. The Frame F mechanical form factor accommodates a 15A continuous output current rating at 600V AC three-phase input, corresponding to approximately 7.5–11 kW motor shaft power depending on motor efficiency class. The drive accepts input voltage in the range of 500–600V AC ±10%, making it compatible with 575V North American industrial distribution systems as well as 600V Canadian grid standards without external transformer intervention.

At the control layer, the 20F1ANF015JN0NNNNN supports both Sensorless Vector Control (SVC) and Volts-per-Hertz (V/Hz) regulation modes. SVC mode enables torque production at zero speed without encoder feedback, achieving speed regulation accuracy of approximately ±0.5% of base speed under variable load conditions — adequate for pump, fan, compressor, and general conveyor applications where encoder installation is impractical. For applications requiring tighter speed holding or full torque at standstill, the drive’s option card slots accept encoder feedback modules (20-750-UFB) to enable closed-loop flux vector control.

The Safe Torque Off (STO) function, integrated as standard hardware in the 20F1ANF015JN0NNNNN, meets IEC 62061 SIL 2 and ISO 13849-1 PLd requirements without requiring an external safety relay in the STO circuit. This allows machine builders to achieve Category 3 stop functions directly through the drive’s dual-channel STO input terminals, reducing BOM cost and panel space in safety-rated applications such as packaging machinery, press lines, and robotic work cells.

siemensplc.com maintains verified stock of the 20F1ANF015JN0NNNNN sourced through authenticated supply channels. All units are inspected for label integrity, holographic seal condition, and firmware revision consistency prior to dispatch. Shipments originate from Xiamen, China, with DHL Express and FedEx International Priority as primary carriers, achieving 3–5 business day delivery to most Asia-Pacific, European, and Middle Eastern destinations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PowerFlex 753 platform employs a three-stage power conversion topology: an uncontrolled diode bridge rectifier converts incoming 600V AC to a nominal 850V DC bus, followed by a DC link capacitor bank sized for ride-through during brief input voltage sags (typically 15–20 ms at full load), and a three-phase IGBT inverter stage that synthesizes the variable-frequency output. The IGBT gate driver circuits operate with isolated power supplies per phase leg, preventing common-mode ground loops that would otherwise corrupt encoder or analog feedback signals in sensitive motion applications.

EMC performance in the 20F1ANF015JN0NNNNN is addressed at two levels. At the input stage, an integrated DC bus choke attenuates line-frequency harmonic currents, reducing total harmonic distortion (THDi) at the point of common coupling — a critical requirement in facilities where multiple drives share a common transformer secondary. At the output stage, the drive’s internal dV/dt filtering limits the rate of voltage rise on motor cable insulation, extending motor winding life in installations with cable runs exceeding 30 meters. For installations requiring full EN 61800-3 Category C2 compliance, an external EMC filter (catalog suffix -EF) can be added without modifying the drive’s internal architecture.

The dual-channel STO hardware path is implemented as a hardwired logic circuit independent of the drive’s main DSP firmware. Each STO channel monitors a dedicated optocoupler input; both channels must be simultaneously de-energized to disable the IGBT gate pulses. The circuit architecture prevents a single-point failure in either channel from defeating the safety function, satisfying the diagnostic coverage requirements for PLd Category 3 per ISO 13849-1. The STO response time from input de-energization to IGBT gate suppression is specified at ≤20 ms, consistent with SIL 2 probabilistic failure rate targets (PFH < 1×10⁻⁶ /h).

The drive’s modular I/O architecture separates the control board from the power stage via a defined backplane connector, allowing field replacement of the control module without disturbing the power wiring. The control board hosts the main DSP (executing the motor control algorithm at a 250 µs task rate), the EtherNet/IP ASIC, non-volatile parameter storage (EEPROM), and the real-time clock used for fault timestamp logging. Parameter data is stored in a structured fault log with a 10-event rolling buffer, each entry recording timestamp, fault code, output frequency, output current, and DC bus voltage at the moment of fault — data directly accessible via the EtherNet/IP explicit messaging interface without requiring a physical HIM connection.

System Integration Benefits

• Native EtherNet/IP Integration: The embedded EtherNet/IP port supports both implicit (I/O) messaging at configurable RPI rates (as low as 2 ms) and explicit messaging for parameter read/write, enabling full drive parameterization and real-time status monitoring from Studio 5000 Logix Designer without additional gateway hardware.
• Deterministic Control Loop Performance: With a 250 µs motor control task cycle and EtherNet/IP RPI as low as 2 ms, the drive maintains speed regulation accuracy of ±0.5% under dynamic load transients, supporting applications where process consistency directly affects product quality.
• Scalable Safety Architecture: The hardware STO function integrates directly into GuardLogix safety controller architectures via the drive’s dual-channel STO terminals, eliminating external safety relays and reducing the safety circuit component count by up to 60% compared to contactor-based solutions.
• Diagnostic Transparency: The 10-event fault log with timestamped electrical parameters (current, voltage, frequency at fault) enables root-cause analysis without oscilloscope instrumentation, reducing mean time to repair (MTTR) in production environments.
• Flexible Motor Control Modes: Switching between V/Hz and SVC modes via a single parameter change (without rewiring) allows the same drive to serve both fixed-speed pump applications and variable-torque conveyor applications within the same facility, reducing spare parts inventory.
• Expandable I/O via Option Cards: Two peripheral option card slots accept communication adapters (DeviceNet, PROFIBUS, Modbus/TCP), encoder feedback modules, and extended I/O cards, allowing the drive to adapt to evolving system requirements without hardware replacement.
• Energy Optimization: The adjustable switching frequency (2–10 kHz) allows operators to trade off between audible motor noise (higher switching frequency) and drive thermal efficiency (lower switching frequency), optimizing energy consumption for the specific load profile.
• Reduced Panel Footprint: The Frame F form factor with integrated DC bus choke and dynamic braking transistor eliminates three separate panel components (line reactor, braking module, communication adapter) that would otherwise be required with competing drive platforms at equivalent power ratings.
• Firmware Consistency Verification: Each unit dispatched from siemensplc.com is checked for firmware revision alignment with the current Rockwell Automation release matrix, ensuring compatibility with Studio 5000 v32+ AOP (Add-On Profile) without requiring field firmware updates prior to commissioning.

Quality Assurance & Global Logistics

Every Allen-Bradley 20F1ANF015JN0NNNNN unit available through siemensplc.com is sourced through verified supply channels and subjected to a structured pre-dispatch inspection protocol. Physical inspection covers label integrity (part number, date code, country of origin markings), holographic seal condition on the control module cover, housing surface finish consistency, and terminal block condition. Units exhibiting any evidence of prior installation, repackaging, or label alteration are rejected and not offered for sale.

Shipments originate from our Xiamen, China warehouse facility. Xiamen’s port infrastructure and direct air freight connections to major international hubs (Hong Kong, Shanghai Pudong, Singapore Changi) enable consistent 3–5 business day delivery to most Asia-Pacific destinations and 5–7 business day delivery to European and Middle Eastern addresses via DHL Express or FedEx International Priority. All shipments include a full commercial invoice, packing list, and certificate of origin. ESD-protective anti-static packaging with shock-absorbing foam inserts is used as standard for all drive shipments, regardless of order quantity.

A 12-month warranty is provided on all units from the date of dispatch. Warranty coverage addresses manufacturing defects and component failures under normal operating conditions as defined in Rockwell Automation publication 750-TD001. Warranty claims are processed directly by siemensplc.com; customers are not required to engage Rockwell Automation’s warranty channel. For OEM and system integrator accounts requiring volume pricing, blanket purchase orders, or consignment stock arrangements, contact [email protected] with your annual volume forecast and delivery schedule requirements.
