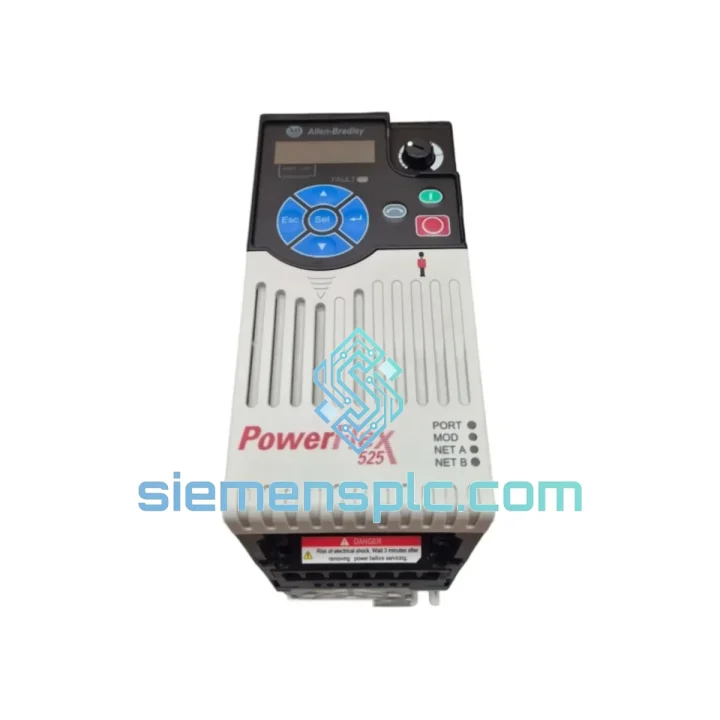

Allen-Bradley 25B-A2P5N114 AC Variable Frequency Drive – PowerFlex 525

Allen-Bradley 25B-A2P5N114: Single-Phase 240V Input Compact AC Drive in the PowerFlex 525 Architecture

The 25B-A2P5N114 is a 0.4 kW (0.5 HP) compact AC variable frequency drive from Rockwell Automation’s PowerFlex 525 platform. It accepts 200–240V AC single-phase input and delivers a regulated three-phase output to the motor load — a topology that eliminates the dependency on three-phase utility infrastructure in light-duty industrial and OEM applications. The drive’s embedded dual-port EtherNet/IP interface, integrated Safe Torque Off (STO) function, and modular I/O architecture position it as a self-contained motion control node rather than a peripheral device.

In a closed-loop control architecture, the 25B-A2P5N114 occupies the actuator layer between the supervisory PLC and the motor. Speed reference signals arrive via EtherNet/IP implicit messaging (Class 1 I/O) or via analog input (0–10V DC / 4–20 mA). The drive’s internal DSP executes the PWM switching algorithm at a carrier frequency selectable from 2 to 16 kHz, shaping the output voltage waveform to minimize harmonic distortion and motor heating. Closed-loop vector control mode requires an encoder feedback card (optional), enabling torque regulation at near-zero speed — a requirement in tension-control and winding applications.

The single-phase input topology of the 25B-A2P5N114 deserves specific engineering attention. When a three-phase drive is fed from a single-phase source, the DC bus ripple frequency drops from 360 Hz (six-pulse rectification on 60 Hz supply) to 120 Hz. The PowerFlex 525 compensates for this through an oversized DC bus capacitor bank and a software-implemented bus voltage ripple compensation algorithm that modulates the PWM duty cycle in real time. This prevents the ripple from propagating as torque pulsation to the motor shaft — a critical requirement in precision conveyor and dosing pump applications.

The drive’s parameter set is organized into linear and application-specific groups accessible via the integral LCD keypad or remotely through Connected Components Workbench (CCW) software. Over 200 programmable parameters govern acceleration/deceleration profiles (S-curve and linear), PID setpoint control, flying start (catch a spinning motor), and energy-saving sleep/wake functions. The AppView and CustomView display modes allow operators to monitor application-specific variables — flow rate, pressure, or conveyor speed — without navigating the full parameter tree.

From a panel design perspective, the 25B-A2P5N114 occupies approximately 72 mm of DIN rail width. Its IP20 / NEMA Type 1 enclosure is suitable for installation inside a sealed control cabinet. The drive generates heat at approximately 15–20W under full load; forced-air cooling via the internal fan maintains junction temperatures within specification at ambient up to 50°C. Above 50°C, output current derating applies at 2% per degree Celsius.

For system integrators working within a Logix ecosystem, the drive ships with an Add-On Profile (AOP) compatible with Studio 5000 Logix Designer. The AOP exposes all drive parameters as structured tags within the PLC project, enabling ladder logic or structured text routines to read fault codes, monitor output frequency, and command speed references without manual parameter addressing. This integration reduces commissioning time and standardizes the diagnostic interface across multi-drive installations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

DC Bus Ripple Compensation on Single-Phase Input: The 25B-A2P5N114 rectifies a single-phase AC source, producing a DC bus with 120 Hz ripple (at 60 Hz mains). The drive’s firmware implements a real-time ripple feed-forward algorithm: the DC bus voltage is sampled at high frequency, and the PWM modulation index is adjusted inversely to the instantaneous bus voltage deviation. This keeps output voltage magnitude stable within ±2% across the ripple cycle, preventing torque pulsation at twice the mains frequency — a failure mode common in undersized single-phase drive designs.

EMC Architecture: The drive integrates a Class C2 EMC filter on the input stage, attenuating conducted emissions above 150 kHz per EN 61800-3. The dual-layer PCB ground plane separates the high-frequency switching node from the control signal ground, reducing common-mode noise coupling to the analog input circuitry. Shielded motor cable termination at the drive’s PE terminal provides a low-impedance return path for high-frequency common-mode currents, preventing them from circulating through the control cabinet structure.

Safe Torque Off (STO) Implementation: The STO function operates at the gate-driver level, disabling the IGBT firing pulses via a hardware interlock independent of the main DSP. This architecture ensures that a software fault or DSP lockup cannot inadvertently re-enable the output stage. The STO response time is less than 10 ms from input de-energization to output inhibit — compliant with SIL 2 / PLd requirements without external safety relays in many machine configurations.

Thermal Management: An internal variable-speed fan modulates airflow based on heatsink temperature measured by an NTC thermistor. At light loads (<30% rated current), the fan may stop entirely, reducing acoustic noise and extending bearing life. A thermal model running in the background estimates IGBT junction temperature and triggers a pre-fault warning at 90% of the thermal limit, allowing the supervisory PLC to reduce load before a protective trip occurs.

System Integration Benefits

• Native EtherNet/IP with DLR Support: The embedded dual-port switch enables Device Level Ring topology, providing media redundancy without an external managed switch. Ring recovery time is under 3 ms, maintaining deterministic I/O update rates during a single cable fault.
• Studio 5000 Add-On Profile (AOP): The AOP maps all drive parameters and status words to structured PLC tags, enabling ladder logic and structured text routines to access drive data without manual parameter addressing — reducing commissioning time by eliminating manual tag creation.
• Integrated PID Control Loop: An onboard PID regulator accepts a process feedback signal (pressure transducer, flow meter) on the analog input and generates the speed reference internally, offloading this computation from the PLC scan cycle.
• Flying Start Function: The drive can detect and synchronize to a coasting motor before applying the output voltage, preventing the high inrush current and mechanical shock associated with applying full voltage to a spinning load — critical in fan and pump restart scenarios.
• Energy Monitoring and Sleep/Wake: The drive logs kWh consumption and can enter a low-power sleep state when the process demand drops below a configurable threshold, resuming automatically when demand recovers — reducing energy consumption in variable-load applications.
• Fault Diagnostics with Timestamp: The drive maintains a fault queue of the last 8 faults with timestamp, fault code, output frequency, and DC bus voltage at the time of fault — providing the data needed for root-cause analysis without external data logging hardware.
• Modular Option Card Architecture: The drive accepts optional encoder feedback cards, expanded I/O cards, and alternative communication adapters (DeviceNet, PROFIBUS, CANopen) via the internal option card slot, allowing the base hardware to be reconfigured for different network topologies without replacement.
• Configurable Acceleration/Deceleration Profiles: Independent S-curve and linear ramp profiles for acceleration and deceleration, with programmable jerk limits, reduce mechanical stress on gearboxes, couplings, and conveyor belts during speed transitions.

Quality Assurance & Global Logistics

Every 25B-A2P5N114 unit supplied by siemensplc.com is sourced through traceable supply channels and undergoes a structured pre-shipment inspection protocol. Inspection steps include catalog number and date code verification against Rockwell Automation’s published specifications, holographic label authentication, packaging integrity check, and visual inspection of PCB and terminal blocks for signs of rework or counterfeit markings.

Units are dispatched from our warehouse in Xiamen, China — a major logistics hub with direct access to international express carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard export documentation (commercial invoice, packing list, certificate of origin) is prepared for all international shipments. For orders requiring air freight consolidation or sea freight LCL/FCL, our logistics team coordinates with licensed freight forwarders to optimize transit time and landed cost.

Typical transit times: 3–5 business days to Southeast Asia and Japan; 5–7 business days to Europe and North America; 7–10 business days to the Middle East and Africa. All shipments include real-time tracking. A 12-month warranty covers manufacturing defects from the date of shipment. RMA procedures are handled directly by our technical team with a target response time of 24 hours.
