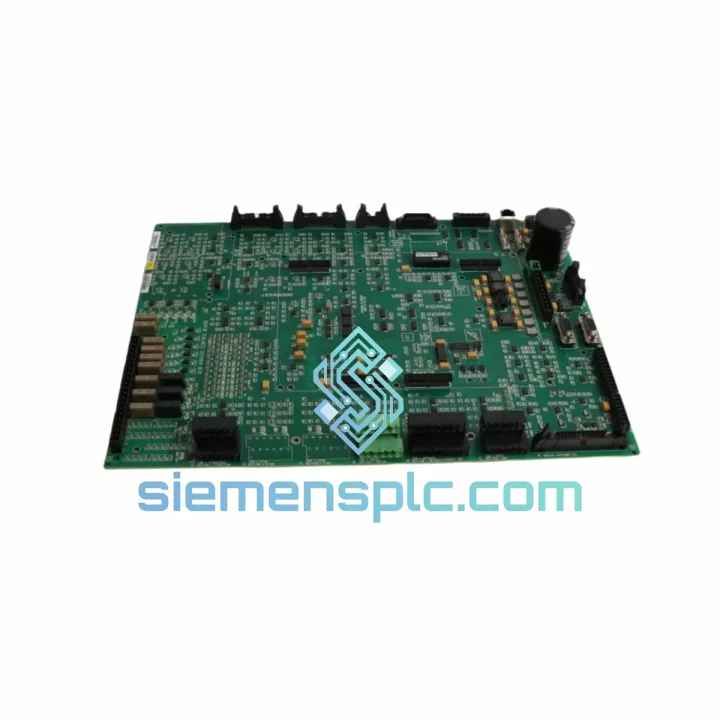

Allen-Bradley 80190-240-02-R VFD Control Board

80190-240-02-R Control Board: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your line is down. Every minute costs money. The Allen-Bradley 80190-240-02-R PowerFlex VFD control board is the nerve center of your drive — when it fails, nothing moves. We stock this board in Xiamen and ship globally via DHL/FedEx express. While your competitors wait 4–6 weeks for factory lead times, your replacement is already on the way.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years on the floor taught me one thing: swapping a control board wrong costs more than the board itself. Follow this sequence and you won’t be back here in a week.

Common Failure Signatures for 80190-240-02-R:

• Fault F002 / F004 (NVS Fault / NVS Data Loss): The board’s non-volatile storage has corrupted. Parameters are gone. A new board will come blank — you must reload your parameter file from DriveExecutive or Studio 5000 before restarting the drive. If you don’t have a backup, pull parameters from a sister drive on the same line before you pull the board.
• Fault F081 (Drive Not Enabled / Comm Loss): Often misdiagnosed as a PLC issue. If the HIM shows comms loss immediately after power-up and the PLC program is confirmed healthy, the control board’s comms ASIC is the likely culprit.
• Fault F122 (Precharge Fault) combined with blank HIM: When the HIM goes dark and the drive won’t precharge, the control board has lost its boot sequence. Do not keep cycling power — you risk damaging the gate driver board downstream.
• Intermittent F007 (Motor Overload) with no load change: A degraded control board can misread current feedback signals. Verify with a clamp meter before condemning the motor or inverter section.

Step-by-Step Replacement Procedure:

1. Isolate & Lock Out: Full LOTO on the drive. Verify DC bus voltage is below 50 V with a calibrated meter before touching anything — capacitors hold charge for up to 5 minutes after power-off.
2. Document the existing board: Photograph the hardware revision label, firmware sticker, and all wiring connections. Note DIP switch positions if present (some PowerFlex 700S boards have address switches for multi-drive configurations).
3. DIP Switch / Address Configuration: The 80190-240-02-R does not use physical DIP switches for node addressing on standard DeviceNet/EtherNet builds — addressing is software-configured via the HIM or DriveExecutive. However, if your drive uses a separate comms option card (e.g., 20-COMM-E), verify that card’s rotary switches are set correctly and are not disturbed during the swap.
4. Remove the old board: Disconnect the ribbon cable to the HIM port first, then the main backplane connector. Use an ESD wrist strap — this board is sensitive to static discharge.
5. Seat the new board: Align the backplane connector carefully. A misaligned pin will cause immediate F081 or a dead HIM on first power-up.
6. Firmware Check: Power up with the HIM connected. The board will display its firmware version on boot. If the version differs from your previous board by more than one minor revision, test all parameter functions before returning to production. Major version mismatches (e.g., v4.x vs v6.x) require a full parameter re-validation.
7. Parameter Restore: Upload your saved parameter file. If no backup exists, manually re-enter critical parameters: motor nameplate data, speed references, accel/decel ramps, and any custom fault responses.
8. Test Run: Run the drive unloaded first. Verify output frequency, current feedback, and fault log is clear before reconnecting the load.

Pro tip: Always order a spare board when you replace one. The next failure won’t wait for a purchase order.

Reliability in Harsh Conditions

Industrial environments don’t forgive weak components. The 80190-240-02-R is engineered to operate where lesser boards fail.

• Thermal Endurance: Rated for continuous operation across a wide ambient temperature range. The board’s conformal coating protects solder joints and traces from thermal cycling stress — the kind that cracks uncoated boards after 18 months in a steel mill or foundry.
• Vibration Resistance: Designed to IEC 60068-2-6 vibration test standards. Mounting points are reinforced, and critical components are secured against resonance-induced fatigue. We’ve seen these boards outlast the drives they’re installed in on paper mill lines running 24/7.
• Humidity & Condensation: The conformal coating provides protection against moisture ingress — critical in coastal facilities, food processing plants, and outdoor enclosures where humidity swings are routine. This is not a consumer-grade PCB; it’s built for IP54-rated enclosure environments.
• EMI Immunity: Designed to coexist with the high-frequency switching noise inherent in VFD operation. Proper grounding of the drive chassis remains essential, but the board’s filtering architecture handles the baseline EMI environment of a typical industrial panel.
• ESD Protection: All I/O interfaces include transient voltage suppression. A static discharge from an ungrounded technician won’t take out a properly handled board — but we still recommend ESD precautions during installation.

Global Express Logistics

Downtime doesn’t respect time zones. Our Xiamen warehouse operates on a same-day dispatch model for orders confirmed before 15:00 CST.

• DHL Express Worldwide: Xiamen to most major industrial hubs in Southeast Asia, Europe, and the Americas in 2–4 business days. Real-time tracking from the moment the label prints.
• FedEx International Priority: Available for North American and European destinations where FedEx has stronger last-mile coverage. Typical transit: 3–5 business days door-to-door.
• Export Documentation: We handle commercial invoices, packing lists, and HS code classification (HS 8537.10 for control boards). For customers requiring a Certificate of Conformance or test report, request at time of order — we prepare it before dispatch, not after.
• Customs Clearance: We declare goods accurately and at full value. We do not under-declare. This protects you from customs holds that would defeat the entire purpose of express shipping.
• Packaging: Anti-static bag, foam-lined rigid box, humidity indicator card. The board arrives in the same condition it left our warehouse — not rattling around in a bubble mailer.
• Emergency Freight: For critical shutdowns where 48-hour delivery is non-negotiable, contact us directly on WhatsApp for charter freight options and airport-to-airport arrangements.
