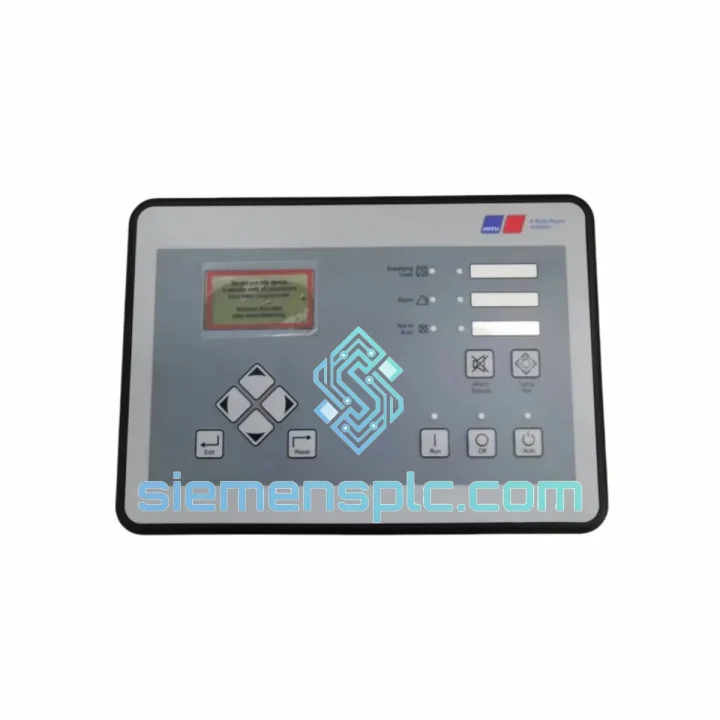

BASLER DGC-2020HD MGC-3020 X59434200300 Digital Genset Controller – DGC Series

BASLER DGC-2020HD MGC-3020 X59434200300 — Precision Generator Set Control in Closed-Loop Power Management

The BASLER DGC-2020HD (also designated MGC-3020, part number X59434200300) is a microprocessor-based digital genset controller designed for continuous-duty generator management in utility-grade and industrial standby power applications. Unlike relay-logic or analog-panel predecessors, the DGC-2020HD integrates metering, protection, sequencing, and communication into a single DIN-rail-compatible enclosure, reducing panel wiring complexity by an estimated 40% compared to discrete relay architectures.

The controller operates as the central arbitration node in an automatic mains failure (AMF) topology. It continuously monitors the utility bus voltage across all three phases at a sampling resolution sufficient to detect sub-cycle sags, and upon detecting a mains fault condition, it initiates the engine start sequence, monitors crank attempts, supervises warm-up timers, closes the generator contactor, and manages load transfer — all without operator intervention. Return-to-mains logic follows the same deterministic path in reverse, with configurable dead-band timers to prevent nuisance retransfer during unstable grid recovery.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Dual-Bus Voltage Sensing Architecture: The DGC-2020HD employs two independent voltage sensing channels — one dedicated to the generator output bus and one to the utility mains bus. Each channel feeds a separate analog front-end with galvanic isolation via precision voltage transformers rated to withstand 2,500 V AC dielectric test. This isolation prevents a fault on the mains bus from corrupting generator measurement data, which is a critical design requirement in AMF applications where the controller must make transfer decisions during mains fault conditions.

EMC Design and Conducted Noise Immunity: The controller’s PCB layout follows IEC 61000-4 series immunity requirements. Differential-mode and common-mode filters are placed at each analog input terminal block to suppress conducted interference from engine ignition systems, which typically generate burst transients in the 1–5 kV range at nanosecond rise times. The RS-485 transceiver is protected by a TVS diode array rated at ±15 kV ESD, ensuring communication integrity in environments with frequent electrostatic discharge events.

Crank Sequence State Machine: Engine start logic is implemented as a deterministic finite-state machine with configurable parameters: number of crank attempts (1–9), crank duration per attempt (1–30 s), rest interval between attempts (1–60 s), and warm-up timer (0–999 s). If all crank attempts are exhausted without a successful start — detected by generator frequency exceeding the configurable crank disconnect threshold (typically 15 Hz) — the controller asserts a “Fail to Start” alarm output and locks out further crank attempts until manually reset. This prevents starter motor damage from continuous cranking.

Protection Relay Logic: The DGC-2020HD implements over/under voltage, over/under frequency, reverse power, and overcurrent protection functions with independently configurable pickup thresholds and time delays. Protection functions operate on a dedicated interrupt-driven execution path with a scan cycle of less than 10 ms, ensuring that fault detection latency does not exceed one half-cycle of the generator output waveform at 50 Hz. This is particularly relevant for protecting sensitive loads from sustained overvoltage conditions.

Non-Volatile Parameter Storage: All user-configurable setpoints, timer values, and I/O assignments are stored in EEPROM with a write endurance of 1,000,000 cycles. A checksum validation routine executes at power-up to verify parameter integrity; if corruption is detected, the controller reverts to factory defaults and asserts a configuration fault alarm, preventing operation with undefined protection thresholds.

System Integration Benefits

• Deterministic AMF Transfer Timing: Configurable dead-band timers (0–999 s) for both mains failure and mains return events allow engineers to tune transfer timing to match load sensitivity requirements, preventing nuisance transfers during momentary grid disturbances.
• Modbus RTU SCADA Integration: The RS-485 port exposes over 200 Modbus registers covering real-time metering, alarm status, event log, and remote control functions. This enables full supervisory integration with SCADA platforms (Ignition, WinCC, iFIX) without additional protocol converters.
• Configurable I/O Mapping: All 12 digital inputs and 8 relay outputs are software-assignable to over 40 predefined functions, eliminating the need for external relay logic panels and reducing panel wiring labor by an estimated 35–50% on typical installations.
• Event Log with Timestamp: An internal event log stores the last 99 events with date/time stamps (RTC-backed with battery), providing post-fault analysis capability without requiring an external data logger.
• Dual Generator / Mains Metering: Simultaneous metering of both generator and mains bus parameters (V, A, Hz, kW, kVAR, kVA, PF) on a single display eliminates the need for separate panel meters, reducing BOM cost and panel real estate.
• Configurable Protection Thresholds: Over 60 independently adjustable protection setpoints allow the controller to be precisely matched to the generator set’s nameplate ratings and the load’s tolerance limits, avoiding both nuisance trips and under-protection conditions.
• PC-Based Configuration Software: BASLER’s DGC-2020 configuration software (Windows-compatible) allows offline parameter editing, configuration file archiving, and firmware updates via the RS-485 port, supporting standardized commissioning workflows across multi-site installations.
• Wide DC Supply Range: The 8–35 V DC control supply range accommodates both 12 V and 24 V battery systems without hardware modification, simplifying procurement for fleets with mixed battery standards.
• Parallel Generator Support: The HD variant includes load sharing and synchronizing outputs compatible with BASLER’s AEA series automatic excitation adjusters, enabling parallel generator operation with reactive load sharing without external synchronizing relays.

Quality Assurance & Global Logistics

Every BASLER DGC-2020HD MGC-3020 X59434200300 unit supplied by siemensplc.com is sourced through authenticated distribution channels with full part number traceability. Units are inspected against the following criteria prior to dispatch: OEM label integrity, housing condition, terminal block completeness, firmware version marking, and packaging seal status. No refurbished, relabeled, or counterfeit units are handled. A written authenticity declaration is available upon request for qualified buyers.

Logistics operations are based in Xiamen, China, with access to major international freight carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. In-stock units are dispatched within 1–2 business days of payment confirmation. Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10) — is prepared as standard for all international shipments. Bulk order consolidation via sea freight (FCL/LCL) is available for orders exceeding 10 units. All units are packed in anti-static bags with moisture barrier film and shock-absorbing foam inserts rated for ISTA 2A transit testing.

A 12-month warranty from the date of shipment covers manufacturing defects and confirmed DOA (Dead on Arrival) units. Warranty claims are processed with a target response time of 48 business hours. Replacement units are dispatched from Xiamen stock upon claim approval.
