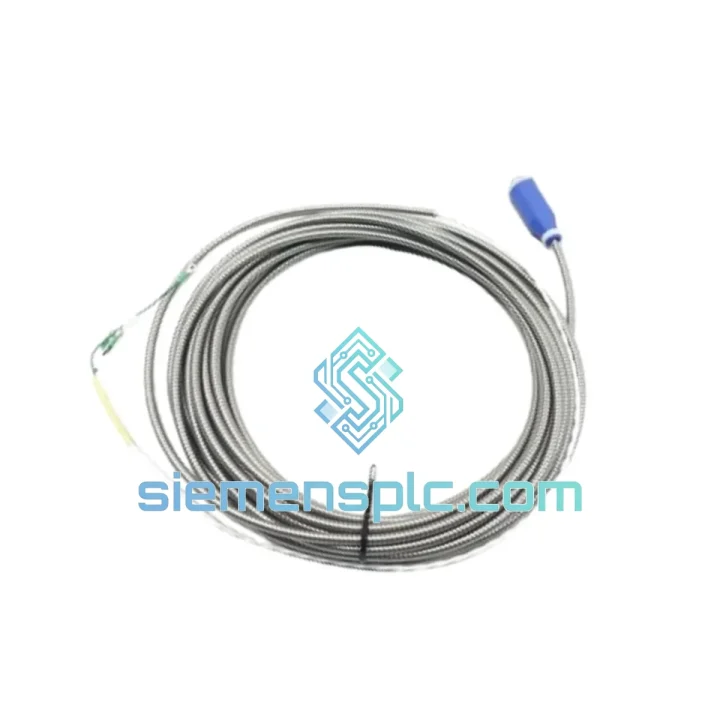

Bently Nevada 106765-4 Interconnect Cable

Bently Nevada 106765-4 — Stop the Clock on Your Downtime. Ship Today.

Every hour a turbine or compressor train sits idle costs real money — production losses, contractual penalties, and the kind of pressure that makes a 3 AM phone call feel routine. The Bently Nevada 106765-4 Interconnect Cable is the internal backbone of your 3500 Series rack. When it fails or shows intermittent signal faults, the entire protection system goes blind. We stock this part in Xiamen and can have it moving toward your site within hours of order confirmation.

This is not a grey-market substitute. Every unit we ship is sourced through verified industrial surplus and authorized distribution channels, inspected against OEM dimensional and electrical tolerances, and packed for transit integrity. If your plant is down, this is the call you make.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 106765-4 sits between rack modules and carries both power distribution signals and inter-module communication. Field experience shows three failure modes that account for the majority of cable-related 3500 rack faults:

1. Intermittent OK/Not OK relay chatter
If your 3500/42M or 3500/40M monitor is cycling between OK and Not OK with no corresponding change in vibration amplitude, suspect the interconnect cable before condemning the monitor card. Reseat the cable first. If the fault clears temporarily and returns within hours, the cable’s internal conductors have likely developed micro-fractures from vibration fatigue — replace it.

2. Loss of communication to 3500/92 gateway
The 3500/92 Communication Gateway relies on the interconnect cable for its Modbus/TCP or RS-232 data path back to the DCS. A degraded cable will produce sporadic Comm Fault alarms at the DCS level that look like a network issue. Before chasing Ethernet switches or gateway firmware, swap the interconnect cable — it takes under 10 minutes with the rack powered down.

3. Power supply ripple faults on 3500/15
The 3500/15 Power Supply distributes regulated DC across the rack via the interconnect cable. A high-resistance connection in the cable can cause voltage sag under load, triggering PWR fault LEDs on multiple cards simultaneously. Measure resistance across the power conductors with a milliohm meter. Anything above 0.5 Ω on a short rack cable is a red flag.

Replacement procedure notes:

• Power down the rack at the 3500/15 before disconnecting. Do not hot-swap interconnect cables — the bus is not designed for live insertion.
• Document the existing cable routing before removal. The 106765-4 has a defined bend radius; forcing it into a tighter path will stress the conductors at the connector boot.
• After installation, perform a full rack self-test via the 3500/92 or Rack Configuration Software (RCS) before returning the system to service. Verify all monitor channels report valid OK status.
• No firmware changes or address switches are required for this cable — it is a passive wiring component. However, if you are replacing a cable that failed due to a rack reconfiguration (e.g., adding a new monitor card), verify the rack configuration file in RCS matches the physical slot population before re-enabling protection.
• Log the replacement in your CMMS with the part number, serial number if present, and date. API 670 audits will ask for this record.

Reliability in Harsh Conditions

The 3500 Series is deployed in some of the most punishing industrial environments on the planet — offshore platforms in the North Sea, gas compression stations in the Middle East, and petrochemical complexes in Southeast Asia. The 106765-4 is built to survive alongside the equipment it monitors.

The cable’s full foil-plus-braid shielding provides attenuation against the high-frequency EMI generated by variable-frequency drives, large motor starters, and welding equipment operating in the same electrical zone. In environments where ambient temperatures swing from sub-zero winter shutdowns to summer heat-soak conditions exceeding 60°C, the cable’s insulation system maintains dielectric integrity across the full -20°C to +70°C operating range.

Vibration is the primary mechanical stressor for any cable in a rotating machinery protection rack. The 106765-4’s connector boots and strain relief geometry are designed to distribute flex stress away from the solder joints and conductor terminations — the points where cheaper cables fail first. Units sourced through our channel are inspected for boot integrity, connector pin seating, and jacket condition before dispatch. Any unit showing abrasion, kinking, or connector damage is rejected.

Humidity and condensation are managed through the cable’s sealed connector interfaces. In tropical or coastal installations where relative humidity regularly exceeds 90%, the OEM connector design prevents moisture ingress that would otherwise cause leakage currents and false alarm conditions on sensitive vibration channels.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateway facilities. When your plant is down, logistics speed is not a secondary concern.

Standard export process:

• Order confirmation to dispatch: 1–2 business days. Payment confirmation triggers immediate pick, inspect, and pack. No waiting on procurement cycles.
• DHL Express Worldwide: Xiamen to major industrial hubs — Houston, Rotterdam, Singapore, Dubai, Mumbai — typically 2–4 business days door-to-door.
• FedEx International Priority: Available as an alternative carrier for destinations where FedEx has stronger last-mile coverage. Transit times comparable to DHL.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day as dispatch. HS code 8544.42 (insulated electric conductors) applied for customs clearance. We can provide a certificate of conformance upon request.
• Tracking: AWB number sent via email and WhatsApp immediately upon carrier pickup. Real-time tracking link provided.
• Emergency freight: For genuine plant-down situations, contact us directly on WhatsApp. We can arrange same-day dispatch for orders confirmed before 14:00 CST and coordinate with your freight forwarder if you have a preferred carrier account.

We have shipped to over 40 countries. Customs clearance delays are rare for properly documented industrial spare parts, but we advise buyers in countries with complex import regimes (Brazil, India, Nigeria) to contact us in advance so we can prepare the correct documentation set.
