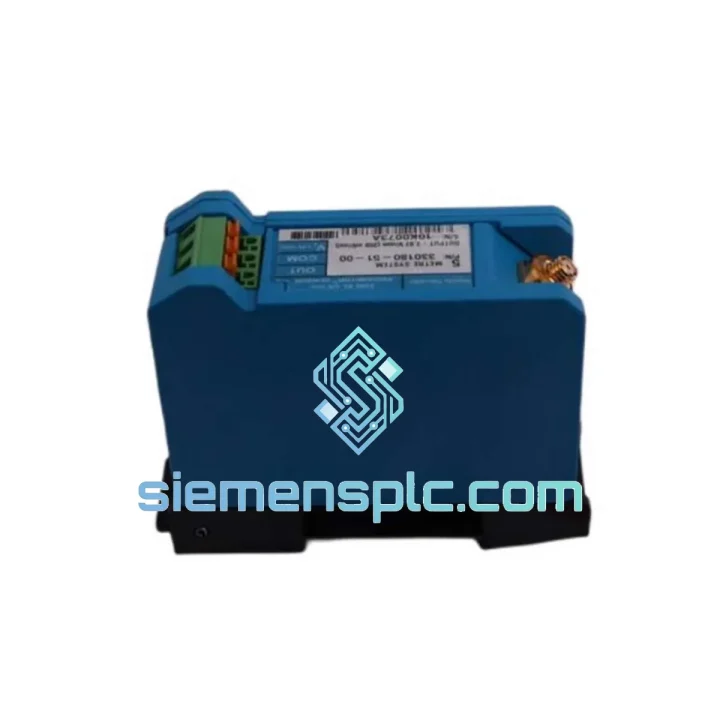

Bently Nevada 991-25-50-01-00 Thrust Transmitter – 3500 Series

Bently Nevada 991-25-50-01-00 Proximitor Thrust Transmitter — Axial Displacement Monitoring in Rotating Machinery Protection Loops

The Bently Nevada 991-25-50-01-00 is a factory-calibrated Proximitor extension cable and transmitter assembly engineered for continuous axial shaft displacement measurement within the Bently Nevada 3500 Series Machinery Protection System. Deployed across steam turbines, centrifugal compressors, boiler feed pumps, and gearbox trains, this assembly forms the signal-conditioning bridge between an eddy-current proximity probe and the 3500/42M monitor module, converting raw gap-voltage signals into a conditioned 4–20 mA analog output with deterministic linearity across the full operating envelope.

Unlike generic transmitter assemblies, the 991-25-50-01-00 is factory-matched to Bently Nevada 3300 XL 8 mm and 11 mm eddy-current probe systems. The suffix structure encodes critical dimensional and electrical parameters: 991 denotes the Proximitor series, 25 specifies the probe diameter compatibility group, 50 defines the 5.0 m extension cable length, and 01-00 identifies the connector and termination variant. This part-number discipline eliminates field ambiguity and ensures plug-and-play compatibility with existing 3500 rack wiring without re-termination or re-calibration.

In axial thrust monitoring applications, the transmitter assembly is mounted at the probe driver location, typically within the bearing housing pedestal or a dedicated junction box rated for the process environment. The Proximitor converts the eddy-current probe’s gap-voltage (nominally –10 VDC to –18 VDC at the operating gap) into a linear 4–20 mA signal representing the full-scale axial displacement range defined during system commissioning. This signal feeds directly into the 3500/42M monitor, which applies alert and danger setpoints, executes relay logic, and transmits data to the plant DCS or historian via the rack’s communication backplane.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 991-25-50-01-00 operates on the eddy-current (inductive) sensing principle. The proximity probe generates a high-frequency oscillating magnetic field (typically 200 kHz carrier) that induces eddy currents in the conductive target shaft surface. As the air gap between probe tip and shaft face changes due to axial thrust movement, the impedance loading on the oscillator circuit shifts proportionally, producing a gap-voltage variation of approximately 7.87 V/mm (200 mV/mil) sensitivity across the linear range.

The Proximitor electronics within the 991-series housing perform three critical signal-conditioning functions. First, the oscillator driver maintains a stable carrier frequency independent of cable capacitance variations introduced by the 5.0 m extension cable — a non-trivial requirement given that cable capacitance directly affects the Q-factor of the resonant tank circuit. The factory-matched cable length (suffix -50) ensures the Proximitor’s internal compensation network is pre-tuned to the correct capacitive load, preserving linearity within ±0.5% of full scale across the operating temperature range.

Second, the demodulator stage extracts the DC gap-voltage component from the modulated carrier, applying temperature-compensated gain to maintain output accuracy across the –40 °C to +85 °C envelope. Third, the output driver converts the demodulated gap-voltage to the 4–20 mA current loop, providing inherent noise immunity for signal transmission over long cable runs to the 3500/42M monitor input card — a significant advantage in high-EMI environments such as turbine halls where variable-frequency drives and high-current bus bars generate broadband electromagnetic interference.

The MIL-spec bayonet connector with gold-plated contacts addresses a common failure mode in industrial proximity systems: contact oxidation and fretting corrosion at the probe-to-extension-cable interface. Gold plating maintains contact resistance below 10 mΩ over the service life, preventing the signal offset errors that arise from resistive junction voltages in the probe circuit. The IP67 mated-connector rating ensures the assembly withstands wash-down procedures and condensation ingress in outdoor or partially enclosed machinery enclosures.

EMC design within the Proximitor housing incorporates a multi-layer shielding architecture: the extension cable uses a double-braid shield with drain wire, terminated at the Proximitor housing ground stud, while the housing itself is die-cast aluminum with conductive gasket sealing at the cover interface. This construction achieves conducted and radiated emission compliance per EN 61326-1 Class A, and immunity per EN 61326-1 industrial environment criteria, including 10 V/m radiated immunity and ±4 kV EFT/burst immunity on signal lines.

System Integration Benefits

• Zero-recalibration installation: Factory-matched probe-Proximitor pairing means the 991-25-50-01-00 installs as a direct replacement in any 3500/42M slot without field calibration, reducing planned maintenance outage duration by eliminating the calibration verification step.
• Deterministic 4–20 mA output: The current-loop output is immune to voltage drop across long cable runs and ground potential differences between the machinery pedestal and the control room, ensuring the 3500/42M receives an accurate displacement signal regardless of plant grounding topology.
• SIL-capable architecture: The assembly supports Safety Integrity Level assessments for thrust protection loops in accordance with IEC 61511. The defined failure mode data (safe failure fraction, diagnostic coverage) enables integration into SIL 1 and SIL 2 safety instrumented functions without additional safety barriers.
• DCS/SCADA interoperability: The 4–20 mA output interfaces directly with analog input cards on Emerson DeltaV, Honeywell Experion PKS, ABB 800xA, and Yokogawa CENTUM VP without signal conditioning adapters, preserving the full 16-bit resolution of modern DCS analog input modules.
• Diagnostic transparency: When paired with the 3500/42M monitor, the assembly supports the monitor’s built-in transducer OK (TOK) channel health diagnostic. A gap-voltage outside the –10 V to –18 V window triggers a transducer not OK alarm, distinguishing probe failure from actual shaft displacement — a critical distinction that prevents spurious machinery trips.
• Redundant configuration support: Two 991-25-50-01-00 assemblies can be installed on opposing probe mounts at the same axial measurement plane, feeding dual channels of a 3500/42M in voting configuration (1oo2 or 2oo2), providing fault-tolerant thrust protection without additional hardware.
• Thermal stability across process extremes: The –40 °C to +85 °C operating range covers both arctic outdoor installations and high-ambient turbine enclosures without derating, maintaining output accuracy within ±1% of full scale across the full thermal envelope.
• Reduced spare-parts complexity: The standardized 991-series part-number structure allows a single spare assembly to cover multiple probe diameter groups when ordered with the correct suffix, simplifying the critical-spares inventory strategy for multi-train plant configurations.

Quality Assurance & Global Logistics

Every 991-25-50-01-00 unit supplied by siemensplc.com is sourced as genuine Bently Nevada (Baker Hughes) original equipment. Each assembly is individually inspected against a documented acceptance checklist covering connector contact integrity, cable shield continuity, housing ground stud torque, and label legibility. Functional verification confirms gap-voltage output within the specified –10 V to –18 V window at the nominal 1.0 mm operating gap using a calibrated reference target fixture.

Units are packaged in anti-static foam-lined cartons with desiccant sachets to prevent moisture ingress during ocean freight transit. Export documentation — including commercial invoice, packing list, certificate of conformance, and HS code declaration (HS 9031.80) — is prepared in-house to expedite customs clearance at destination ports. Shipments originate from our Xiamen, China warehouse, with DHL Express, FedEx International Priority, and UPS Worldwide Express available as carrier options. Typical transit times are 3–5 business days to Europe and North America, 2–4 business days to Southeast Asia, and 5–7 business days to the Middle East and South America.

A 12-month warranty covers manufacturing defects and premature component failure under normal operating conditions. Warranty claims are processed with a replacement-first policy: a replacement unit ships within 2 business days of claim approval, eliminating extended machinery downtime while the defective unit is returned for analysis. Batch and serial number traceability records are maintained for a minimum of 5 years, supporting plant audit and insurance documentation requirements.
