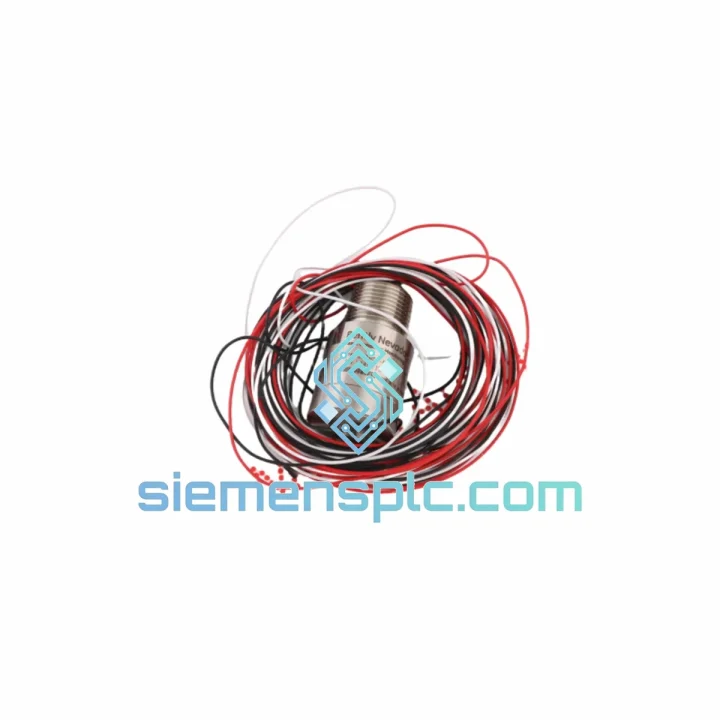

Bently Nevada 350800-01-180-00 Gas Sensor – 3500 Series

Bently Nevada 350800-01-180-00 — Catalytic Combustible Gas Sensor for 3500 Series Machinery Protection Systems

The Bently Nevada 350800-01-180-00 is a field-hardened catalytic bead gas sensor engineered for continuous combustible gas monitoring within the 3500 Series Machinery Protection architecture. Its primary function in the control loop is to provide a calibrated 4–20 mA analog signal proportional to the percentage of Lower Explosive Limit (LEL) present at the sensor head, feeding the 3500/62 Gas Monitor module for threshold comparison, alarm annunciation, and emergency shutdown relay actuation. Unlike generic industrial gas detectors, this unit is factory-matched to the 3500 rack’s signal conditioning chain, eliminating the impedance mismatch and span calibration errors that arise when third-party sensors are substituted.

The 180-foot (54.9 m) cable assembly encoded in the -180-00 suffix is a critical design parameter: it allows the sensor head to be positioned at the actual gas accumulation risk point — turbine enclosure low points, compressor seal areas, or heat exchanger bays — while the 3500 rack remains in a safe, climate-controlled instrument room. This physical separation is mandatory in many ATEX Zone 1 and NEC Class I Division 1 installations where rack-mounted electronics cannot be located within the hazardous boundary.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 350800-01-180-00 operates on the catalytic oxidation (pellistor) principle. The sensor element consists of two matched platinum wire coils embedded in alumina beads: an active element coated with a palladium/platinum catalyst, and a compensator element with an inert coating. Both are connected in a Wheatstone bridge configuration. When combustible gas diffuses through the sintered stainless steel flame arrestor and contacts the active bead, catalytic oxidation raises the bead temperature, increasing its electrical resistance. The bridge imbalance is converted to a millivolt signal, amplified, and linearized to produce the 4–20 mA output corresponding to 0–100% LEL.

EMC Design: The armored cable assembly provides continuous shield continuity from the sensor head to the rack termination, with drain wire grounded at a single point at the 3500/62 module to prevent ground loop currents. The sensor housing is constructed from 316L stainless steel, providing both corrosion resistance in H₂S-bearing atmospheres and effective shielding against radiated RF interference from nearby VFDs and radio transmitters — a common source of false alarms in catalytic sensor installations using unshielded cable.

Flame Arrestor Architecture: The sintered metal flame arrestor is rated to prevent internal ignition from propagating to the surrounding atmosphere, satisfying the IEC 60079-1 flameproof enclosure requirement. The arrestor pore geometry is sized for Group IIB+H₂ gases, providing the most conservative protection applicable to hydrogen-containing process streams.

Redundancy Arbitration: In dual-sensor 3500/62 configurations, the module performs 2oo2 (two-out-of-two) or 1oo2 voting logic on the two sensor inputs. The 350800-01-180-00’s tight factory calibration tolerance (±2% LEL full scale) ensures that both sensors in a redundant pair track within the module’s voting window, preventing nuisance trips caused by sensor drift divergence.

System Integration Benefits

• Zero-adapter rack compatibility: The sensor’s 4–20 mA output and loop impedance are factory-matched to the 3500/62 Gas Monitor input card, eliminating the need for signal conditioning barriers or impedance matching networks that introduce additional failure points.
• Deterministic alarm latency: The T90 response time of ≤ 30 seconds, combined with the 3500 rack’s 100 ms scan cycle, ensures that a gas event at the sensor head produces a confirmed alarm output within one scan cycle after the T90 window closes — a predictable, documentable response chain for SIL assessment.
• Integrated diagnostics: The 3500/62 module continuously monitors the sensor loop current. A current below 3.6 mA or above 21 mA triggers a sensor fault alarm, distinguishing a gas-free condition (4 mA) from a broken cable or failed sensor head — a diagnostic transparency not available with passive switch-type detectors.
• ESD interlock compatibility: The 3500 rack’s relay outputs, driven by the 350800-01-180-00 signal, can be wired directly into Safety Instrumented System (SIS) logic solvers without additional signal conversion, supporting IEC 61511 functional safety loop documentation.
• Multi-gas applicability: The catalytic bead principle responds to all combustible gases within the flammable range, including methane, propane, hydrogen, and mixed hydrocarbon streams — a single sensor type covers the majority of process gas hazard scenarios without sensor substitution.
• Reduced calibration burden: The sensor’s stable pellistor chemistry maintains span accuracy within ±5% LEL over a 12-month calibration interval under normal operating conditions, reducing the frequency of intrusive field calibration in live process areas.
• Long cable reach without signal degradation: The 180 ft cable length is within the 3500/62 module’s specified loop resistance budget. No external repeaters or signal boosters are required, simplifying the installation bill of materials and eliminating active components in the hazardous area field circuit.
• Unified data architecture: Via the 3500/20 Rack Interface Module, gas concentration data from the 350800-01-180-00 is available on the same Modbus/OPC-UA data bus as vibration, temperature, and position data from other 3500 modules — enabling unified asset health dashboards in PI System, AspenTech, or custom SCADA environments without separate gas monitoring software.

Quality Assurance & Global Logistics

Every Bently Nevada 350800-01-180-00 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol:

• OEM Part Number Verification: Label, date code, and part number cross-referenced against Bently Nevada / Baker Hughes published part number matrices to confirm authenticity and revision level.
• Physical Integrity Inspection: Sensor housing, cable jacket, connector pins, and flame arrestor condition inspected under controlled lighting. Units with mechanical damage, corrosion, or compromised seals are quarantined.
• Loop Current Functional Check: Where test equipment permits, the sensor is powered at 24 VDC and loop current verified at 4 mA (zero gas) baseline prior to packaging.
• Anti-static Packaging: Sensor head wrapped in conductive foam and sealed in anti-static poly bag; cable coiled to manufacturer’s minimum bend radius specification to prevent conductor fatigue.
• Traceability Documentation: Each shipment includes a condition report with inspection findings, sourcing channel notation, and unit serial number (where present). Available on request for quality records.

Logistics from Xiamen operate via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard transit times: 3–5 business days to Europe and North America; 2–4 business days to Southeast Asia and the Middle East. EXW, FOB Xiamen, and CIF destination Incoterms are all supported. Export documentation including commercial invoice, packing list, and certificate of origin is prepared for each shipment to facilitate customs clearance.
