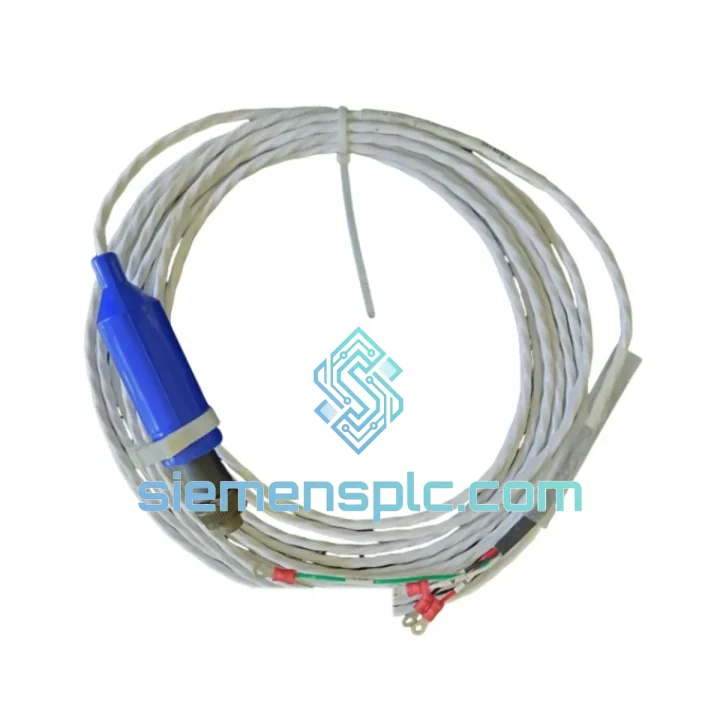

Bently Nevada 130539-06 Proximity Probe Cable

Bently Nevada 130539-06 — Stop the Clock on Your Downtime

Every minute a turbine, compressor, or critical rotating machine sits idle, you’re bleeding money. A failed interconnect cable in your Bently Nevada proximity probe system is one of the most deceptively simple faults that can halt an entire production line — and it’s one of the easiest to fix, if you have the right part on hand. The Bently Nevada 130539-06 is that part. We stock it in Xiamen, we ship it today, and it lands at your facility via DHL or FedEx express before your maintenance window closes.

This is not a generic cable. The 130539-06 is a factory-matched, coaxial interconnect cable engineered specifically for the Bently Nevada 3300 XL and 7200 Series proximity transducer systems. Its ~0.6 m length (the “-06” suffix denotes the length code) is precision-specified to maintain total system cable length integrity — a parameter that directly governs gap voltage calibration and sensitivity output. Swap in the wrong length, and your vibration readings drift. Swap in the right one, and you’re back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, I can tell you the 130539-06 fails in predictable ways. Here’s what to check before you pull the trigger on a replacement — and what to watch when you install the new one.

Common failure signatures:

• Gap voltage out of range (typically −10 VDC nominal): If your proximitor output reads outside the −18 V to −2 V window, the interconnect cable is the first suspect after the probe tip itself. Connector corrosion at the probe-end BNC is the #1 culprit in humid or offshore environments.
• Intermittent OK/NOT OK relay chatter: Vibration-induced micro-fractures in the coaxial shield cause signal dropout under mechanical load. Run the cable while flexing it gently — if the gap voltage fluctuates, the cable is cracked internally.
• Elevated noise floor on the 3500 monitor: A compromised cable shield allows EMI ingress. If your 1X/2X amplitude readings are noisy with no change in machine condition, suspect the interconnect before the proximitor.
• Sudden sensitivity shift: If sensitivity drops from the nominal −7.87 V/mm (200 mV/mil) without any probe gap change, check the cable continuity. An open center conductor reads as maximum gap (probe pulled away).

Replacement procedure — field checklist:

• De-energize the proximitor supply (typically −24 VDC). Do not hot-swap — transient voltages can damage the proximitor input stage.
• Record the existing gap voltage before disconnection. You’ll use this as your baseline after reinstallation.
• Verify the replacement cable suffix matches: -06 = ~0.6 m. Total system length (probe + interconnect + extension) must equal the proximitor’s rated length (5 m or 9 m). Deviating by even 0.3 m shifts calibration by ~0.5 V.
• Inspect both BNC connectors for pin straightness and dielectric integrity before mating. A bent center pin is a common installation error that causes immediate signal loss.
• After reconnection, re-energize and verify gap voltage returns to within ±0.5 V of the recorded baseline. If it doesn’t, re-check probe gap physically before condemning the new cable.
• For 3500 Series monitors: navigate to the channel configuration in System 1 and confirm the transducer type and cable length parameters match your installed assembly. Firmware does not auto-detect cable changes.
• No DIP switches or address settings are required for this cable — it is a passive component. All configuration lives in the proximitor and monitor.

Reliability in Harsh Conditions

The 130539-06 is not a data-center cable dressed up for industrial use. It was designed from the ground up for the environments where rotating machinery actually lives — and those environments are brutal.

The coaxial construction uses a low-loss dielectric that maintains consistent impedance from −35 °C arctic cold starts to +121 °C turbine enclosure heat. The outer jacket resists hydrocarbon exposure, cutting fluids, and steam condensate — the three fluids most likely to attack cable insulation in a compressor hall or power plant. The connector bodies are machined to tight tolerances so that vibration — the very phenomenon this cable is measuring — does not work the connectors loose over time.

In offshore and coastal installations, salt-laden air attacks connector contacts within months if the wrong cable is used. The 130539-06’s connector plating is specified to resist galvanic corrosion in marine-grade humidity. We’ve seen third-party cables fail within a single maintenance cycle in these conditions. The OEM part survives years.

For hazardous area installations — Zone 1/2, Division 1/2, Group IIC — ATEX and FM certified variants of this cable are available. Specify your area classification at the time of order and we will confirm the correct certified part number and supply the relevant documentation.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the country’s primary export hubs with direct DHL and FedEx gateway access. When you place an urgent order, here’s exactly what happens:

• Order confirmed before 3:00 PM CST: Same-day dispatch. Your tracking number arrives by end of business.
• DHL Express Worldwide: Xiamen → most European, Middle Eastern, and Southeast Asian destinations in 2–4 business days. North America typically 3–5 days.
• FedEx International Priority: Available for US, Canada, and select markets where FedEx has a speed advantage over DHL on specific lanes.
• Commercial invoice & packing list: Prepared to your specifications. HS Code 8544.42 (insulated electric conductors) is pre-declared for smooth customs clearance. We can provide a certificate of origin if your import duty regime requires it.
• Emergency freight: For genuine production-down situations, contact us directly on WhatsApp. We have access to next-flight-out courier options for critical shipments where standard express is not fast enough.

We’ve shipped to oil & gas facilities in the Middle East, power plants in Southeast Asia, and petrochemical complexes in Europe. The logistics process is documented and repeatable. Your procurement team will not be chasing paperwork.
